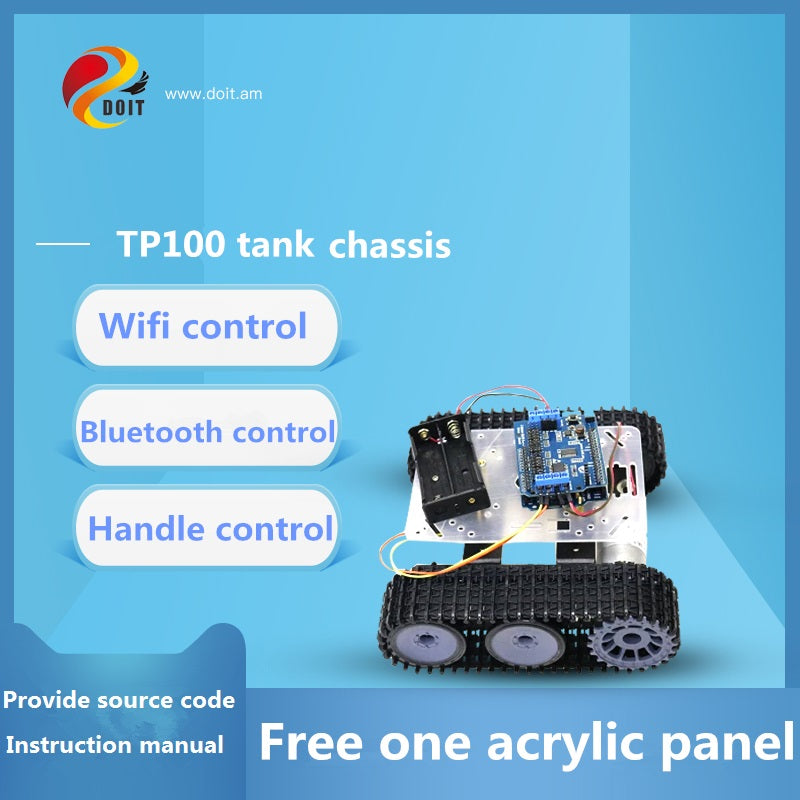

SZDOIT Wifi/Bluetooth/Handle Control Metal Mini TP100 Smart Tracked RC Tank Chassis Kit Motors DIY for Arduino ESPduino Control

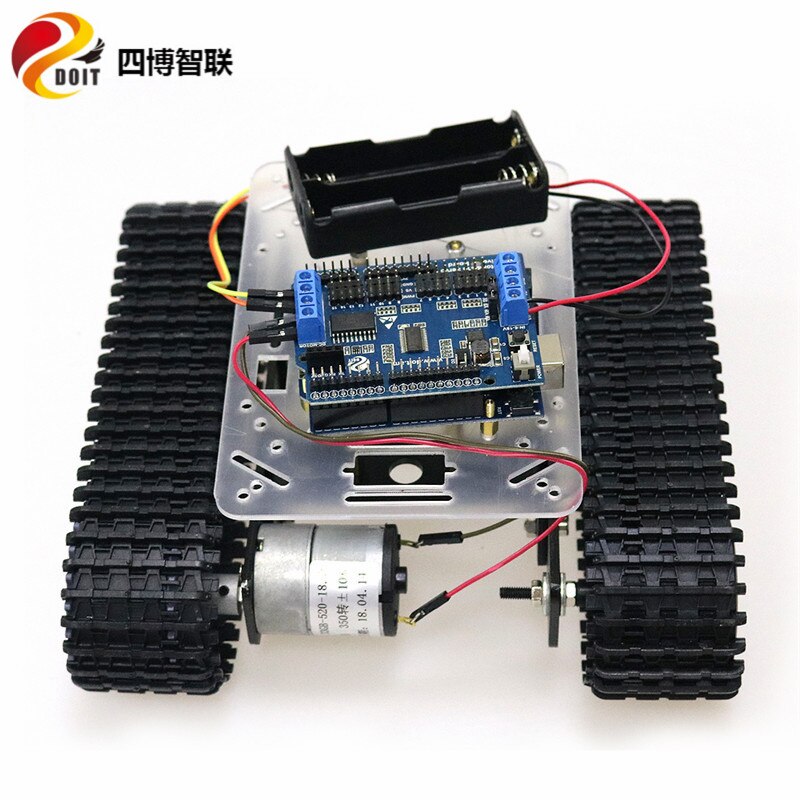

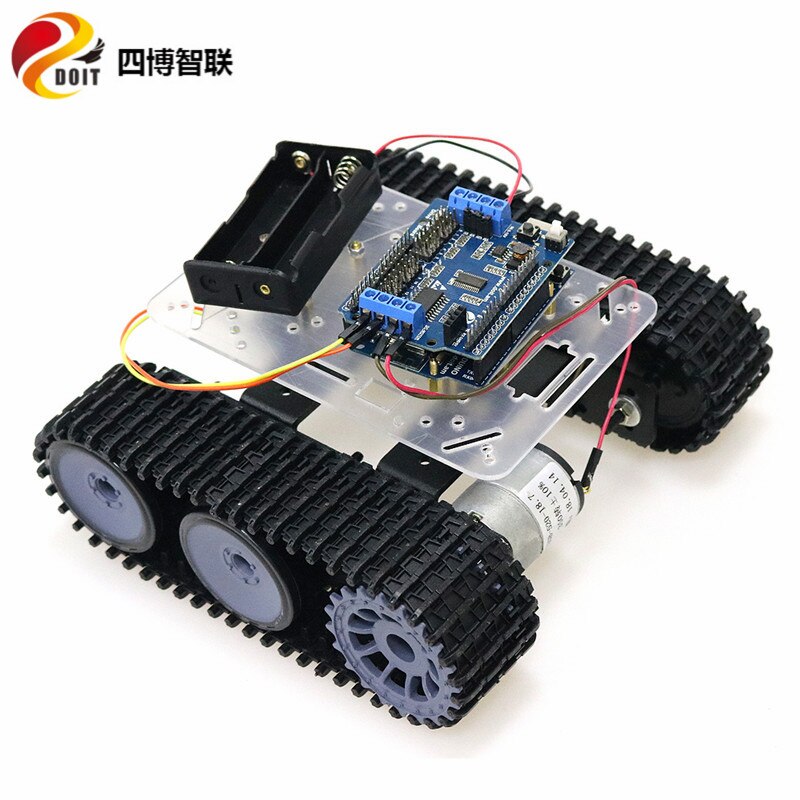

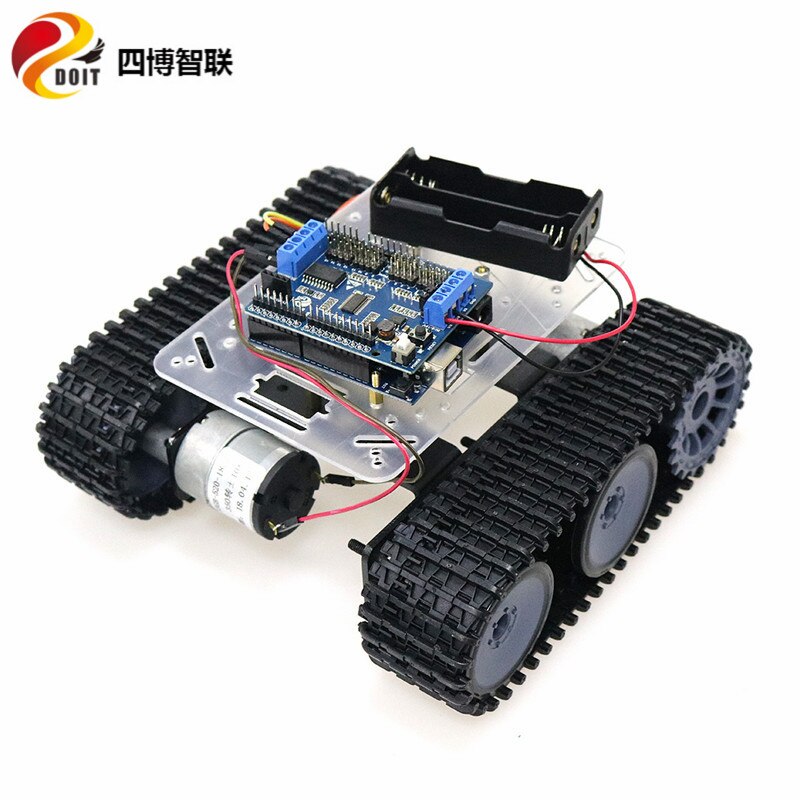

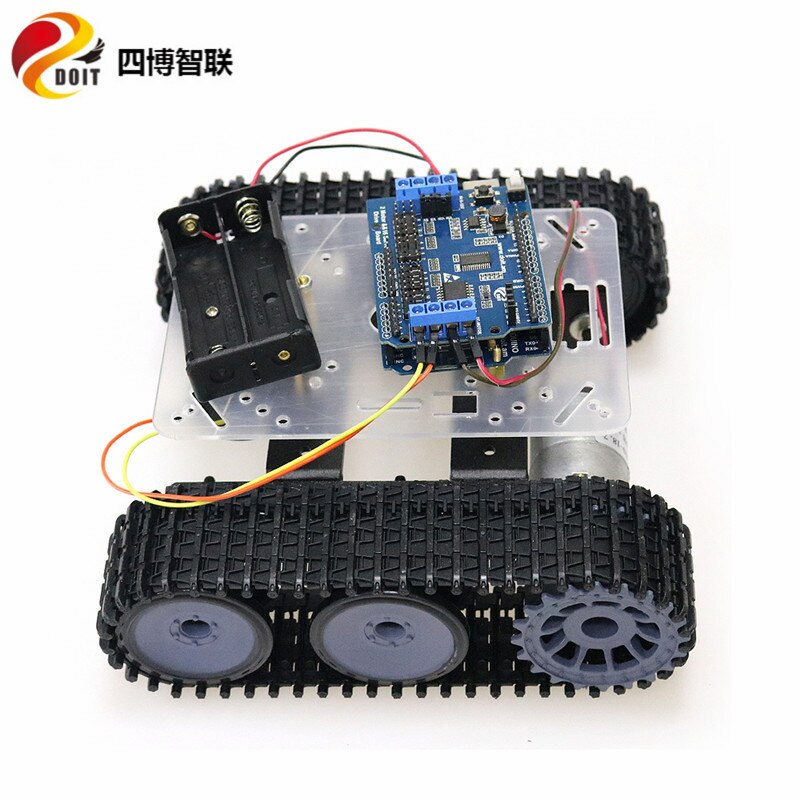

Tank chassis parameters:

• Model: mini TP100 smart tank chassis
• Weight: 600g
• Chassis material: aluminum alloy
• Surface: sandblasting oxidation
• Color: black
• Track: engineering plastics
• Wheel: plastic
• Size: about 185*200*60mm (length * width * height)
• Design load: 5KG
• Motor model: 33GB520

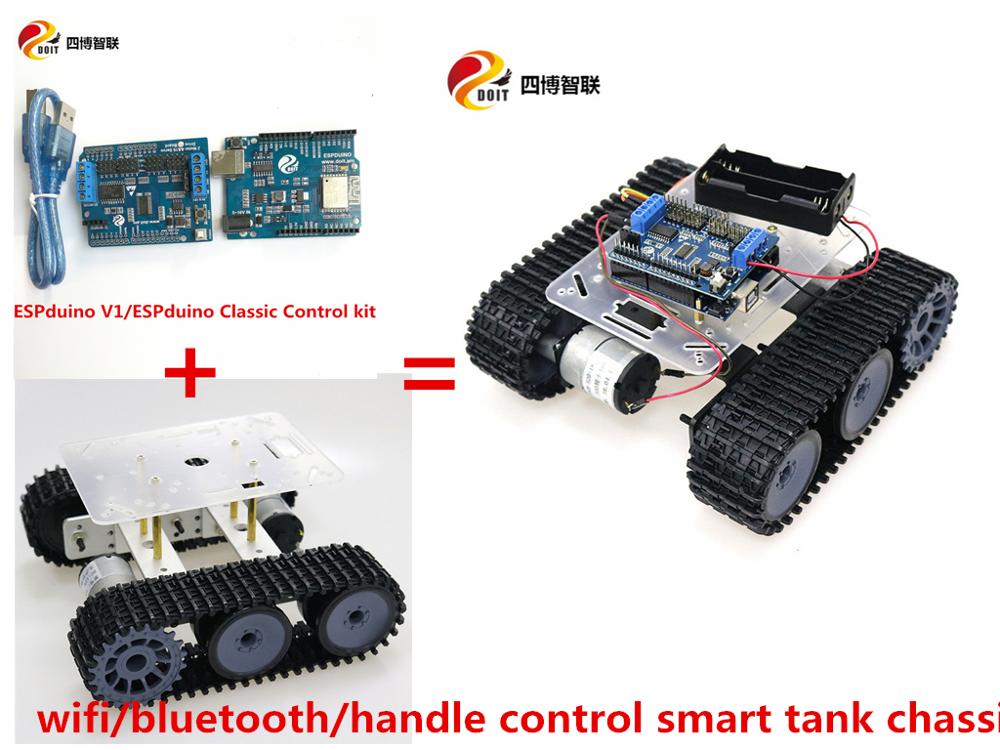

ESPduino control kit:

• This kit consists of ESPDuino development board and 2-way motor board + 16-way servo expansion board, which can be used to control tank/car chassis, robot arm, etc;
• ESPDuino is an Android UNO-compatible development board based on ESP826613, which supports WIFI;
• The 2-way motor board + 16-channel servo expansion board is a motor and servo drive module compatible with Android UNO and ESPDuino. The module adopts a stack-in circuit board design and can be directly connected to the Android UNO or ESPDuino circuit board.

The difference between the V1 version and the classic version is: the difference between the two 16-way driver boards: the position of the pins is different, and the corresponding procedures are different, which is not applicable to the handle kit. No other difference.

ESPduino classical kit supports wifi, bluetooth, and handle control.

Motor parameters:

• Voltage range: 6V-12V
• No-load speed: 170-350rpm
• Rated voltage: DC12V
• No-load current: 100mA
• Weight: 100g

Shipping list:

• 1 × tank chassis
• 2 × motor
• 1 × ESPduino control kit
• Free: Acrylic panel + 18650 battery box + hex wrench

Note:

• Product does not contain battery.
• In order to facilitate transportation, the product is not assembled. But it is very easy to install.
• More documents can be downloaded at wiki.doit.am.
