SZDOIT Wifi/Bluetooth/Handle Control TS300 Metal Crawler RC Robot Tank Chassis Kit 9V/12V Motor DIY For Arduino Unassembled Toy

TS300 tank chassis parameters:

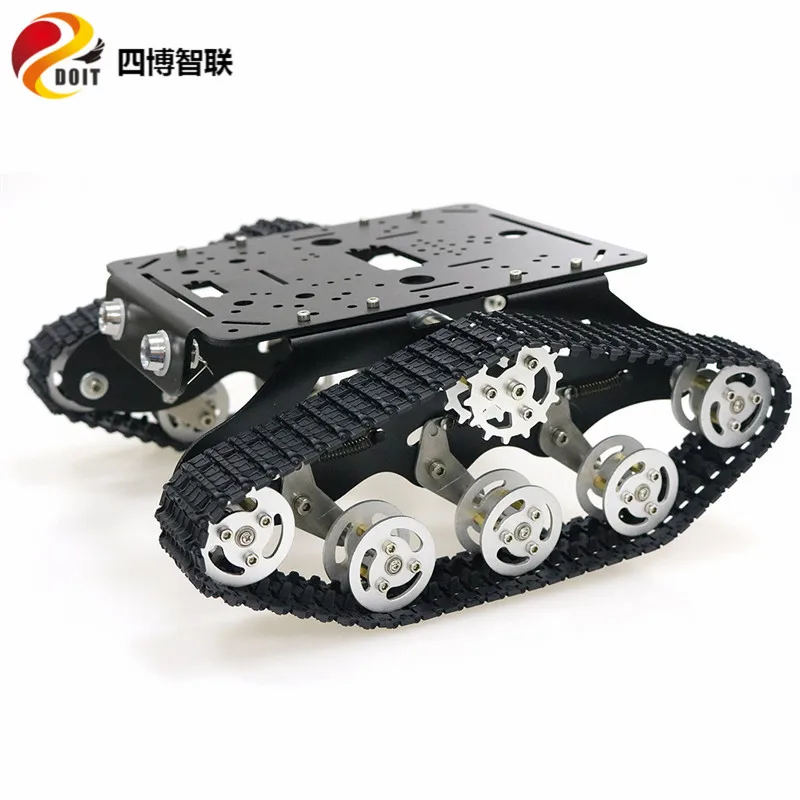

• Name: Shock absorption smart tank chassis
• Surface treatment: sandblasting oxidation
• Material: aluminum alloy
• Weight: 0.99kg
• Design load: 5kg
• Size: 26.9*25.8*11.1cm
• Wheel: aluminum alloy
• Track: engineering plastic, free to disassemble
• Independent shock absorbing system
• Color: gold / silver / black

Motor parameters:

9V 150rpm with encoder motor:

• Working voltage: 9V
• Output rate: 150±10% rpm
• Load current: 200mA (Max)
• Stall current: 4500 mA (max)
• Stalling torque: 9.5kg NaN
• Load speed: 100±10% rpm
• Load torque: 3000gNaN
• Load current: 1200mA (Max)
• Encode parameters: 2 pulses / circle
• Sensor operating voltage: 3-5V

12V 300rpm with encoder motor:

• Model: 25GA-310
• Voltage: 12V
• Speed: 300rpm
• No-load current: 220mA
• Load torque:  0.6kg.cm current 500mA
• Power: 1.6W
• Blocking torque: 2kg.cm current 2A
• Shaft diameter: 4mm
• Number of pulses: 300
• Single phase: 150

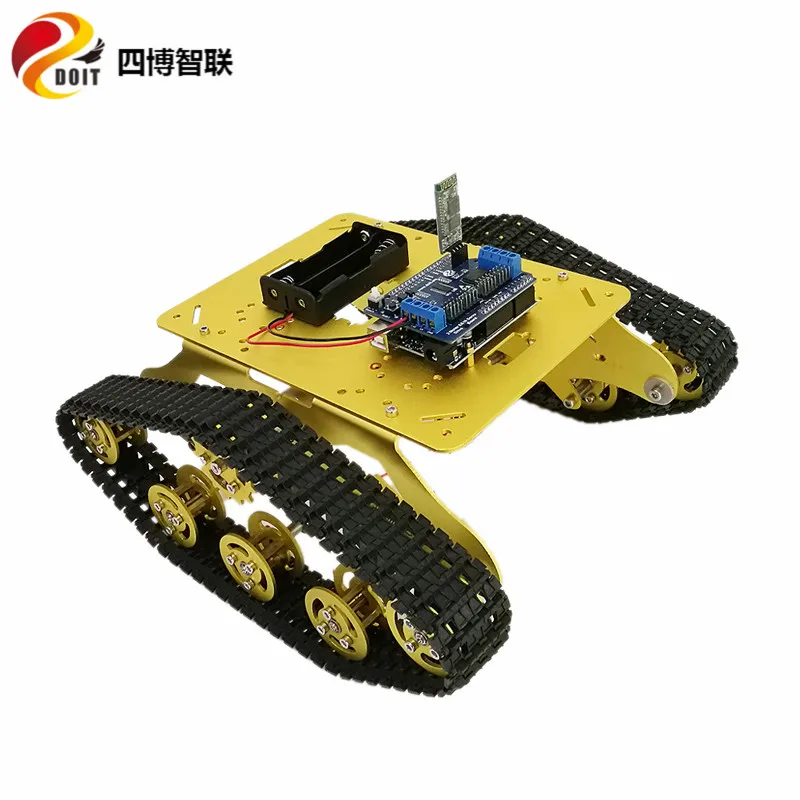

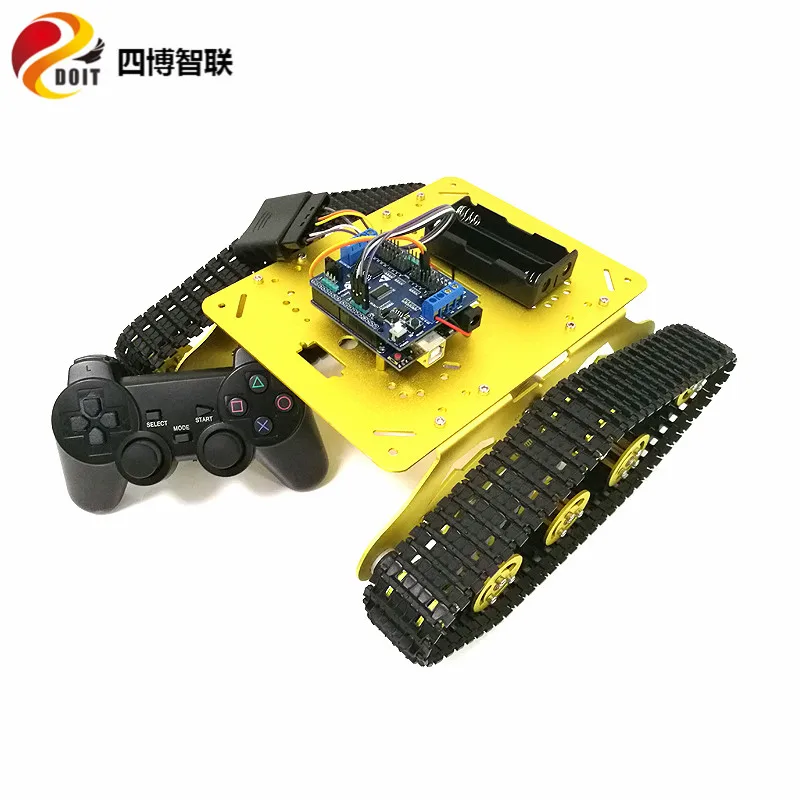

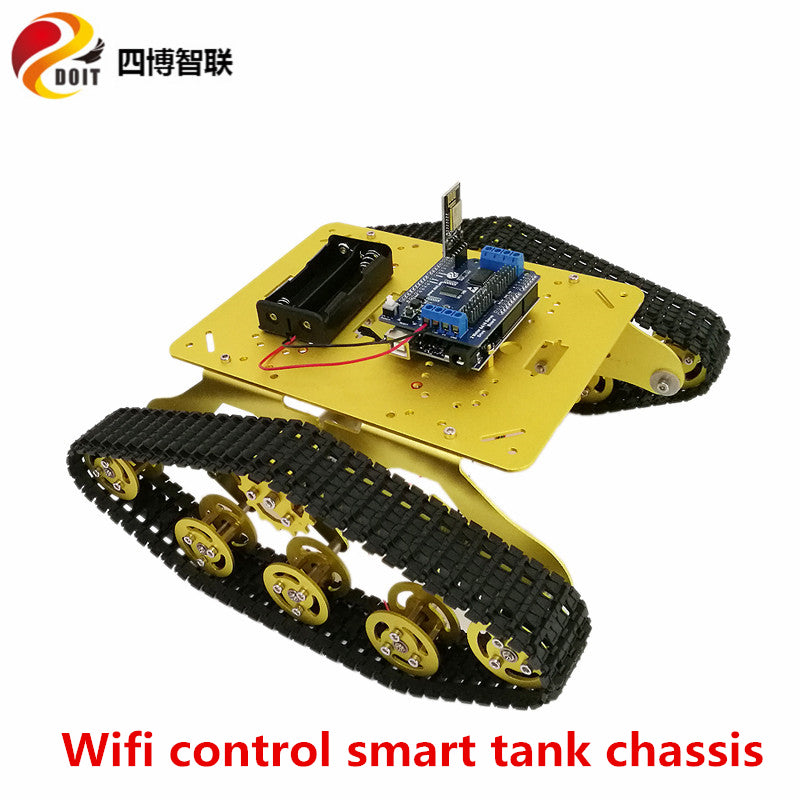

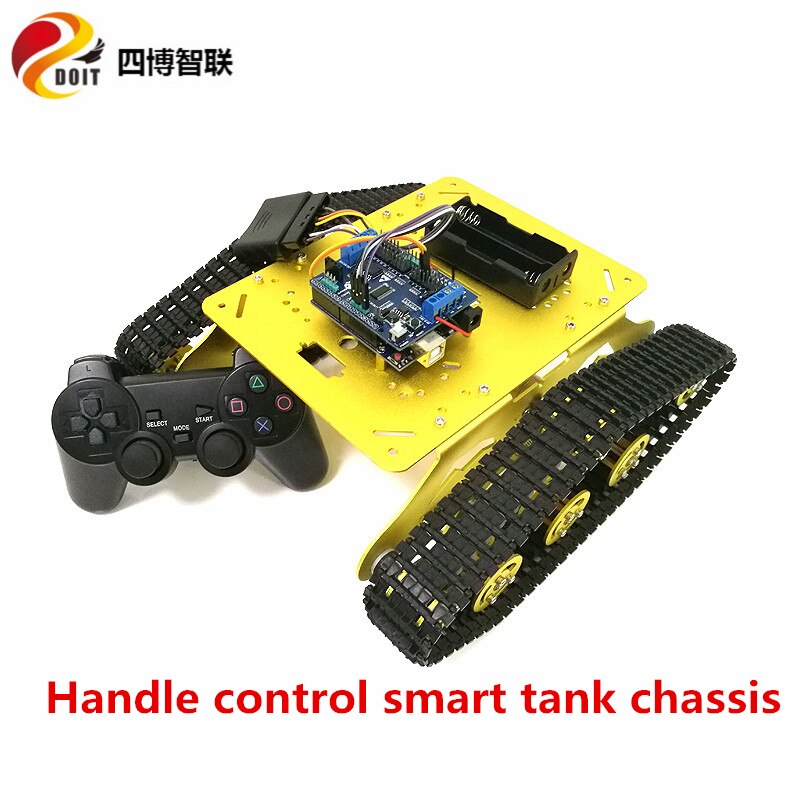

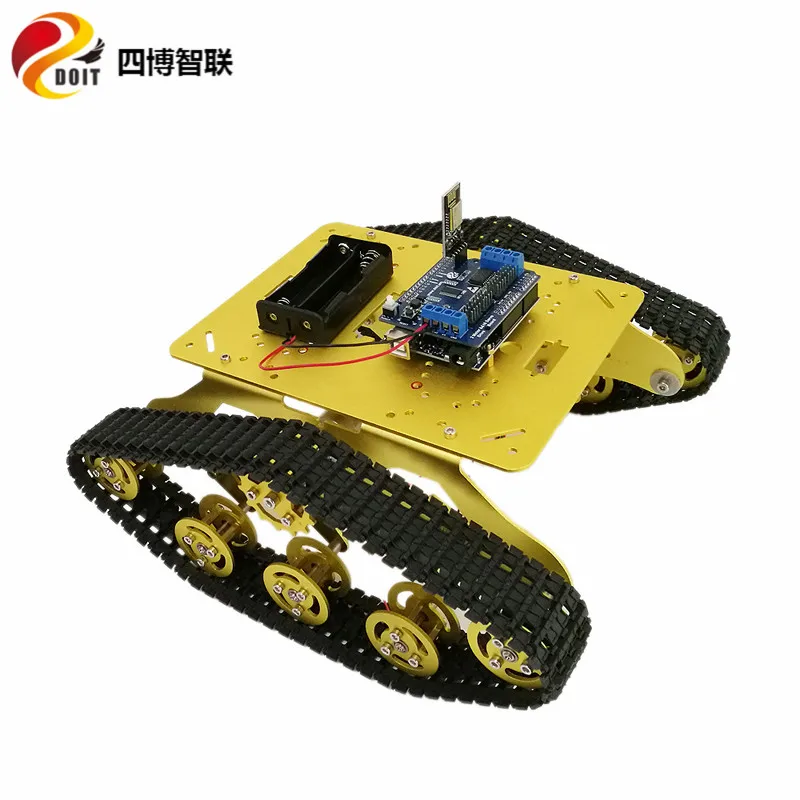

Control type:

Module pin description and schematic:

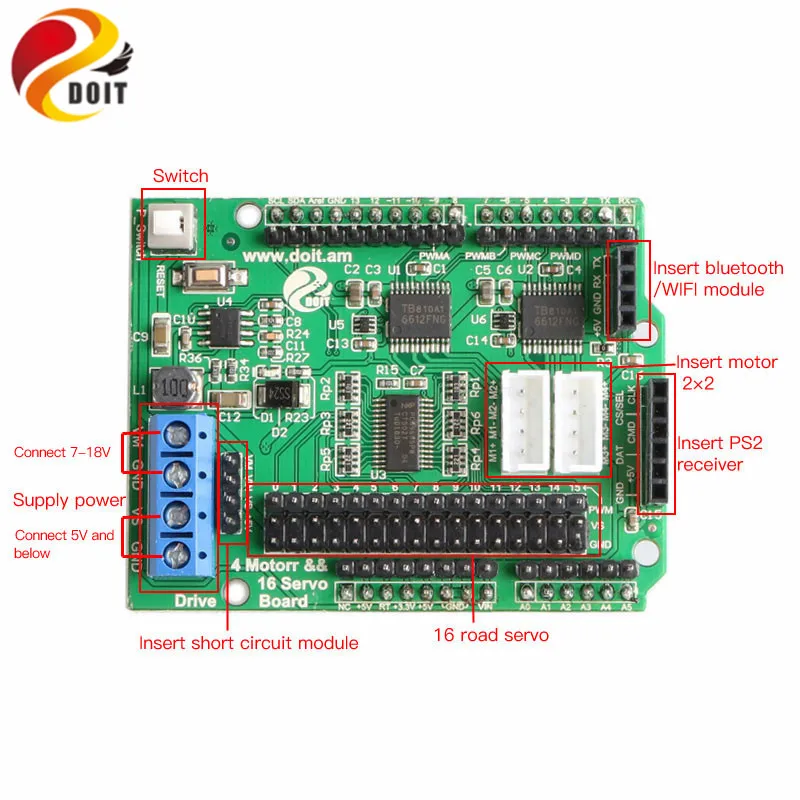

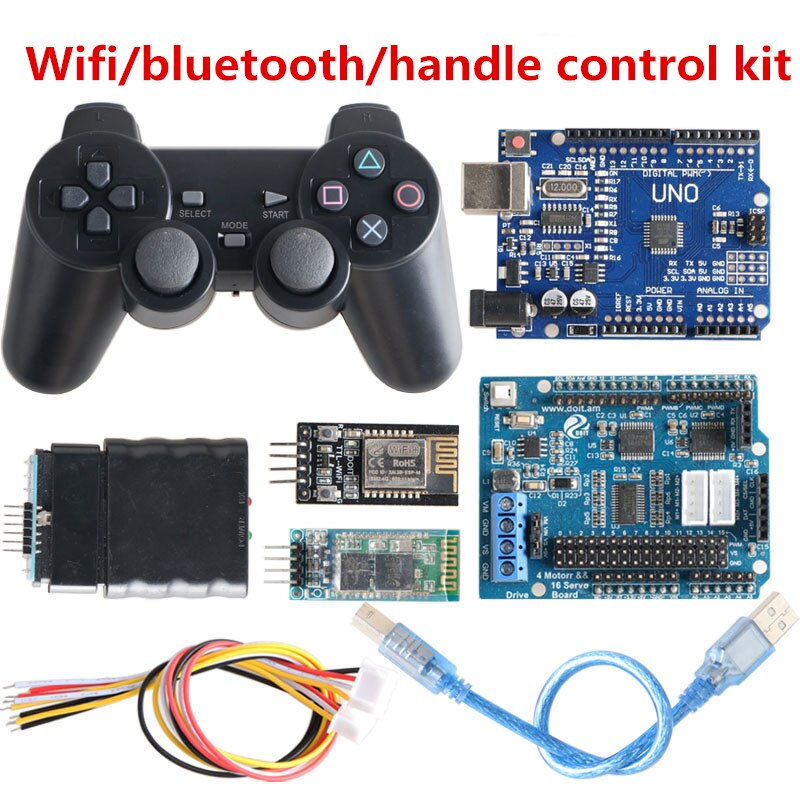

• 16-way steering gear & 4-way motor drive board, using TB6612 four-way drive, PCA9685 for 16-way servo control.
• Bring out the Arduino UNO I/O pin;
• The maximum input voltage of the power supply is 15V/DC;

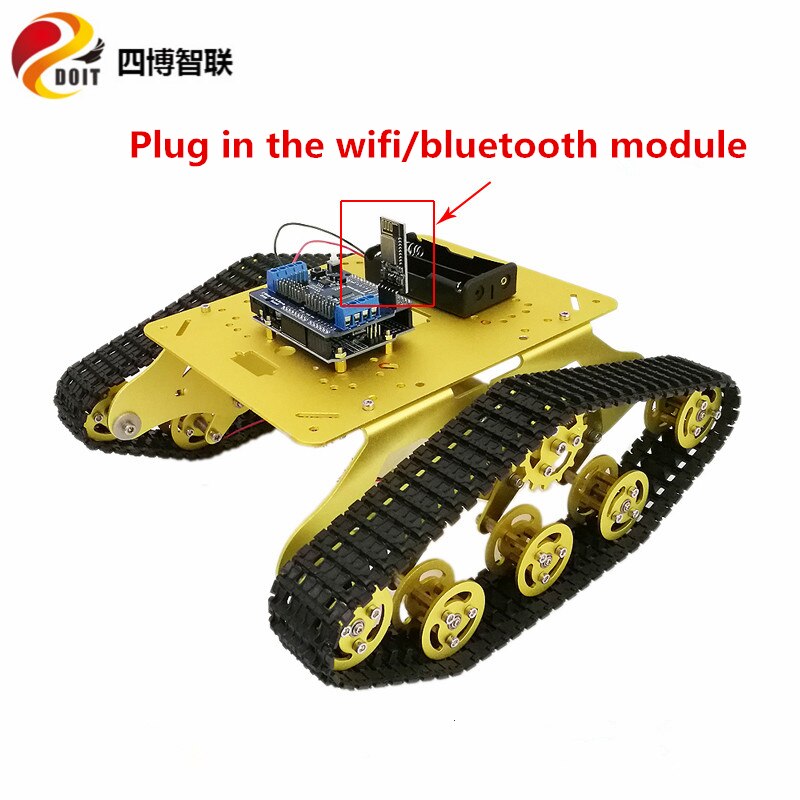

• Reserve Bluetooth & WIFI module sockets;
• Reserve PS2 handle socket;
• Four-way DC motor drive, single-channel maximum drive current 1.2A average / 3.2A peak;
• 16-way servo drive pin, power supply can be switched by external/internal power supply of jumper cap;

Shipping list:

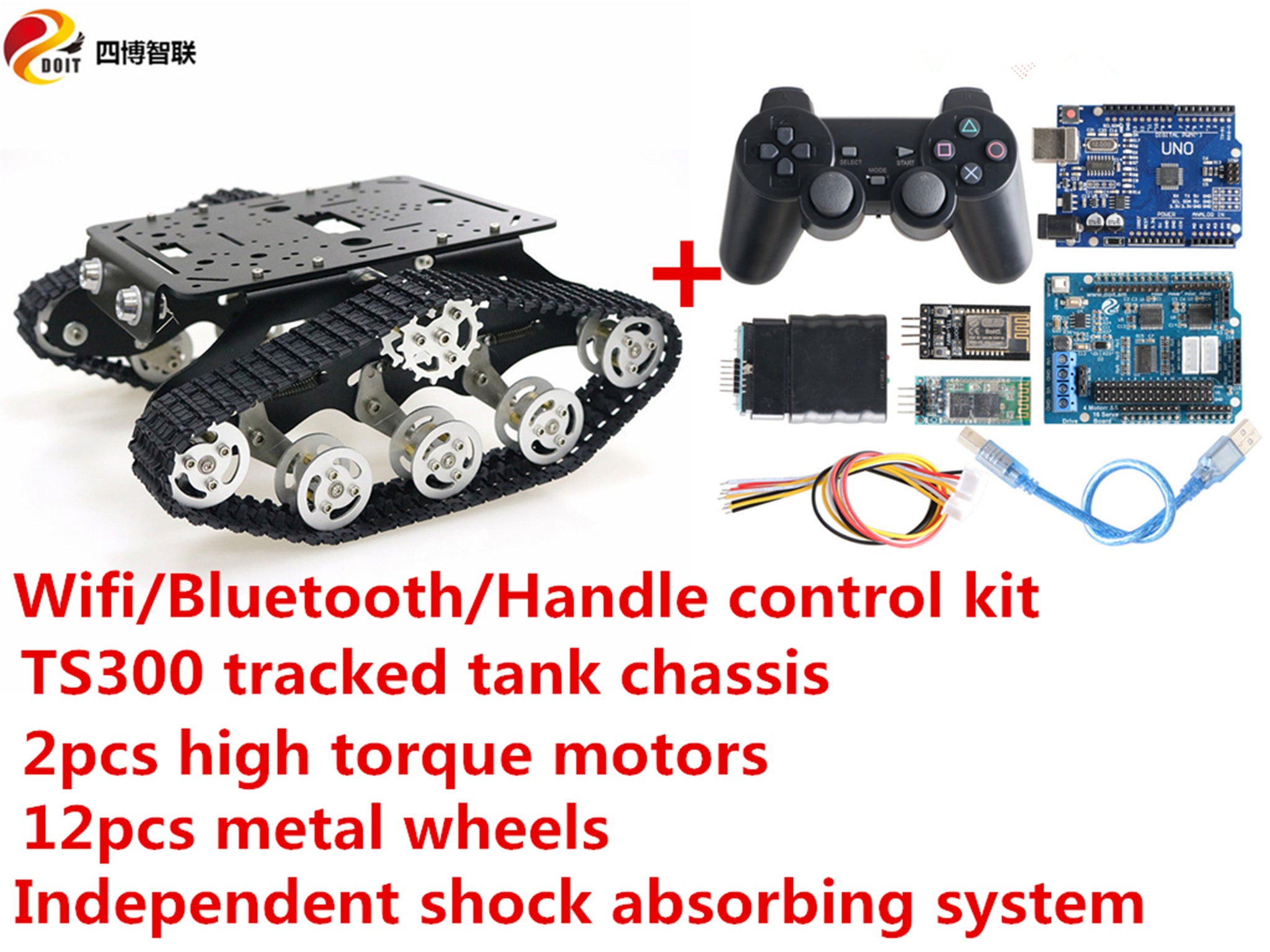

• 1 × TS300 tank chassis
• 2 × DC motor

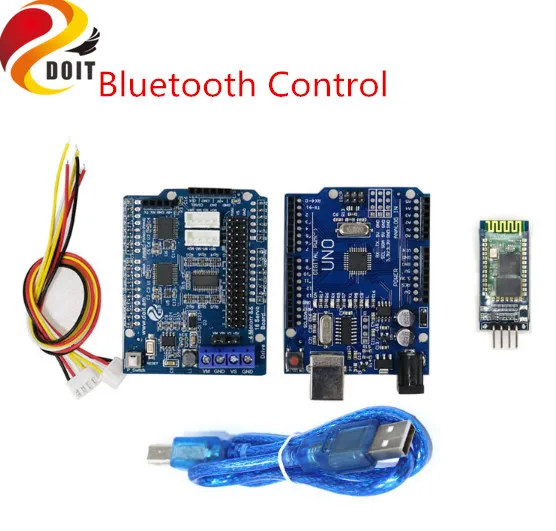

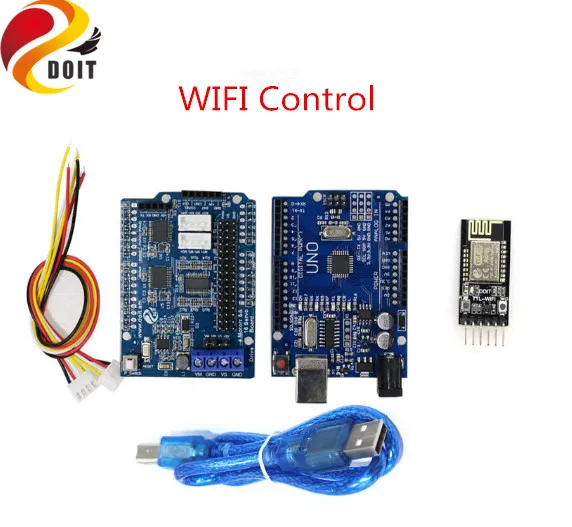

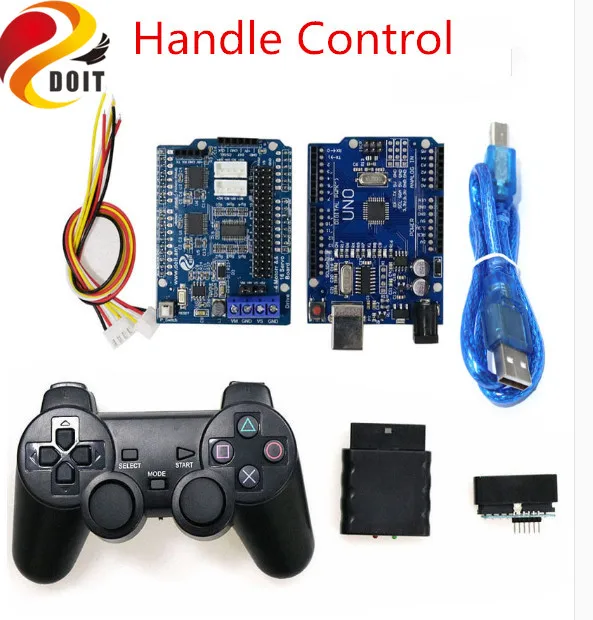

• 1 × Wifi/bluetooth/handle control kit

Note:

• In order to facilitate transportation, the product is not assembled;
• More documents can be downloaded at wiki.doit.am.
• The product does not contain the battery, the color of the motor servo drive version: blue / green random delivery;
• The yellow tank chassis is shipped by default. If you need black or silver, please specify when ordering.
