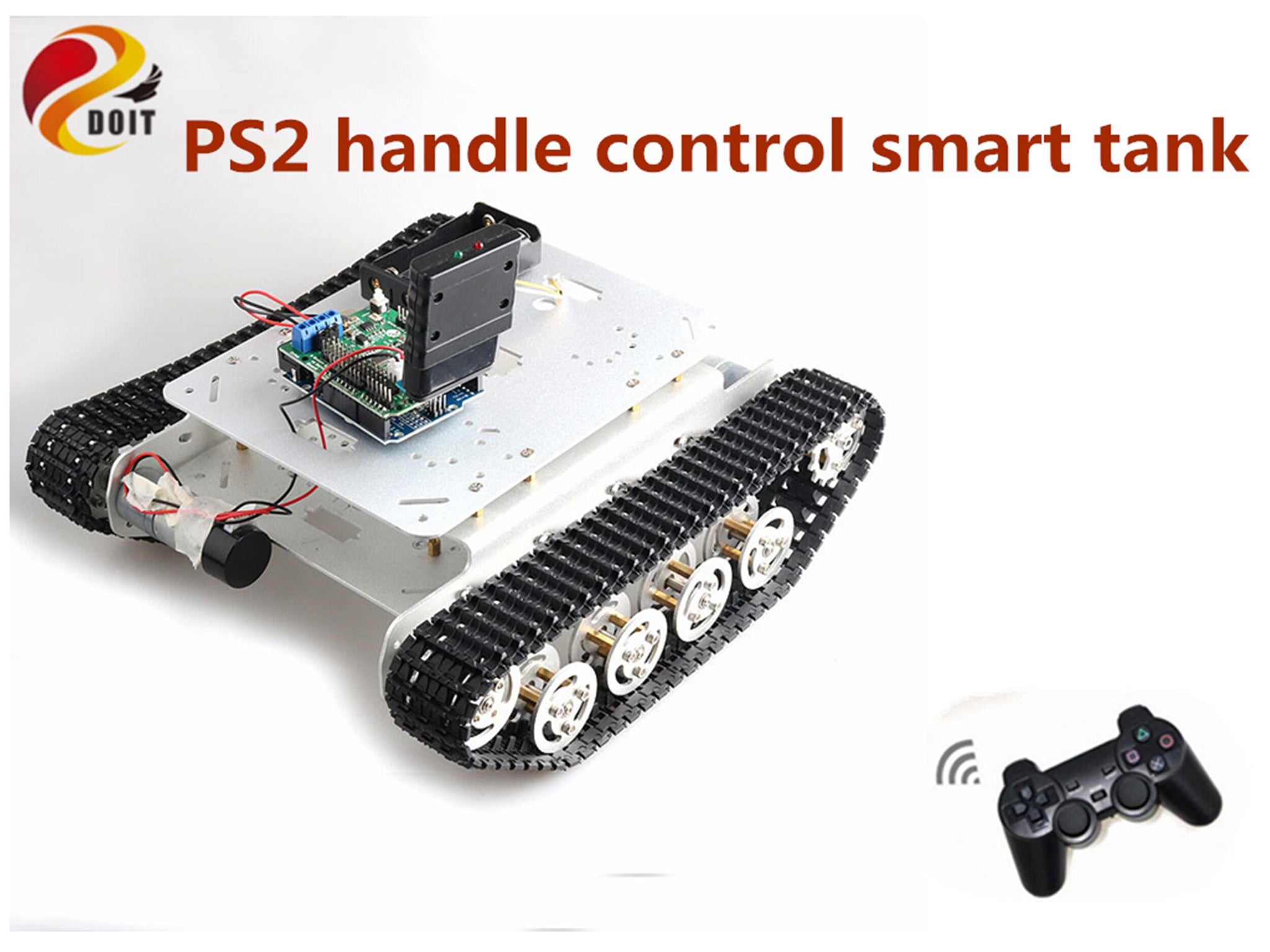

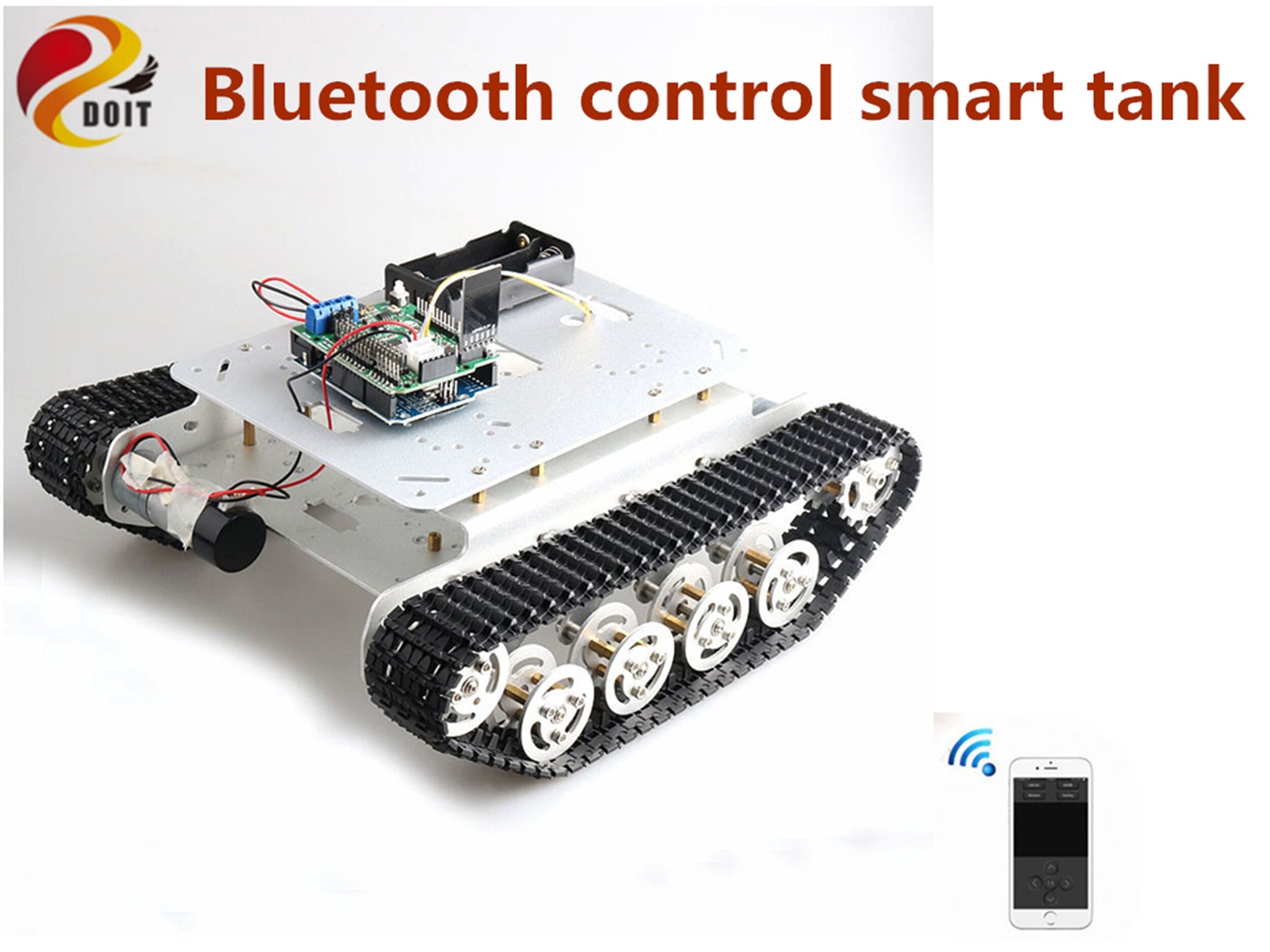

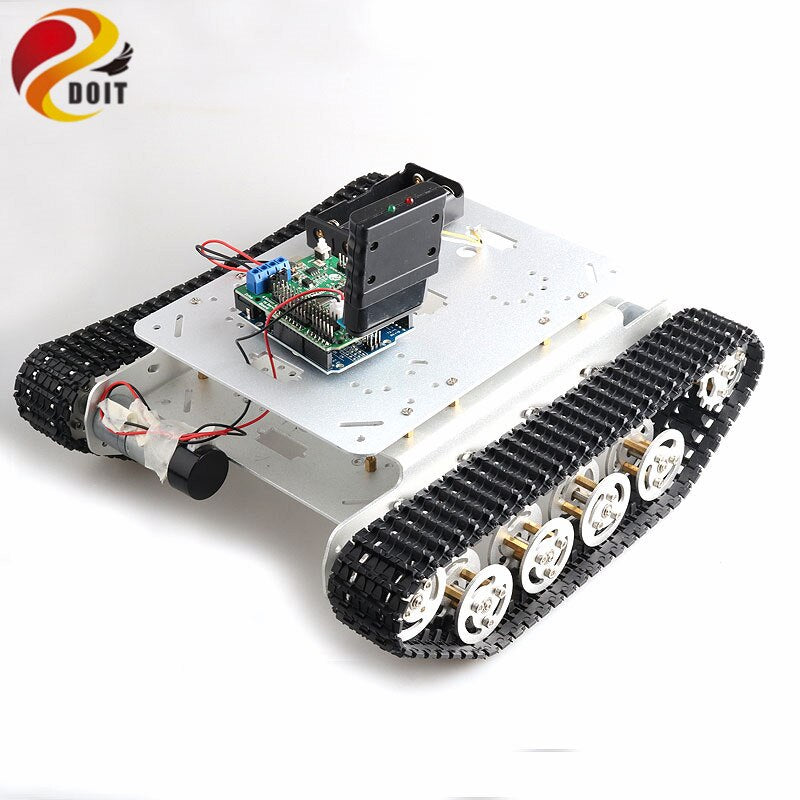

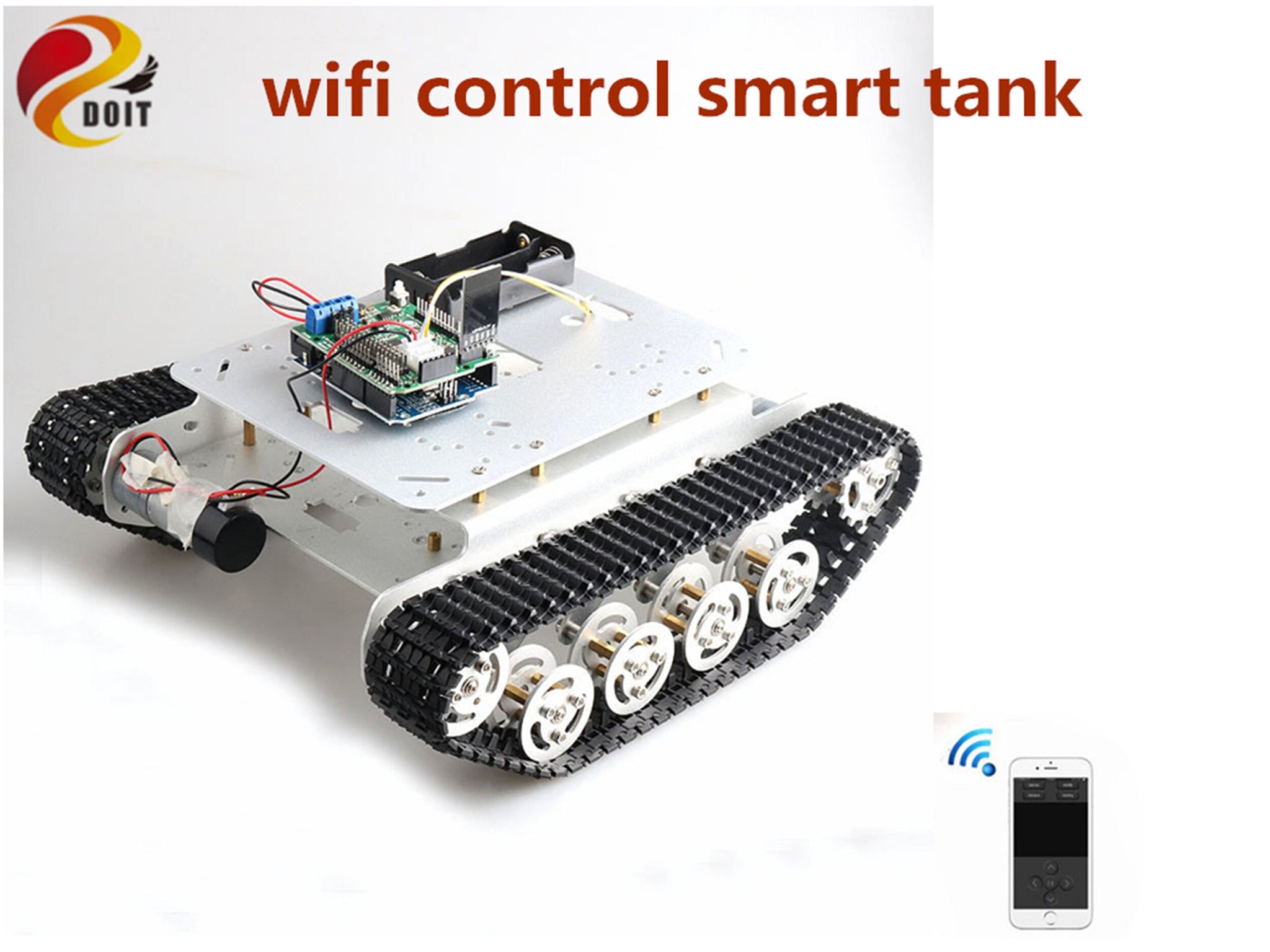

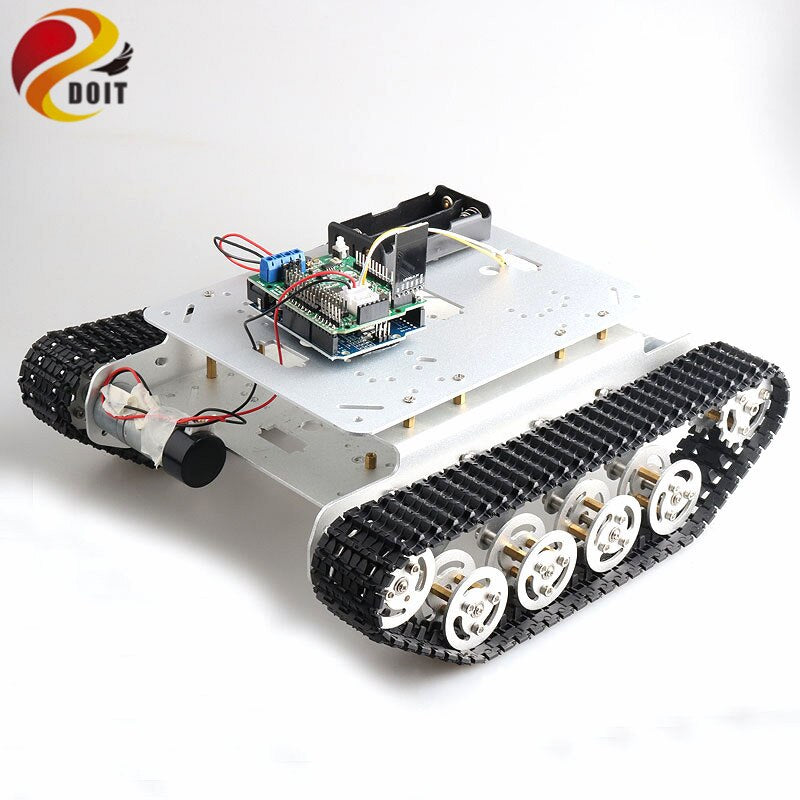

SZDOIT Wifi/Bluetooth/Handle Control TSD100 Intelligent Double-deck Metal Tank Chassis Kit RC Tracked Robot DIY for Arduino

Tank Chassis parameters:

• Size: 27.5*25.5*16cm (length * width * height)
• Material: aluminum alloy
• Surface treatment: sandblasting oxidation
• Color: gold, silver, black, optional
• Weight: about 1.4kg
• Track: engineering plastics
• Motor: 12V 300rpm with encoder motor

• Model: 25GA-310
• Voltage: 12V
• Speed: 300rpm
• No-load current: 220mA
• Load torque:  0.6kg.cm current 500mA
• Power: 1.6W
• Blocking torque: 2kg.cm current 2A
• Shaft diameter: 4mm
• Number of pulses: 300
• Single phase: 150

Control Type:

Shipping list: (Provide assembly instructions)

• 1 × TSD100 tank chassis
• 2 × DC motor
• 1 × Wifi/bluetooth/handle control kit
• Free: 18650 battery box, hex wrench, screw

Note:

• In order to facilitate transportation, the product is not assembled;
• More documents can be downloaded at wiki.doit.am.
• This product does not contain a battery.
