SZDOIT WiFi Control T100 Metal Tank Chassis+ ESP8266 Development Board Kit Smart Crawler RC Robot Motor Encoder DIY For Arduino

Features:

• Low price: WiFi control car; Cheapest;
• Open source: all information is open source, including free Android mobile phone software source code;
• Complete: a variety of information documents are complete;
• Configuration: equipped with Newest 8266 chip ESP-12E, driver chip L293D;

Tank Parameters:

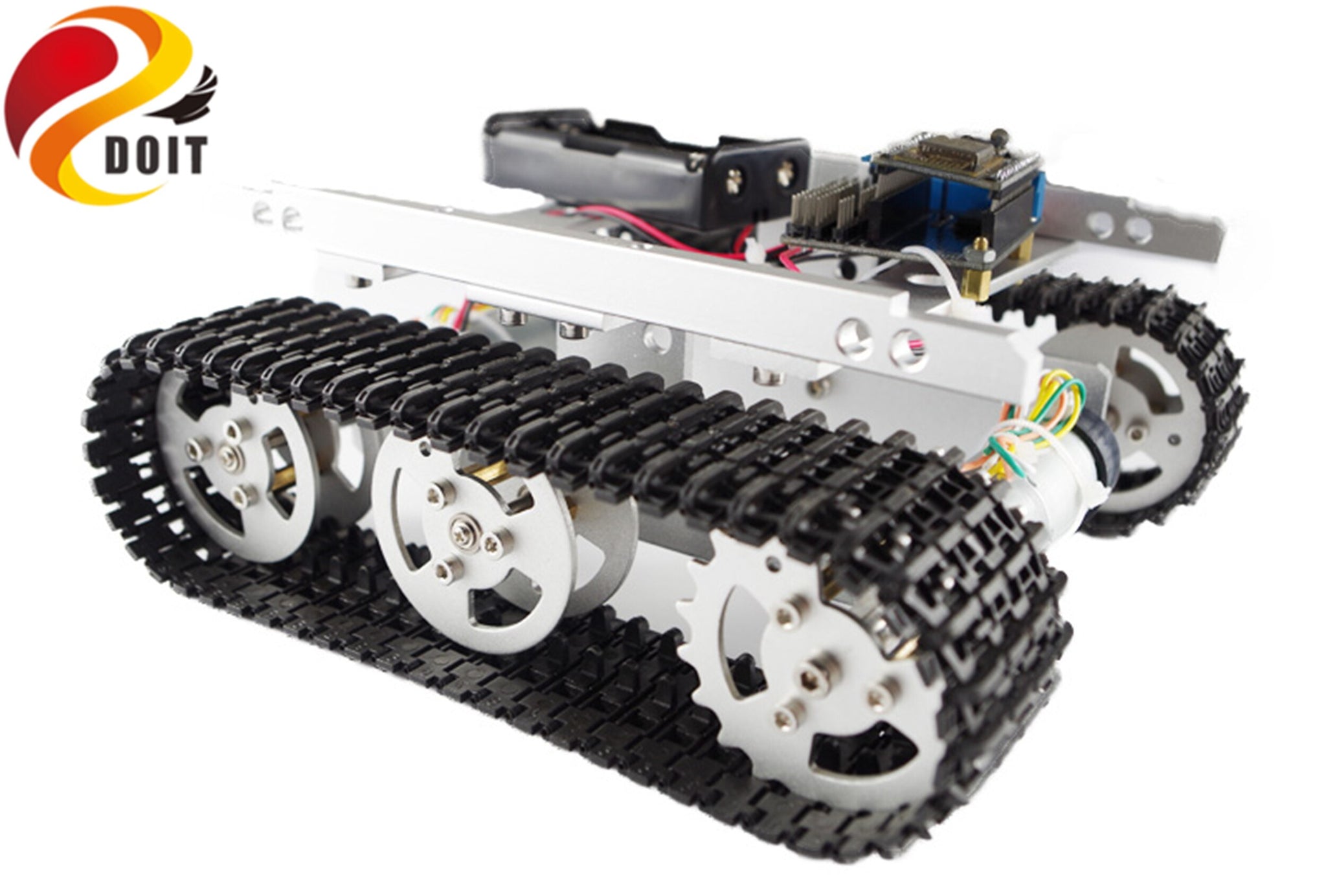

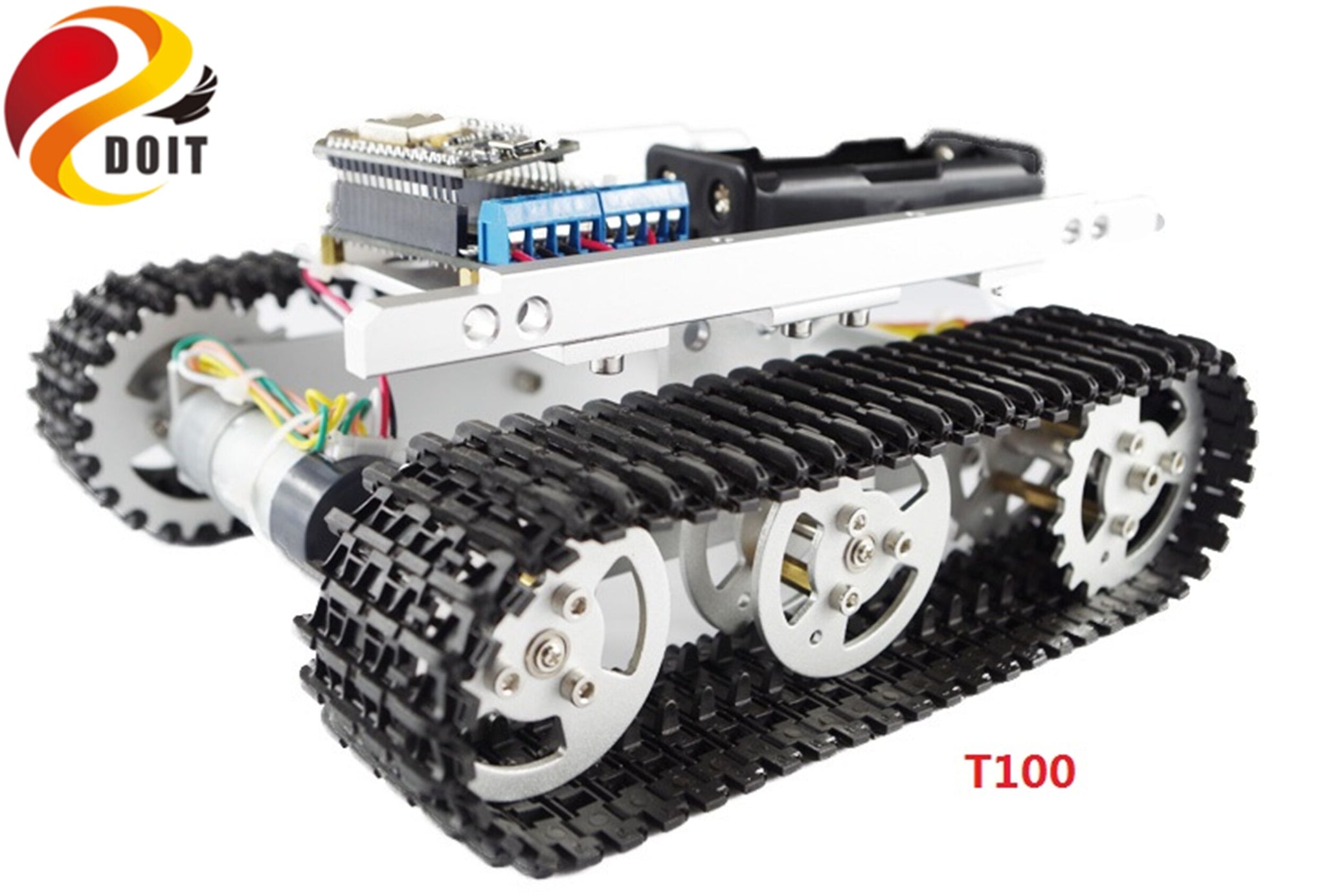

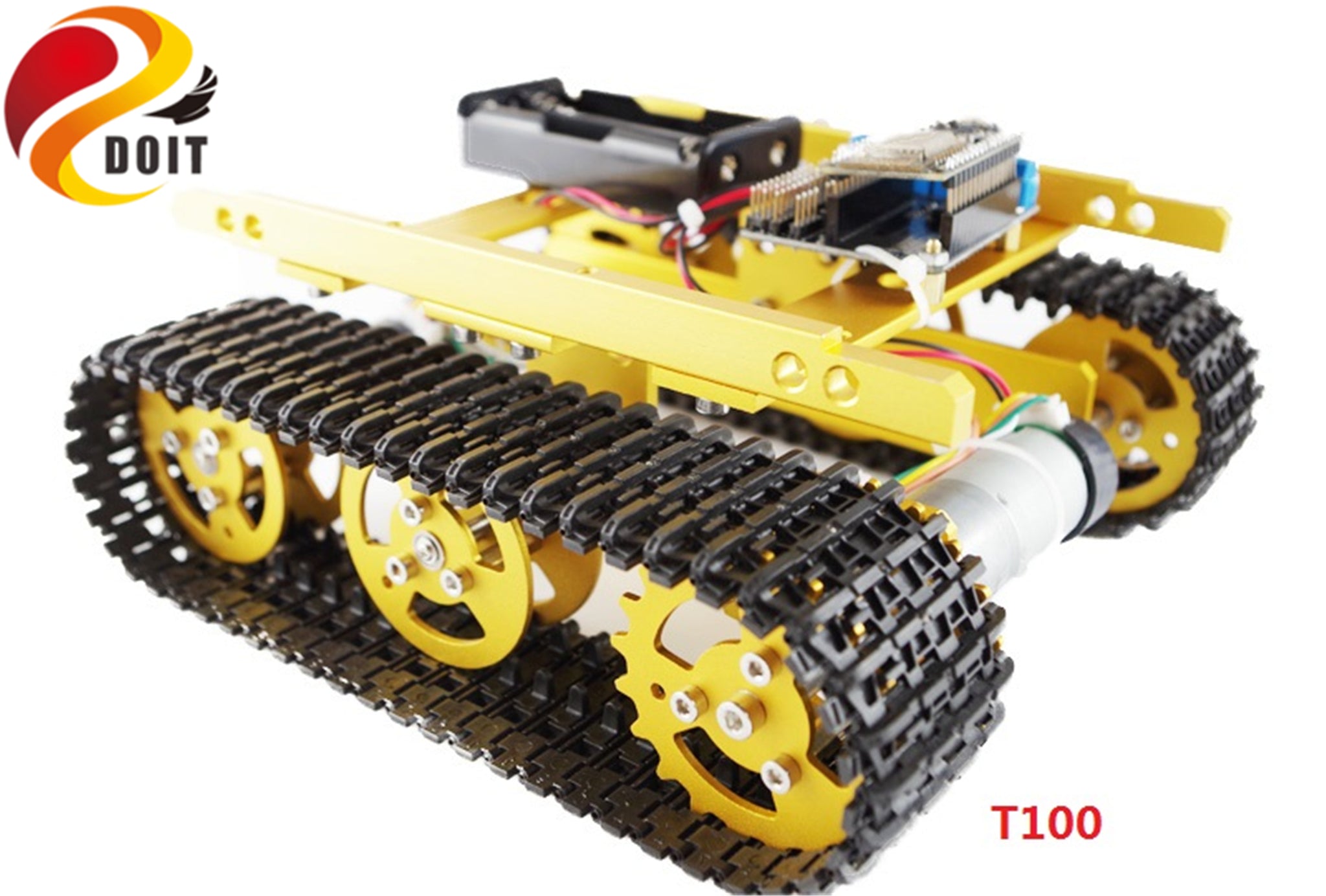

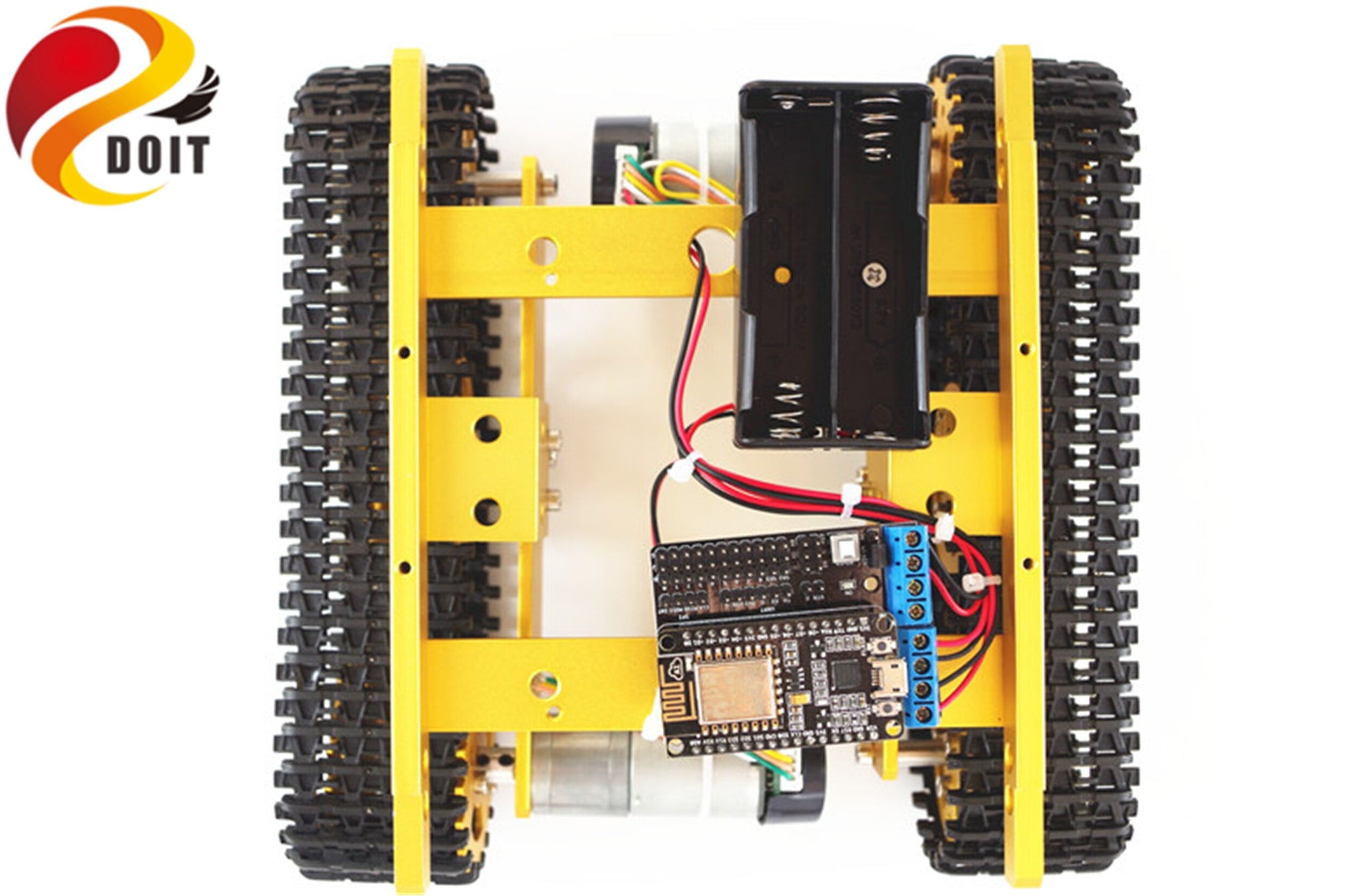

• Name: T100 intelligent tank chassis
• Material: aluminum alloy

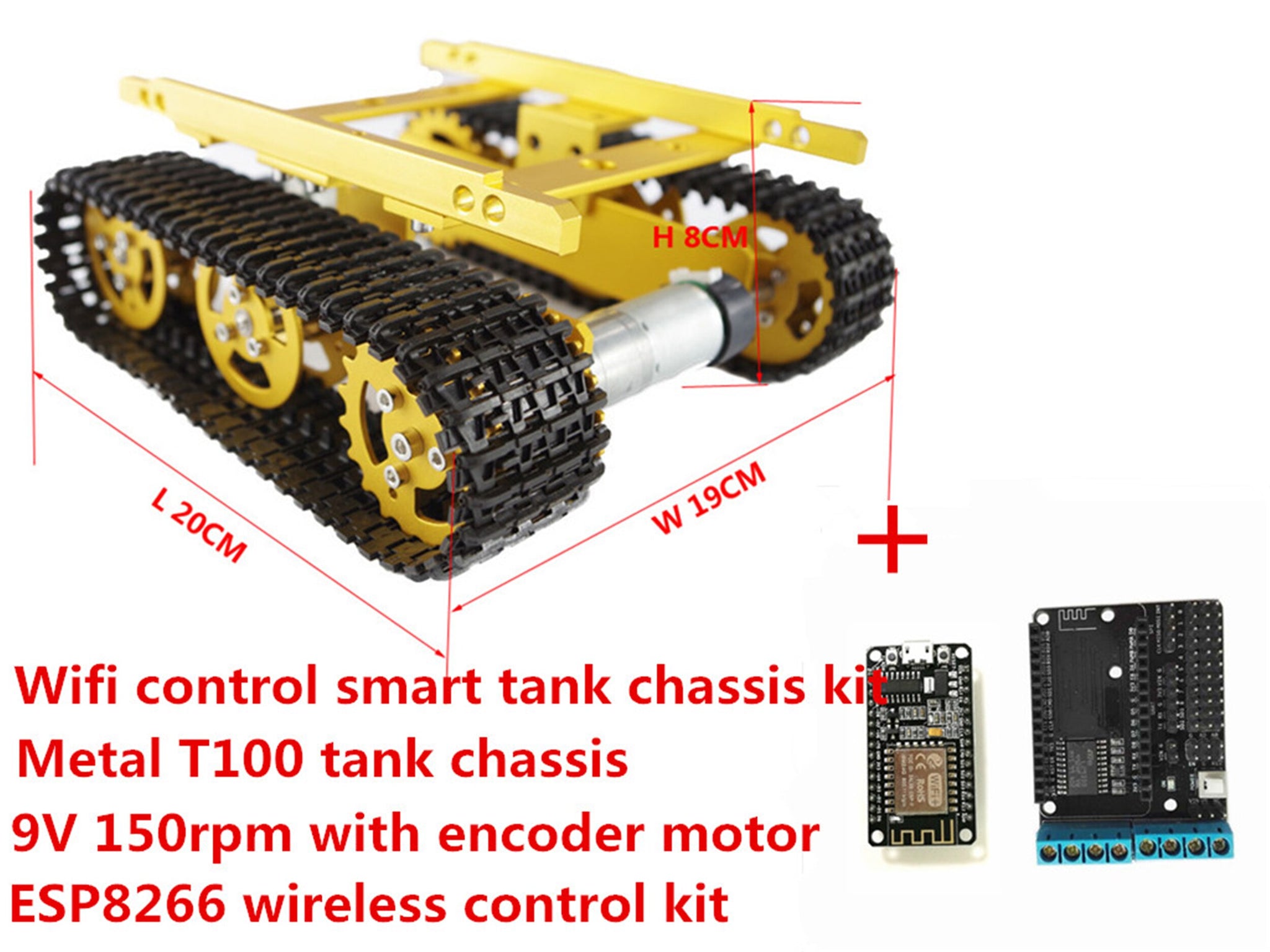

• Size: 200*190*80 (length * width * height)
• Surface treatment: sandblasting oxidation
• Color: gold / silver
• Track: engineering plastics
• Motor: 9V 150 rpm with encoder motor

Motor Parameters:

• Name:9V 150rpm with encoder motor
• Output rate: 150±10% rpm
• Load current: 200mA (Max)
• Stall current: 4500 mA (max)
• Stalling torque: 9.5kg NaN
• Load speed: 100±10% rpm
• Load torque: 3000gNaN
• Load current: 1200mA (Max)
• Working voltage: 9V

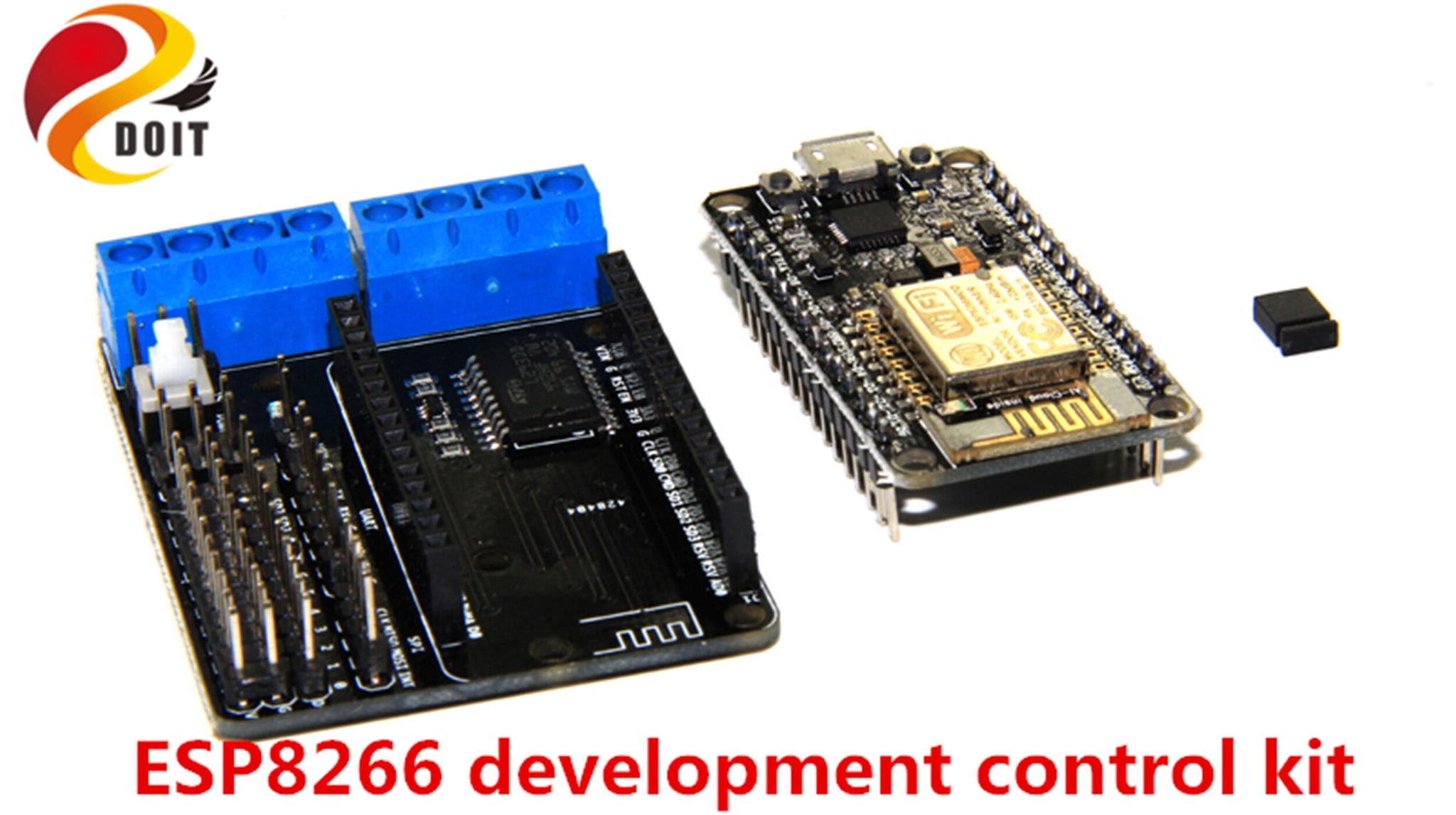

• The ESP8266 control kit consists of a NodeMCU control board + ESP-12E expansion board;
• NodeMCU uses a new original CH341 chip, and a shipping board is rigorously tested to strictly control the quality;
• Leads all function pins of ESP12 DEV KIT: SPI, UART, GPIO, AI and 3.3V power interface;
• Expand two-way motor drive to directly drive two motors;
• With the shorting module, the control board and the motor can be powered simultaneously.

Shipping list:

• 1 × Gold tank chassis
• 2 × DC motor
• 4 × metal bearing wheel
• 2 × metal drive wheel
• 2 × track
• 1 × ESP8266 control kit
• Free: Battery box,Power cord,Hexagon wrench,Screw kit

Note:

• In order to facilitate transportation, the product is not assembled. But it is very easy to install.
• This product does not contain batteries.
• More documents can be downloaded at wiki.doit.am.
