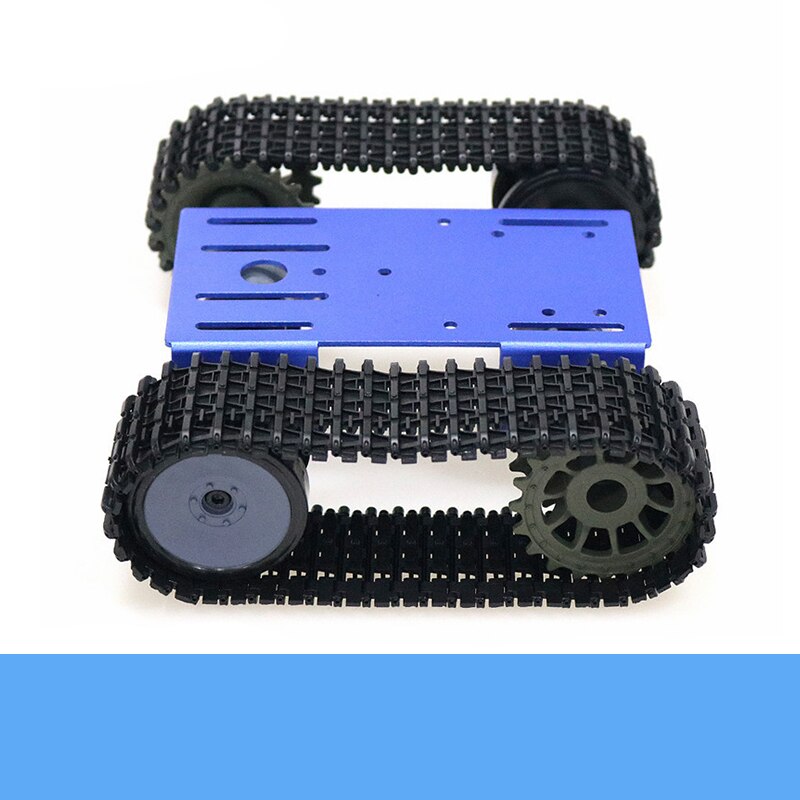

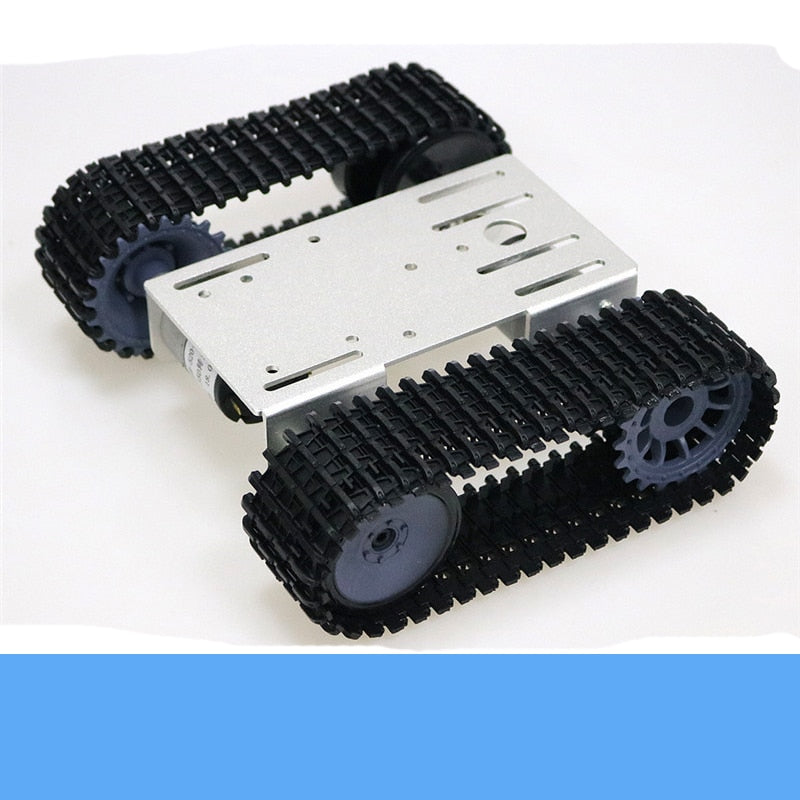

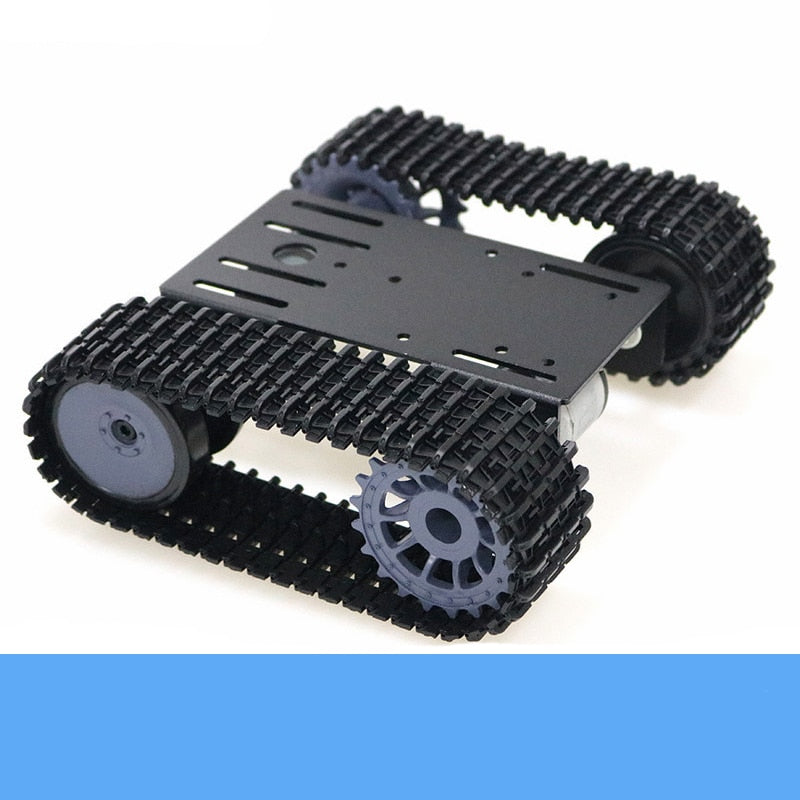

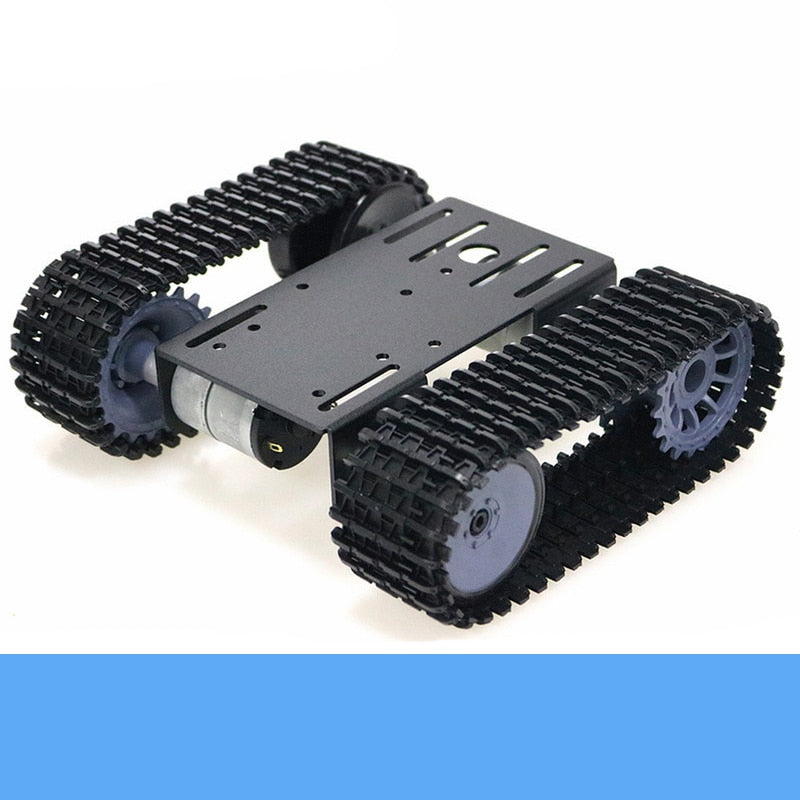

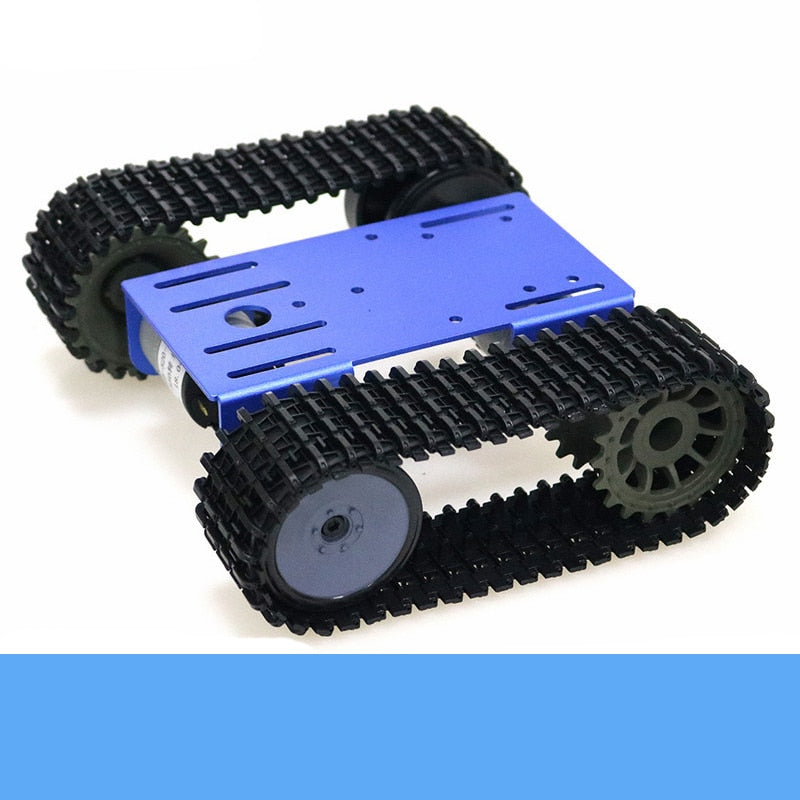

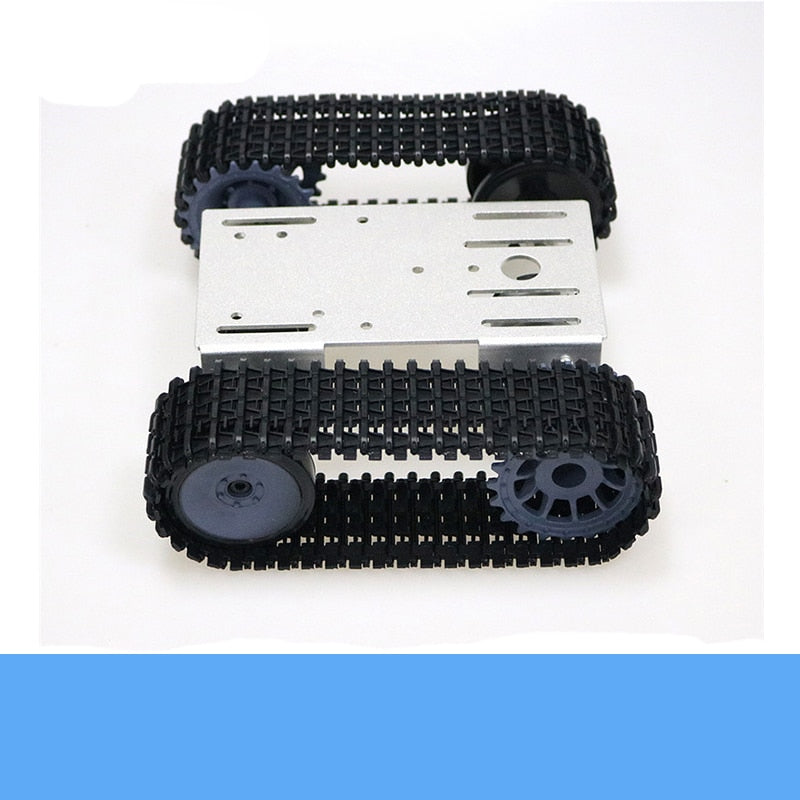

TP101 Metal Smart Crawler Robot Tank Chassis Kit With 33GB-520 12V DC Motor Aluminum Alloy Panel DIY For Arduino Toy

TP101 tank chassis parameters:

• Product model: TP101
• Product size: 193 * 163 * 60mm (length * width * height)
• Product net weight: 0.47kg
• Panel material: 2mm aluminum alloy
• Surface treatment: sandblasted oxidation
• Track: Engineering Plastics
• Wheel: Plastic
• Motor: 33GB-520

33GB-520 motor:

• Voltage range: 6V-12V
• No-load speed: 170-350RPM
• Rated voltage: DC12V
• No-load current: 100mA
• Weight: 100g

Shipping list:

• 1 × Metal panel
• 2 × Motor
• 2 × Track
• 2 × Plastic load-bearing wheel
• 2 × Plastic drive wheel
• 1 × Screw accessories kit
• Free: Hex wrench, 18650 battery box

Note:

• This product does not include a battery;
• In order to facilitate transportation, the product is not assembled.
• More documents can be downloaded at wiki.doit.am.
• If you need to install the manual, please leave your email after placing the order.
