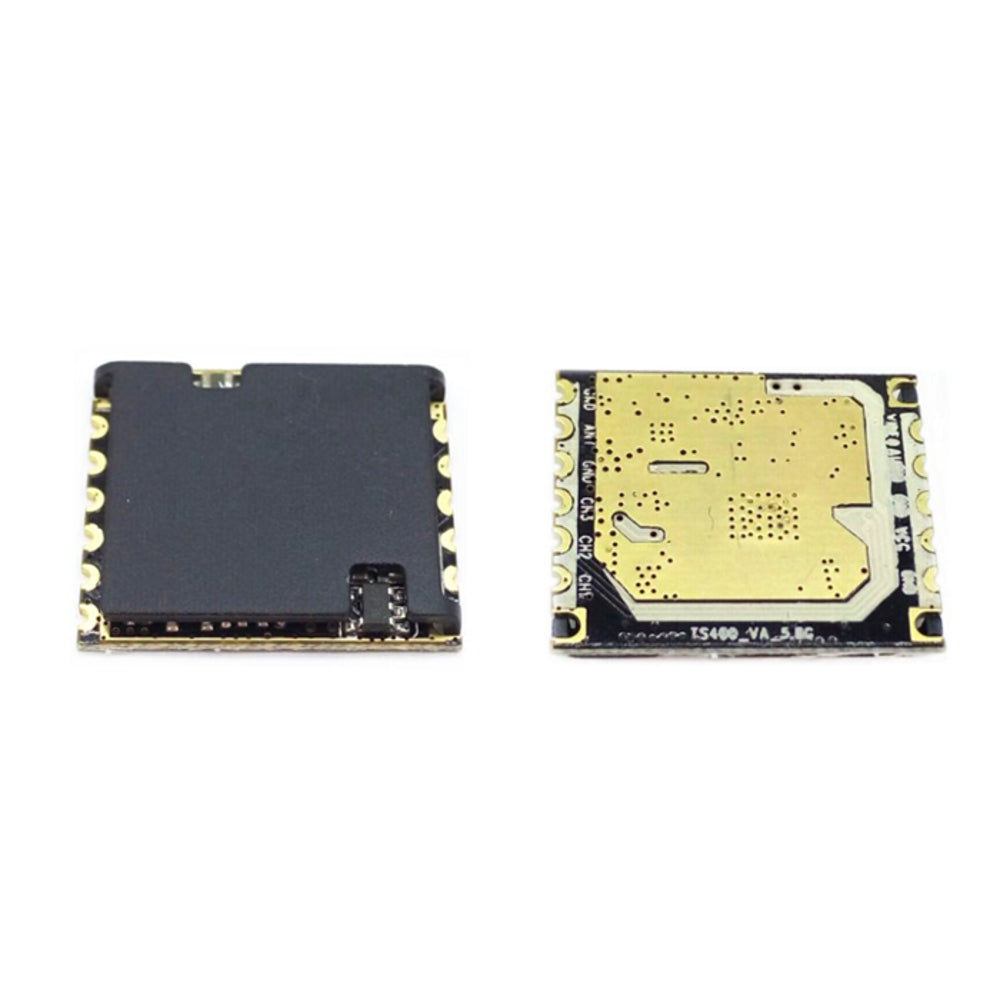

TS400 5.8G 500mW 8CH AV RF FPV Transmitter VTX DIY Module


Features
5.8G Broadband - synchronous transmission of audio and video FM
small SMD package: 22 x 20 x 3 mm
Power: 5V 550-650mA
High output power: 26-27dBm
The built-in frequency of PLL with high stability
Low harmonic radiation
Direct input analog audio, video signal

Specification
Parameter Symbol Working condition Min Typical Max Unit
Supply voltage VCC   4.5    5 5.5 V
Power supply ripple voltage Vlp     10 25 mVpp
Input voltage Vi   GND - VCC V
Working temperature Ta Refers to the module itself, does not contain other parts -20 27 90 °C
Electrical characteristics (VCC=5.0V, Ta=25°C)
Parameter Symbol Working condition Min Typical Max Unit
Supply current Icc Vcc=+5V --- 550 --- mA
RF
Output power RFout 50Ω System 26 26 27 dBm
Emission frequency CH1-8   5645 --- 5945 MHz
Frequency stability Fstb   -100   +100 ppm
Output impedance RFin 50Ω System   50   Ω
Bobbi VSWR 50Ω System   2 : 1
Video
Video input impedance Rvo     75Ω   Ω
Video input level Vvo Negative polarity,75Ω Load 0.9 1 1.25 Vpp
Frequency response Fbdv   0   6 MHz
Audio
Subcarrier demodulation frequency Far   6.4 6.5 6.6 MHz
Audio output impedance Rao 1kHz  Sine wave   600 1K Ω
Audio output level Vao 1kHz  Sine wave,Dual channel   0.8*   Vpp
Frequency response Fbda 100~10kHz,1.0Vpp  Sine wave 100   10K Hz
Harmonic distortion THD 1kHz, 1.0Vpp  Sine wave   0.6 1.5 %



Channel control
Channel number CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
Receiving frequency  (MHz) 5705 5685 5665 5645 5885 5905 5925 5945


Pin level 		CH1 0 1 0 1 0 1 0 1
CH2 0 0 1 1 0 0 1 1
CH3 0 0 0 0 1 1 1 1


Package  Included
1 x Transmitter Module
