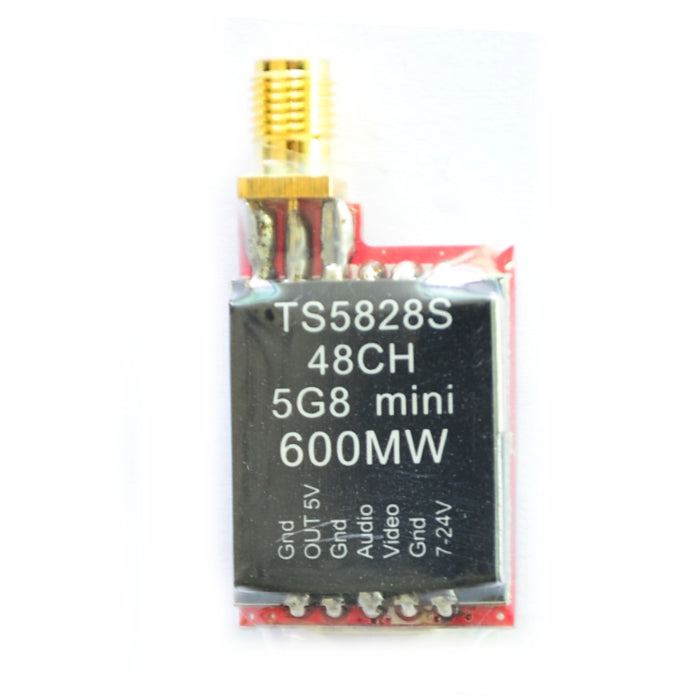

TS5828S Micro VTX 5.8G 600mW 48CH Mini FPV Transmitter SMA RP-SMA for RC Drone
Banggood
Regular price
$18.99
$14.99
Sale
TS5828S Micro 5.8G 600mW 48CH Mini FPV Transmitter SMA RP-SMA for RC Racer
Description :
Channel : 48
Transmission Frequency : 5.6-5.9Ghz
Voltage Input : 7-24V
Power : 600mw
Working Current : 190mA /12V
Temp. : -10-+85℃
Video Bandwidth : 8M
Audio Coding : 6.5M
Connector : SMA, RP-SMA
Net Weigth : 7.3g without antenna
Size : 30x20x8mm without ANT connector
Frequency:
| CH Band | CH 1 | CH 2 | CH 3 | CH 4 | CH 5 | CH 6 | CH 7 | CH 8 |
| A(A) | 5865MHz | 5845MHz | 5825MHz | 5805MHz | 5785MHz | 5765MHz | 5745MHz | 5725MHz |
| b(B) | 5733MHz | 5752MHz | 5771MHz | 5790MHz | 5809MHz | 5828MHz | 5847MHz | 5866MHz |
| C(E) | 5705MHz | 5685MHz | 5665MHz | 5645MHz | 5885MHz | 5905MHz | 5925MHz | 5945MHz |
| d(F) | 5740MHz | 5760MHz | 5780MHz | 5800MHz | 5820MHz | 5840MHz | 5860MHz | 5880MHz |
| E(R) | 5658MHz | 5695MHz | 5732MHz | 5769MHz | 5806MHz | 5843MHz | 5880MHz | 5917MHz |
| F | 5362MHz | 5399MHz | 5436MHz | 5473MHz | 5510MHz | 5547MHz | 5584MHz | 5621MHz |
Features :
5.8G 48ch Frequency, almost cover all channels.
With power output function, can power supply for camera, more convenience.
Small and light, compatible for mini racer

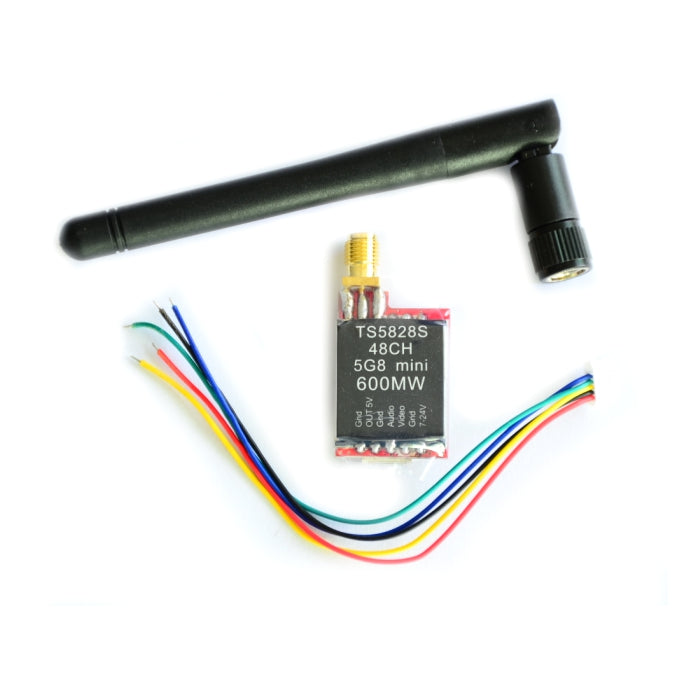

Package Included :
1 x Tranmitter
1 x AV Cable
1 x Antenna
