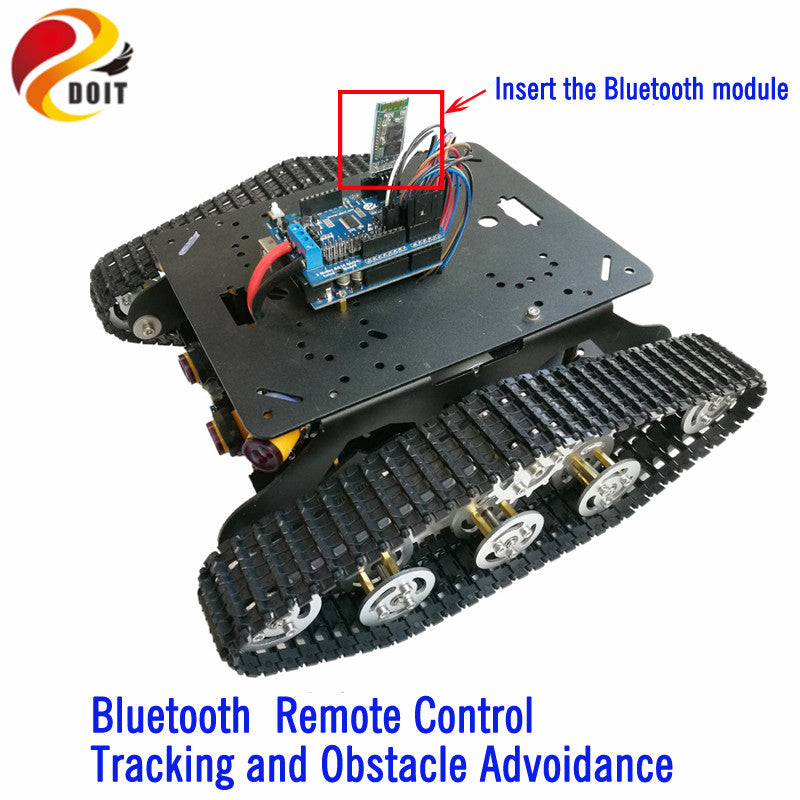

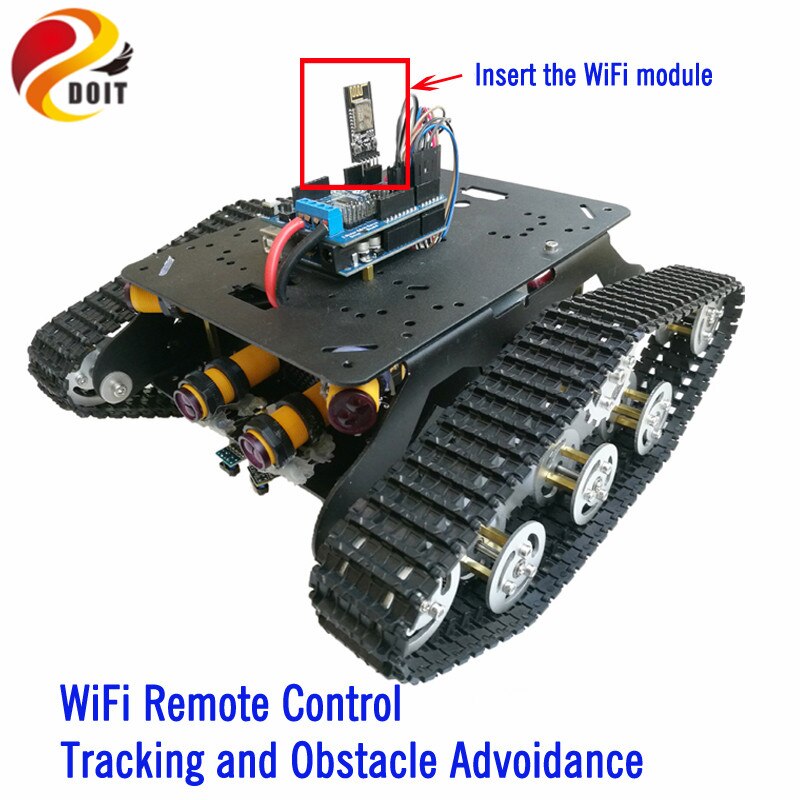

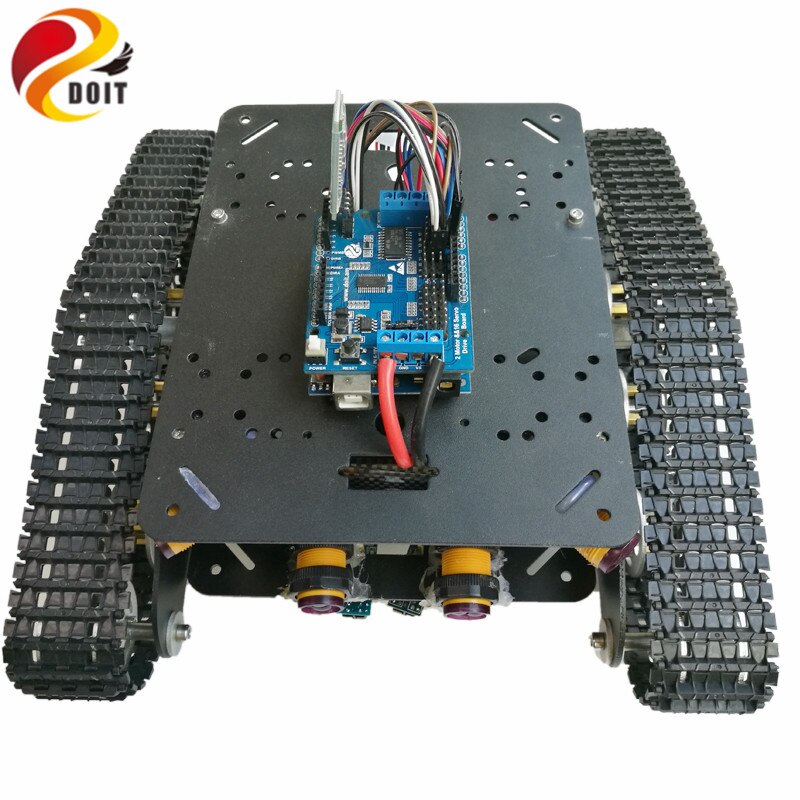

  • This Car kit, is designed based on the Arduino uno board, together with 2-channel & 16-channel servo shield board to drive the tank and 4WD car. You can contol this tank car by Blutooth or WiFi. In addition, there has 4 Infrared Obstacle Advoidance and 2 tracking module. You can contol this tank chassis to track as well as avoid obstacle via Blutooth control or WiFi control.

  • Provide source code, App and user manual.

  • More details, please visit: https://github.com/SmartArduino/SZDOITWiKi/wiki to download the source code and the documents.

Arduino UNO Kit:

Functional characteristics:

  • Can control 2 road motor and 16 road servo;

  • Using Bluetooth (reserved-line interface) or WiFi control;

  • Folding plug design;

Power supply connection method:

  • Circuit break VM and VIN, (individually controlled motor, 6~36V);

  • Circuit break VS and VIN, (individually controlled servos 6~18V);

  • Short circuit VM and VIN, and short circuit VS and 5V. Control motor (6~18V) and 16 road 5V servo Simultaneously.



HC-06 Bluetooth Module:

  • Allows your device to both send or receive the TTL data via Bluetooth technology without connecting a serial cable to your computer.

  • Works with any USB Bluetooth adapters.

  • Default Baud Rate: 9600,8,1,n.

  • Built in antenna.

  • Coverage up to 30ft.

  • Bluetooth version: V2.0+EDR

  • Operating voltage: 3.3V

  • Default Baud Rate: 9600,8,1,n.

  • Signal coverage: 30ft

  • Item size: 4.3 * 1.6 * 0.7cm

  • Item weight: 3g

  • Package size: 9 * 3 * 1cm

  • Package weight: 8g​

  • Commercial Series: Bluetooth module board Series

  • With LED indicator light, use 150mA and 3.3V regulation chip.

  • With VCC.GND.TXD.RXD foot for the Bluetooth

  • With "Re-seach" button(ON/OFF/WAKE foot for it , external MCU outinput "High level" can control module to re-seach)

  • Compatible with bluetooth master module".slave module"or master-slave(whole) module.

  • Input voltage: 3.3~6V

  • Size: 1.55cm*3.98cm

Note:

  • input power supply 3.3~6V, Prohibit more than 7V

  • No "Automatically prevent power supply peversing func", so please correctly connect power supply

  • We advise to install "Bluetooth master module"

  • The "State" is output foot for LED status, when bluetooth "Unconnected", output "Pulse" ; when bluetooth "connected", output "High level", we can determine the states from "MCU"

  • If only the board , No any "Bluetooth Function "



DT-06 Module:

Product Introduction:

  • TTL-WiFi is designed and developed based on ESP-M2 WiFi module from our company Shenzhen Doctors of Intelligence & Technology Co., Ltd., which is extracted the TTL, EN, STATE and other pins. Importantly, the TTL-WiFi is already built-in the serial transparent transmission firmware programmed by our company (SZdoit), which can realize the transparent transmit the data to the cloud on the real-time, together with low-power control, status indictor. This board can replace the old wiring serial WiFi device to realize the data collection and control.

  • More details, please visit this github link to get the manual and tools, https://github.com/SmartArduino/SZDOITWiKi/wiki/ESP8266---TTLtoWiFi

Product Features:

  • Fully compatible with the original electrical interface and physical interface for the serial transparent Bluetooth;

  • Built-in the industrial transparent transmission firmware V3.0 with stability and reliability by using the Web Configuration;

  • Built-in the high performance WiFi module ESP-M2 with size: 34mm*17mm*4mm;

  • Working voltage: 4.5V~6.0V, TTL working voltage: 3.3V (compatible with 5.0V);

  • Provided pins: STATE, TXD, RXD,EN;

  • Average current: 80mA; when data sent, it is 170mA; but it is 20μA at deep sleep mode;

  • Support serial AT command;

  • Support re-programmable, OTA firmware update;

  • Seamless transparent transmission between serial and WiFi;

  • Built-in HTTP Web Server, support configure parameters by web page;

  • Support re-connect automatically at WiFi STA mode and TCP Client;

  • Support set baud rate, data bit, parity check, stop bits, and/or subcontracting time;

  • Support baud rate (bps): 300/600/1200/2400/4800/9600/19200/38400/57600/74800/115200/230400/460800/921600/1843200/3686400；

  • Support AP enable, self-defined SSID/password, self-defined IP and network duration;

  • Automatically scan the peripheral WiFi hotspot, support STA enable,DHCP, self-defined IP;

  • Support TCP Server, TCP Client, UDP Server, UDP Client and UDP local broadcast;

  • Support DNS resolution automatically for the remote sever address;

  • Support checking the status by AT command;

  • Provide IO4 to show the WiFi status;

  • Working temperature: -40℃-125℃;

  • Applications: smart home, wireless data connection and transparent transmission, smart car control, wireless serial printer, LED light industrial control etc.

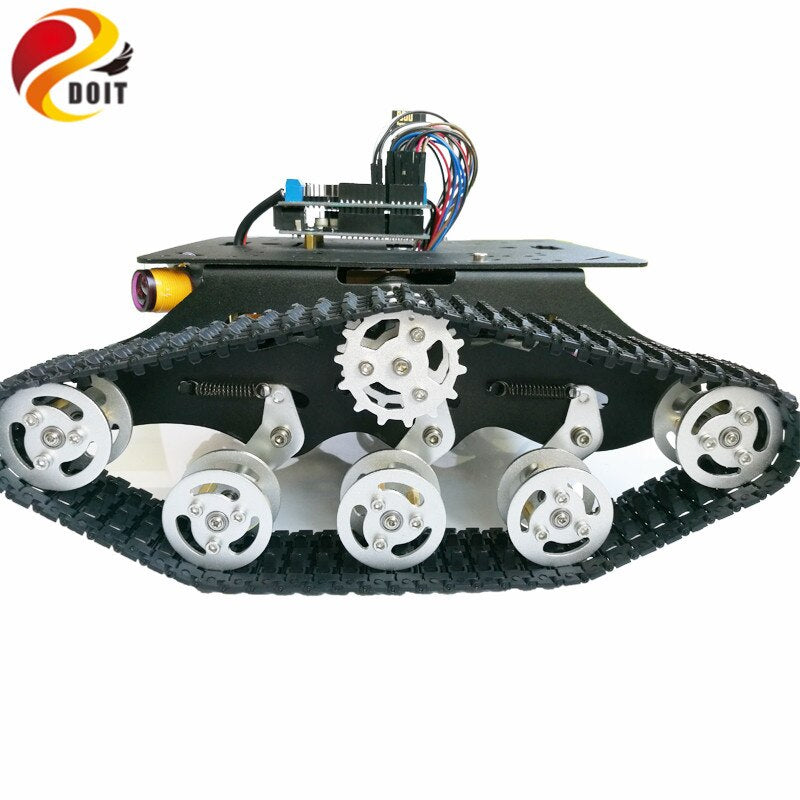

TSD300 Tank Chassis>>

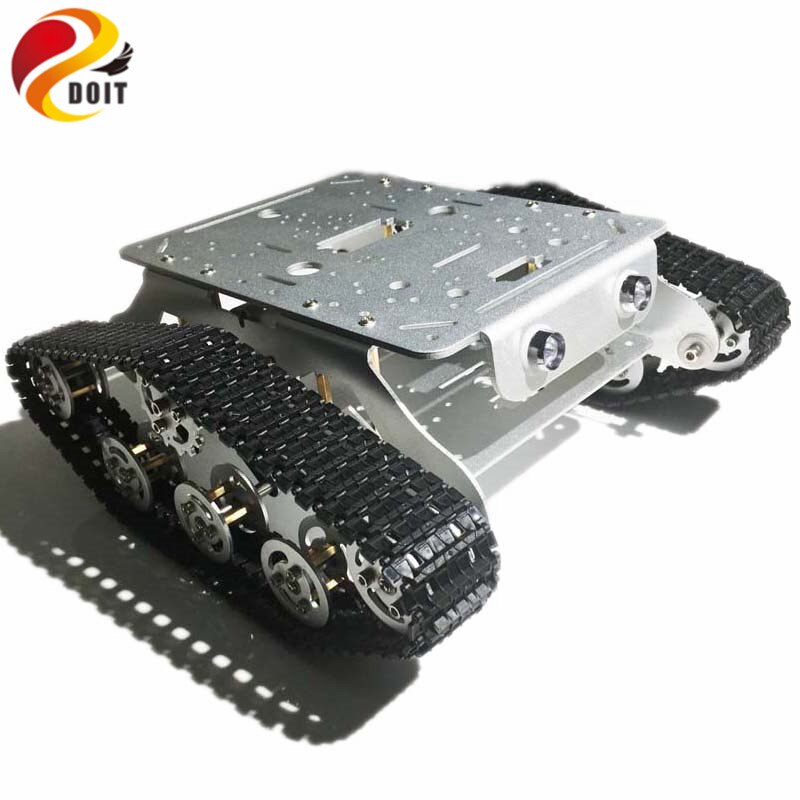

  • Name: Caeser TSD300 Damping Tank Chassis

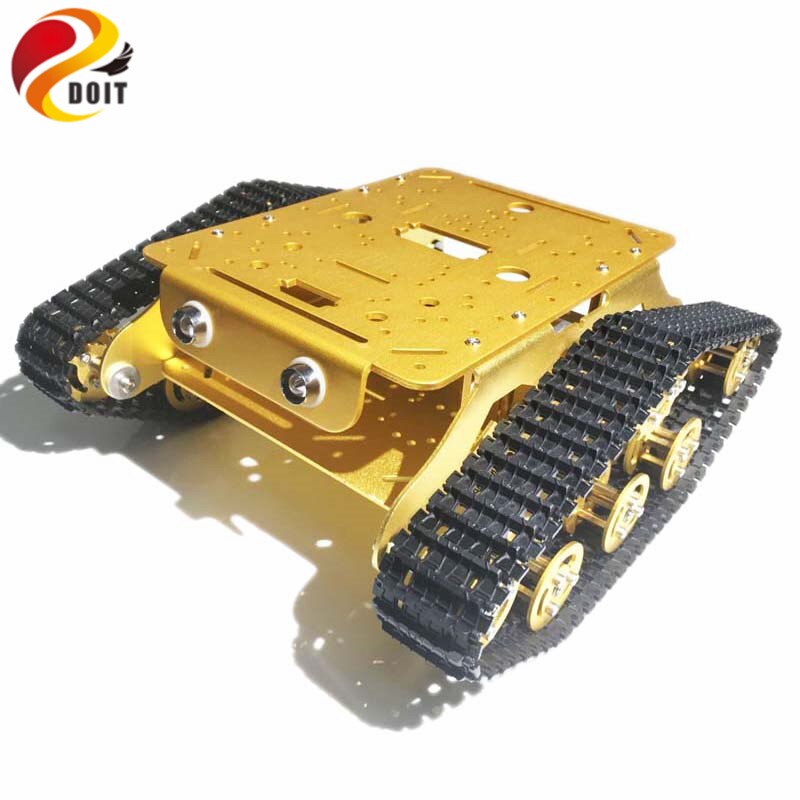

  • Color: Golden yellow; Silver; Black

  • Size: About 290*270*100mm（Length*Width*Height）

  • Weight: About 1.65kg

  • Design Load: 5kg

Motor: 33GB-520 Motor, 9V&150RPM, 12V&320RPM

Motor Parameters(33GB-520 Motor)

  • Rated Voltege: DC12V

  • No load Current: 100mA

  • Voltage: 6-12V

  • No load Speed: 170-350r/min

  • Weight: 100g

Motor Parameters(25mm 9V DC Motor):

  • Name: 25mm gear motor

  • Output speed: 150±10%rpm

  • No_load Current: 200mA (Max)

  • Stall current: 4500mA(max)

  • Stall torque: 9.5kgNaN

  • Rated speed: 100±10%rpm

  • Rated torque: 3000gNaN

  • Rated Current: 1200mA (Max)

  • Noise: 56dB

  • Working voltage: 9V

  • Outside Shaft Length: 14.5mm

  • Shaft End Play: 0.05-0.50mm

  • Screw Size: M3.0

  • Dia. Of Shaft phi4mm, D3.5

  • encoder: 2 pulses/circle

Motor parameters(12V DC Motor):

  • Voltage: 12V DC

  • RPM: 320RPM

  • Current: 0.55A

  • Diameter: 25mm

  • Height (excl. shaft): 68mm

  • Shaft length: 9.5mm

  • Shaft diameter: 4mm

  • Weight: 180g

  • Brand new and unused

  • Torque: 13kg.cm

  • max effective point: load 4.0kg.cm/235rpm/2.5W/0.58A

  • Max power: load 7kg.cm/215rpm/3.1w/0.65A

  • Stall current: 4.8A

​

Shipping list

  • TSD300 tank chassis: 1 set(Color: Silver/Black/Yellow)

  • ESP8266 WiFi UNO shield: 1pcs

  • Compatible Arduino board: 1pcs

  • USB Cable: 1pcs

  • Infrared Obstacle Advoidance sensor module: 4pcs

  • Tracking module: 2pcs

  • WiFi module/ Bluetooth module: 1pcs

  • Scews: several



Note: We are random shipments for the motor. Please leave a message if you have any need. Not including battery because of the prohibition of shipping.



Images

9

1112

6

2

49

Warm Prompt

  • For the shipping convenience, the tank/car chassis is unassembled.
