Specification:
Model: TX805
Item name: FPV Transmitter VTX
Frequency: 5.8G
Channels: 40CH
Input voltage: 7V~24V
5V camera supply: 120mA(MAX)----25mW 12V
5V camera supply: 200mA(MAX)----200mW 12V
5V camera supply: 300mA(MAX)----600mW 12V
5V camera supply: 350mA(MAX)----800mW 12V
Extra features: Smart audio
Power supply: 5V output for Camera
Output power: 25mW/200mW/600mW/800mW switchable

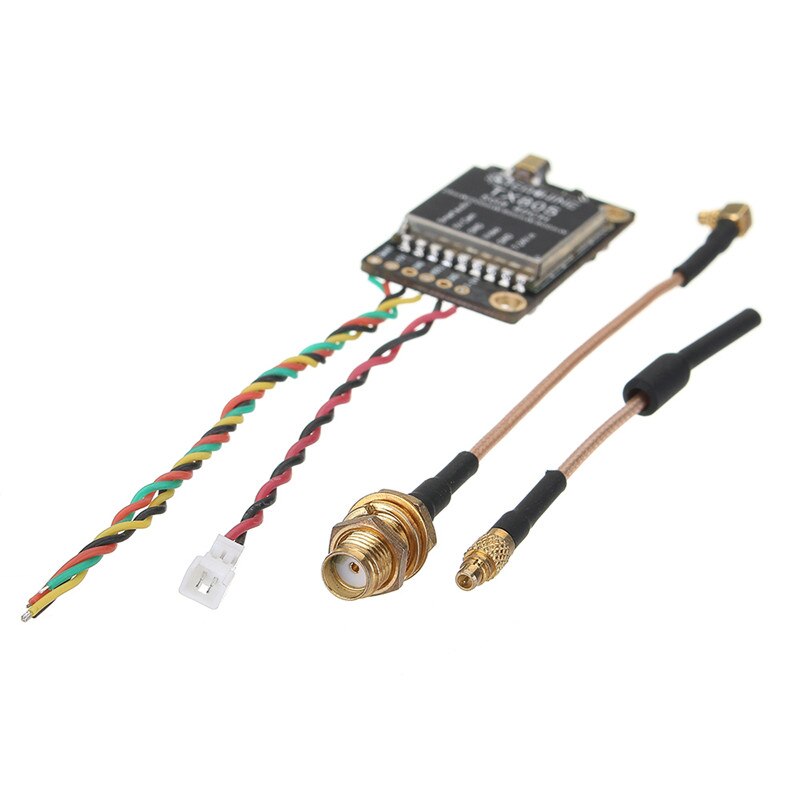

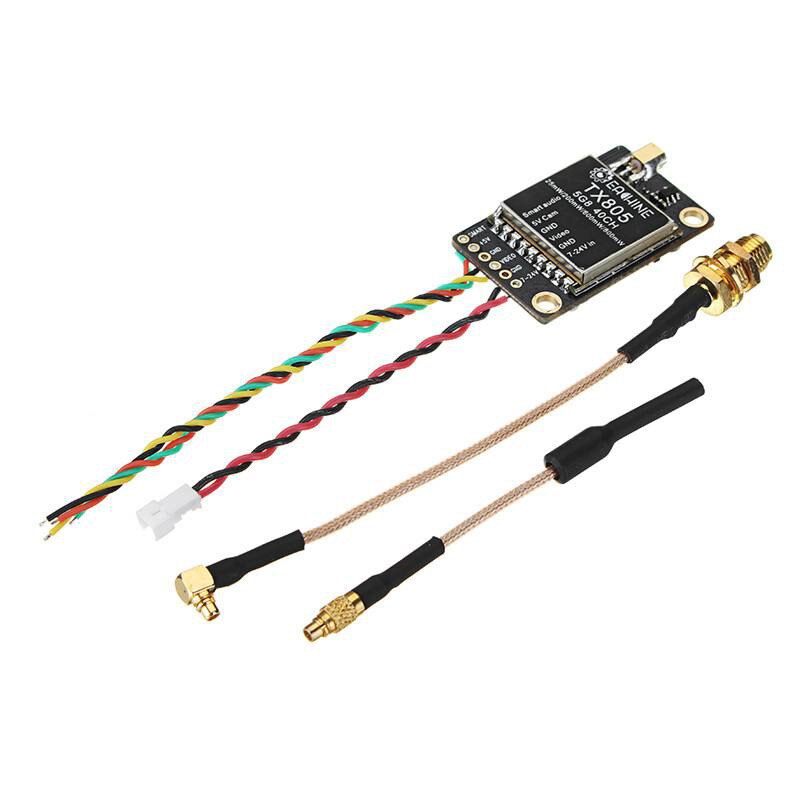

Antenna connector: MMCX

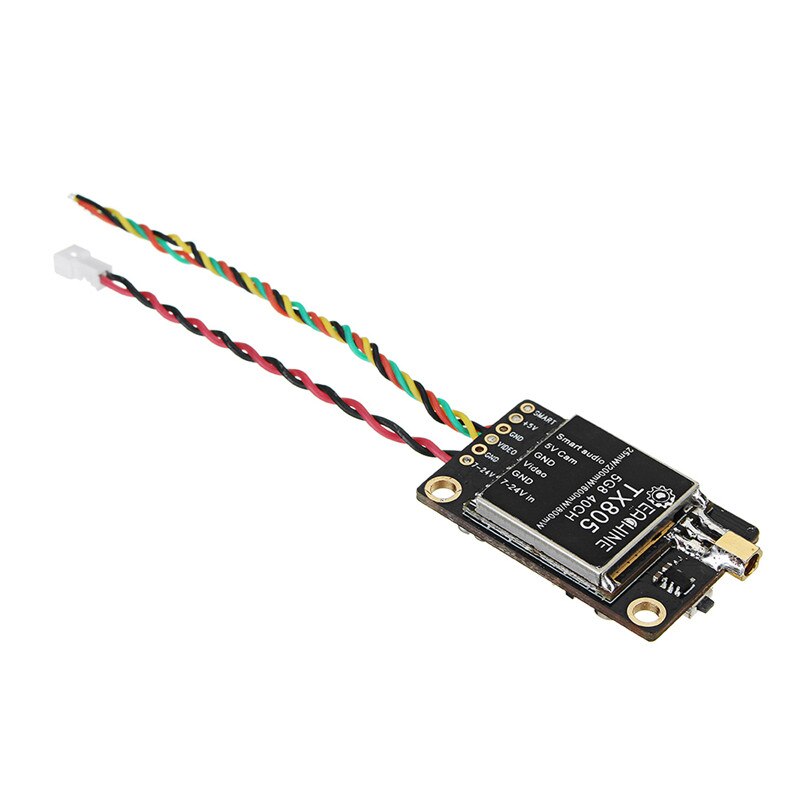

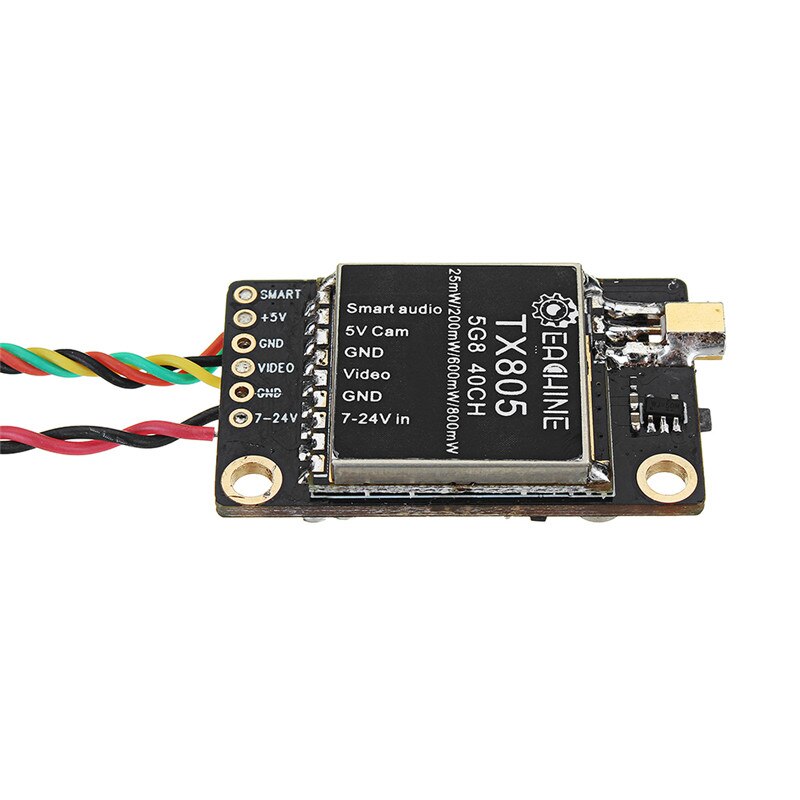

Cable connector: Solder pads
Dimensions: 36mm*22mm*5mm,30.5 stackable hole

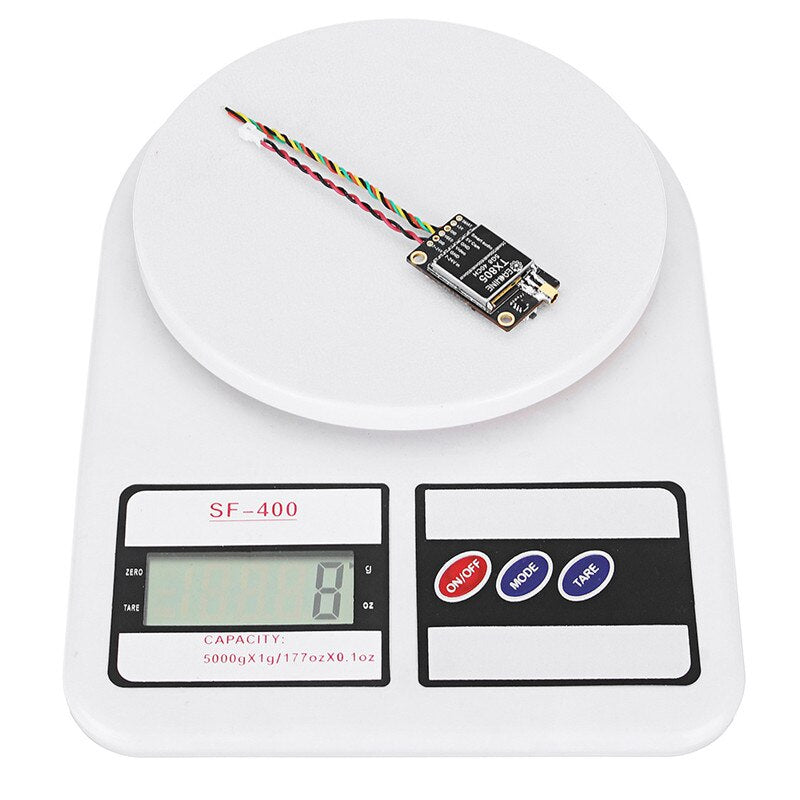

Weight: 8g(excluding antenna)
Features:
1. Pitmode
2. Smartaudio
3. 40 channels
4. Power failure memory
5. 25/200/600/800mw power switchable
6. Support OSD Configuring via Betaflight Flight Controller
7. 7-24V wide voltage,12V typical corresponding current value:
25mw-120mA 200mw-200mA 600mw-300mA 800mw-350mA
Button control Channel select mode
Channel select
Select channels by simple short presses.
Blue LED light on stands for CH1,short presses to change 8 channels sequentially.
For CH2/3/4/5/6/7/8,Blue LED flicker once,it won't light on.
Notice:Blue LED only light on for CH1
Band select
Press button for 2S,Red LED will flash,then short presses to select 5 bands.
Power select
Press button for 4S,Red LED will flash,then select power by simple short presses to select 25mW/200mW/600mW sequentially,For 200mW, Green LED flicker once,it won't light on;For 600mW Blue LED flicker once,it won't light on .Press the button again ,Red LED,Green LED and Blue LED lights together,Represents the highest power 800mW.
Notice:Red LED only light on for 25mW.
Pit Mode(0.01mW)
While in Pit Mode you can change channels and set power levels , but none of these changes will take effect until you quit Pit Mode.By default ,Pit Mode will send a very weak signal.
Two ways to exit pit mode:
Press button 12S until all 16 LED turned off and light on again to exit pit mode,or you can exit pit mode via Betaflight OSD.
Notice:The VTX has memory for settings,To change the settings ,please repeat steps as above.
