Update 180 Degree RC servo 20KG / 25KG / 30KG full metal gear digital servo baja Waterproof of Version 25T Arm for cars RC Toy
Drone Spark
Regular price
$20.99
$47.99

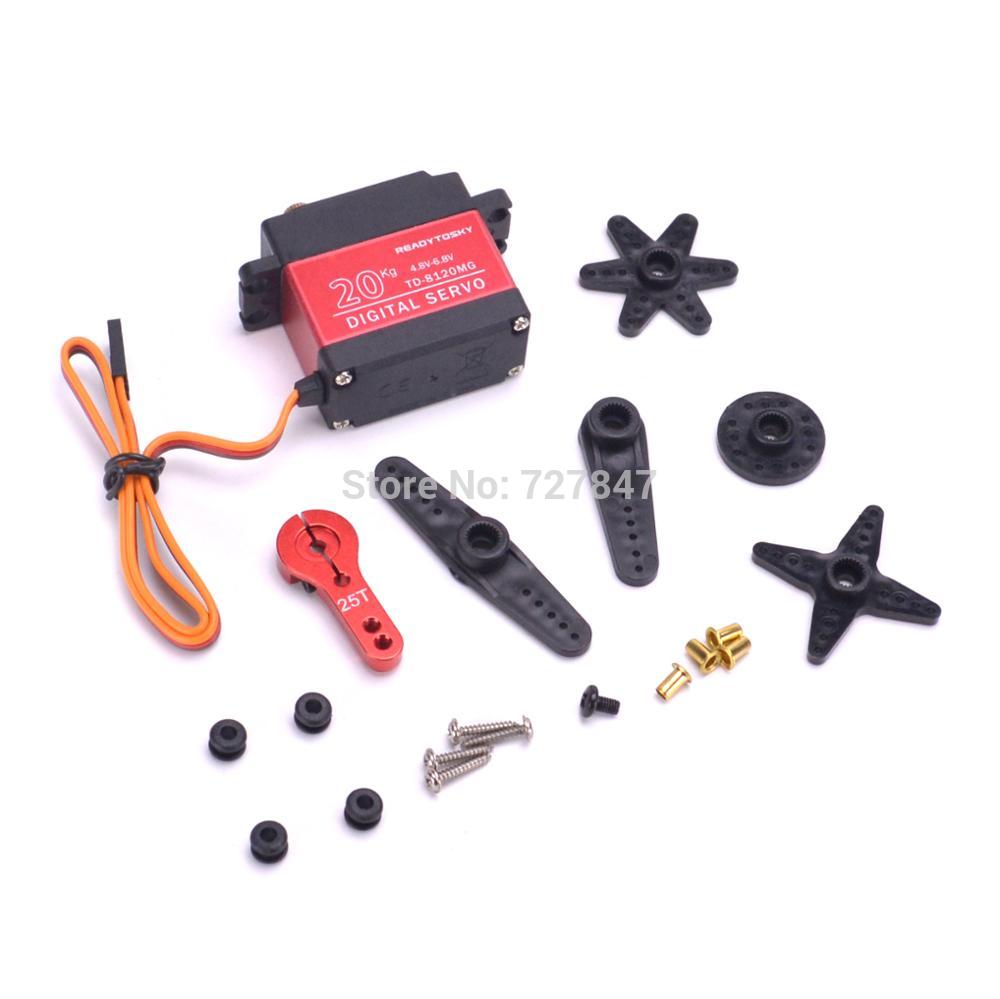

20KG Servo:
- High-precision metal gears with hard anodizing
- CNC aluminium middle Shell,
Control system :PWM control （1500 u-sec is the central point）
Working voltage:4.8V ~ 6V
Working temperature: -20C°~ +60C°
Torque :4.8V /17.2kg.cm
6.0V /20.3kg.cm
Idle speed :4.8V/0.15sec / 60 deg
6.0V/0.13sec / 60 deg
Steering angle: 0-180 degree ;
Idle current:4.8V/470mA 6.0V /650mA
Load current :4.8V/750mA 6.0V /950mA
Dead band :2usec
Lifetime:>15000 times without load
Moving angle:60°±10°
Drive type: MOS drive
Motor type:Cored motor
Potentiometer type:Direct drive
Signal booster type:Digital

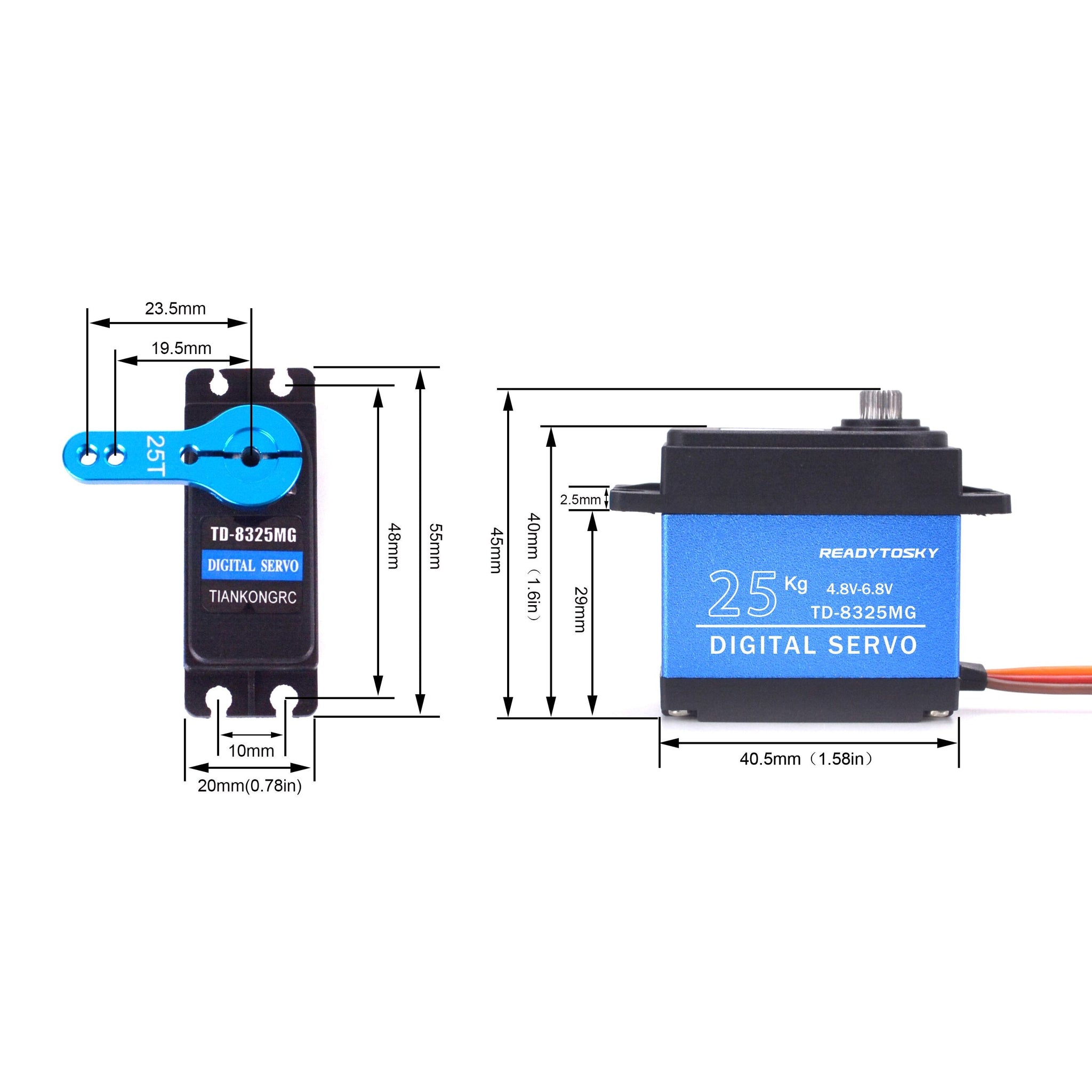

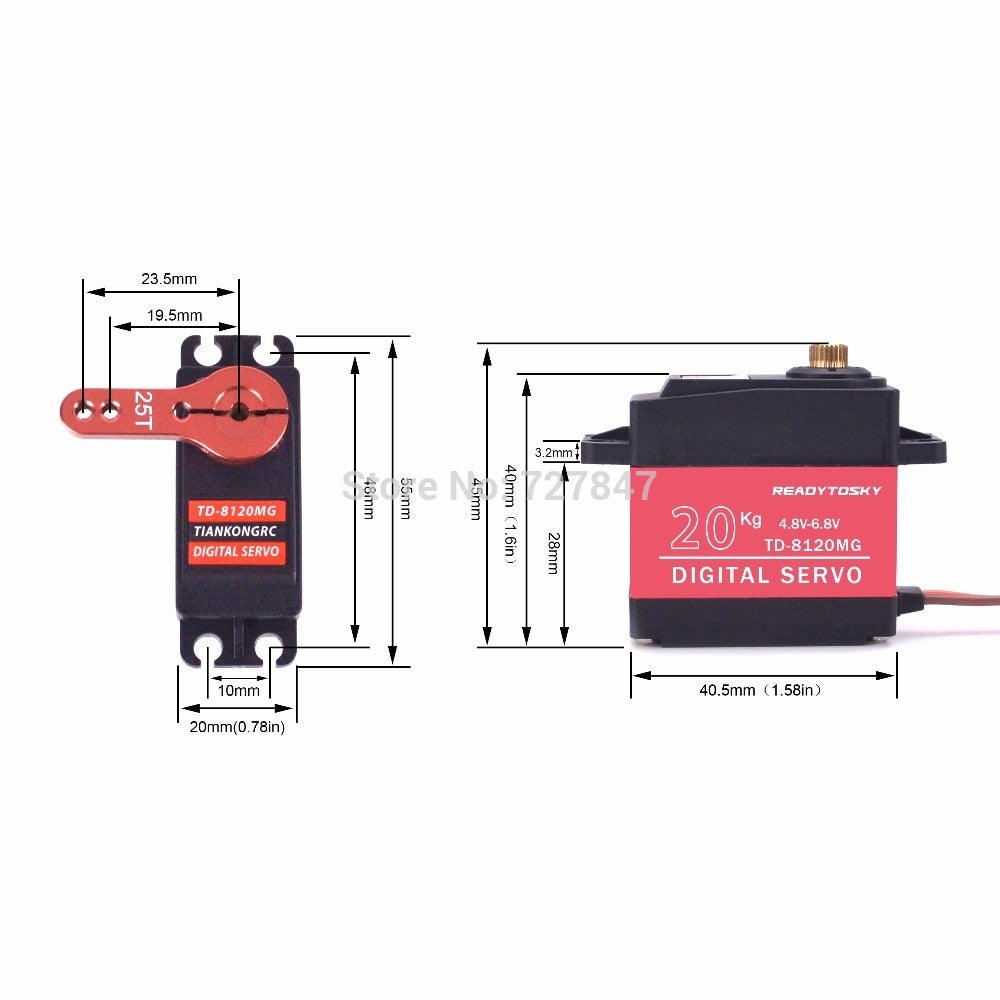

Size:40.5X20.2X40.3mm
Weight : 62g (without accessories)
Ball Bearing:2BB
Gear material:Metal gear
Case material: PA66+fiber40%
Wire length:260mm
Wire gauge No and plug type:26AWG，JR plug
Brown wire:Negative
Red wire:Positive
Orange wire:Singal
Application:RC car, RC airplane, Helicopter
25KG Servo:

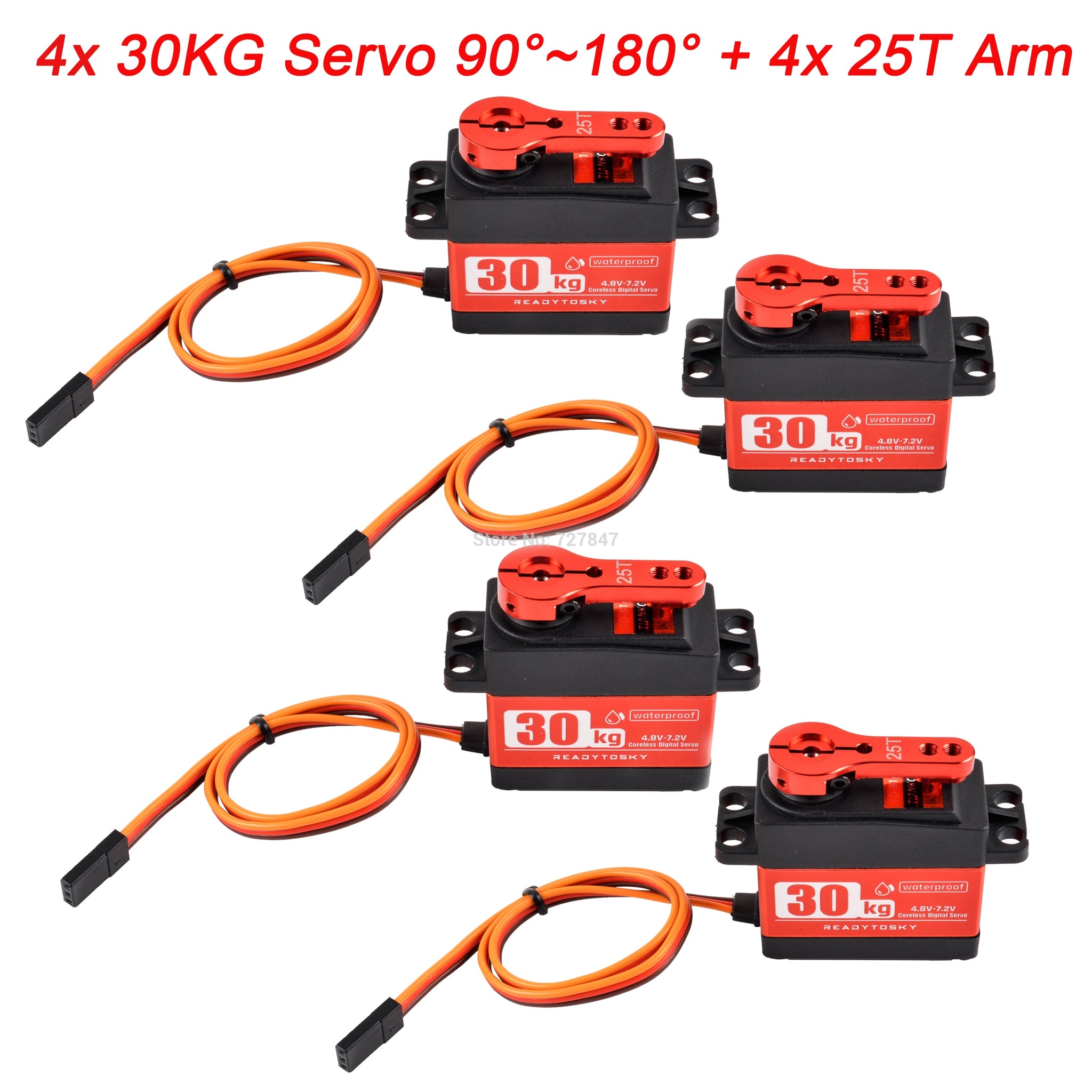

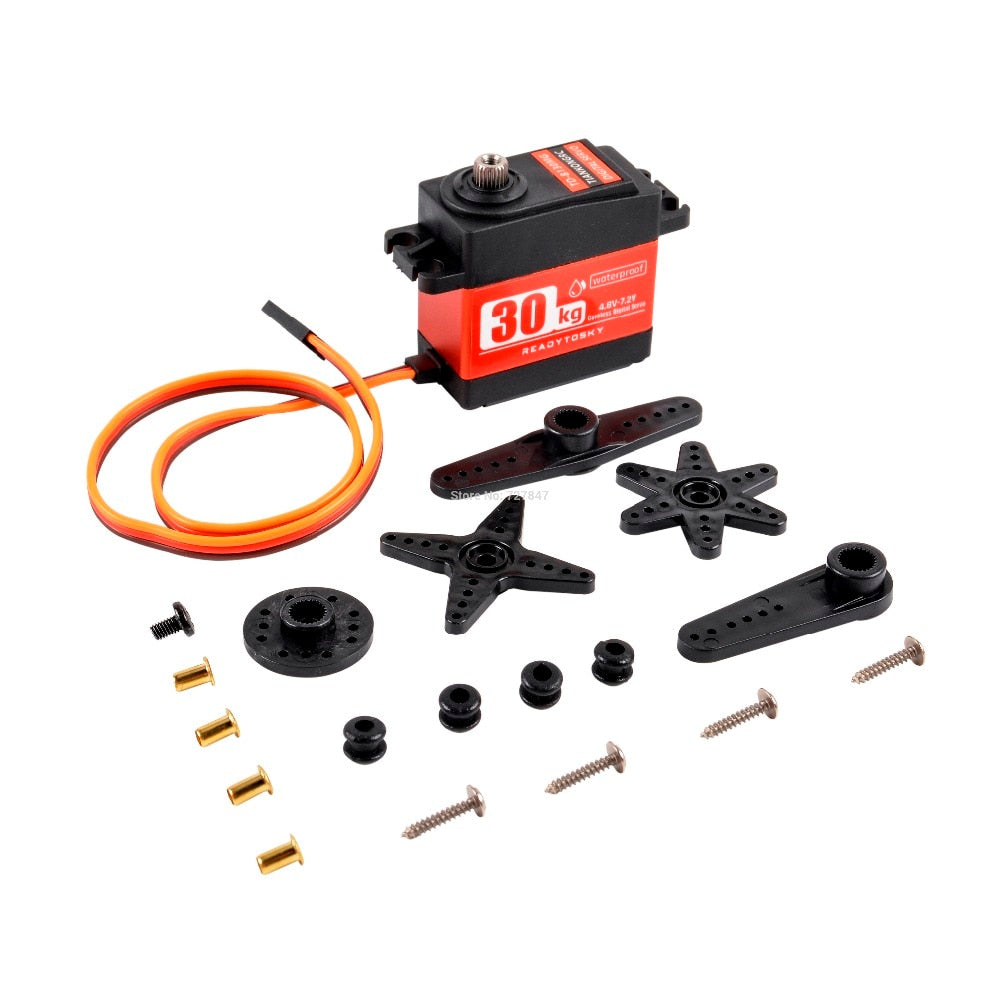

30KG 180 Degree Servo:
