WiFi/Bluetooth/Handle Control Mobile Robot Arm Robotic Gripper with Metal Tank Chassis for DIY RC Robot Model Kit

4 Road& 16 Road Servo control Board:

Features:

• compatible with arduino;

• simultaniously control 4ch DC motor and 16ch servo;

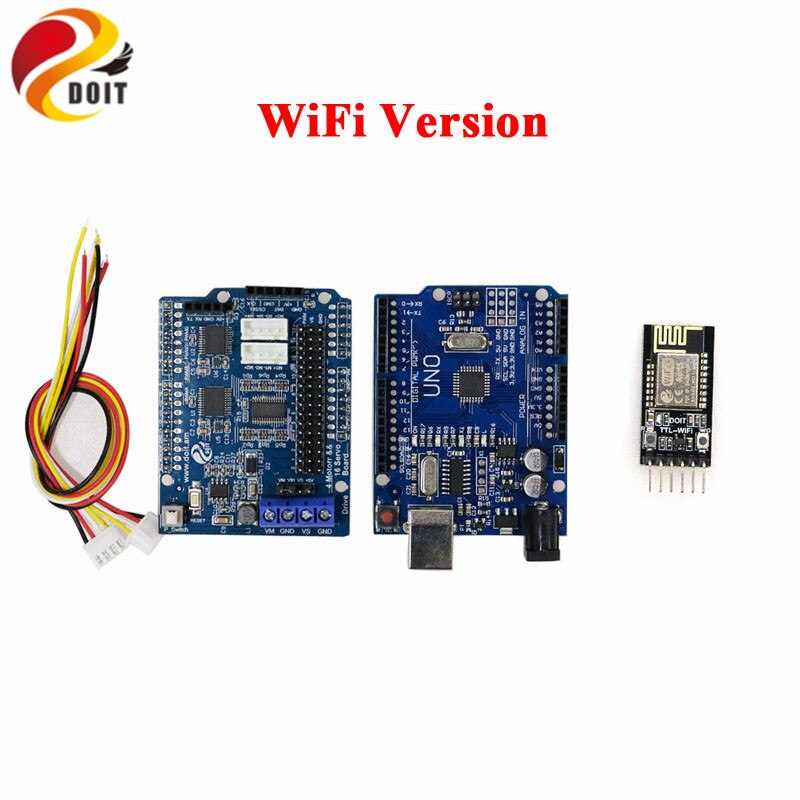

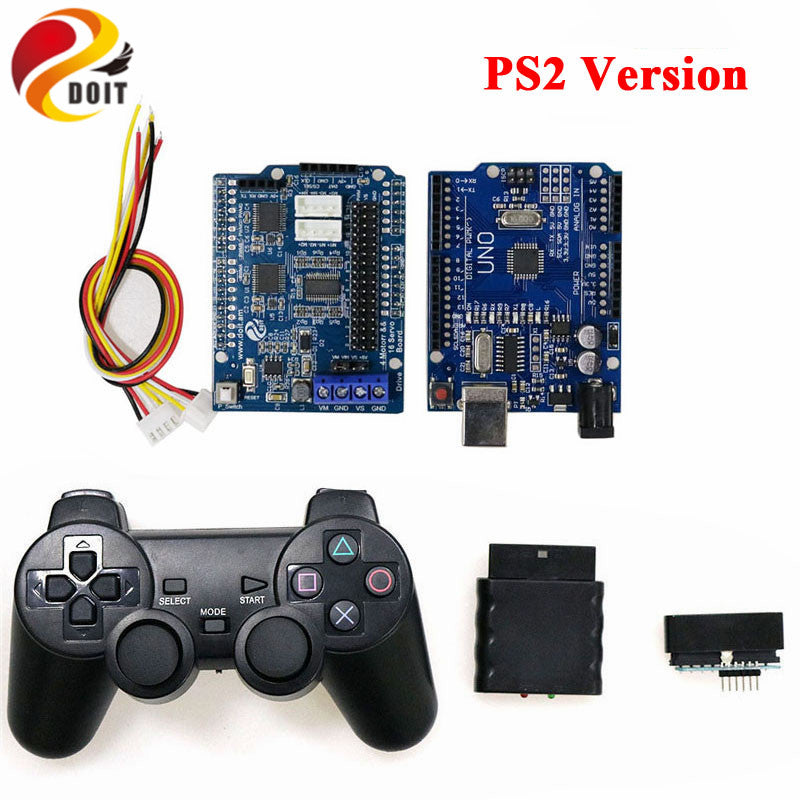

• can controlled by wifi (DT-06), Bluetooth (HC-06), and PS2 station;

• is the best choice for robot tank car chassis and robot arm;

Module pin description and schematic:

• 16 road servo and 4 road motor drive board, using TB6612 4 road drive, PCA9685 for 16 road servo control.

• Bring out the Arduino UNO I/O pin;

• The maximum input voltage of the power supply is 15V/DC;

• Reserve Bluetooth & WIFI module sockets;

• Reserve PS2 handle socket;

• 4 road DC motor drive, single-channel maximum drive current 1.2A average / 3.2A peak;

• 16 road servo drive pin, power supply can be switched by external/internal power supply of jumper cap;

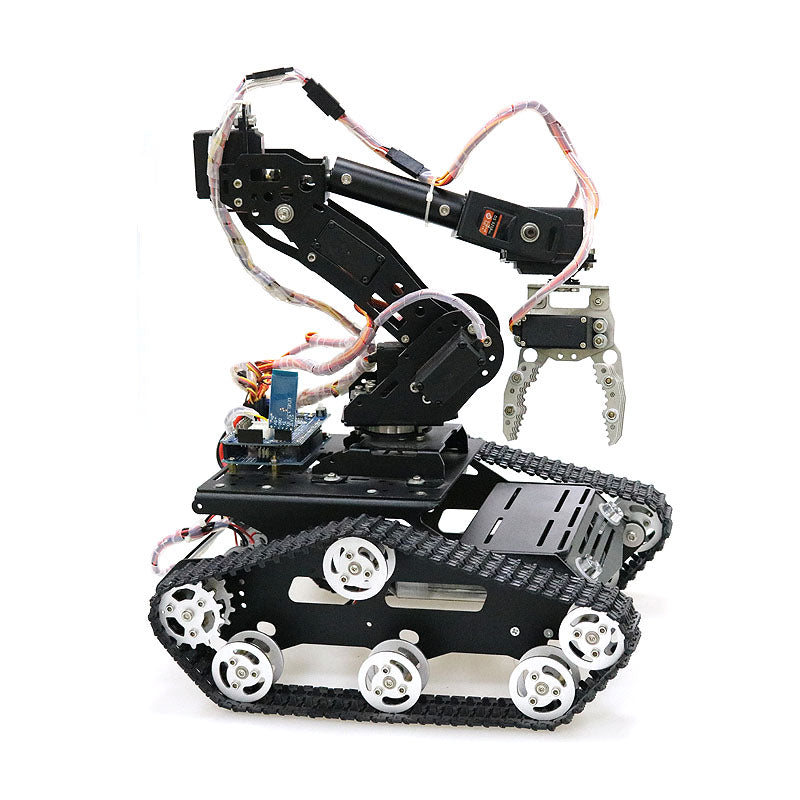

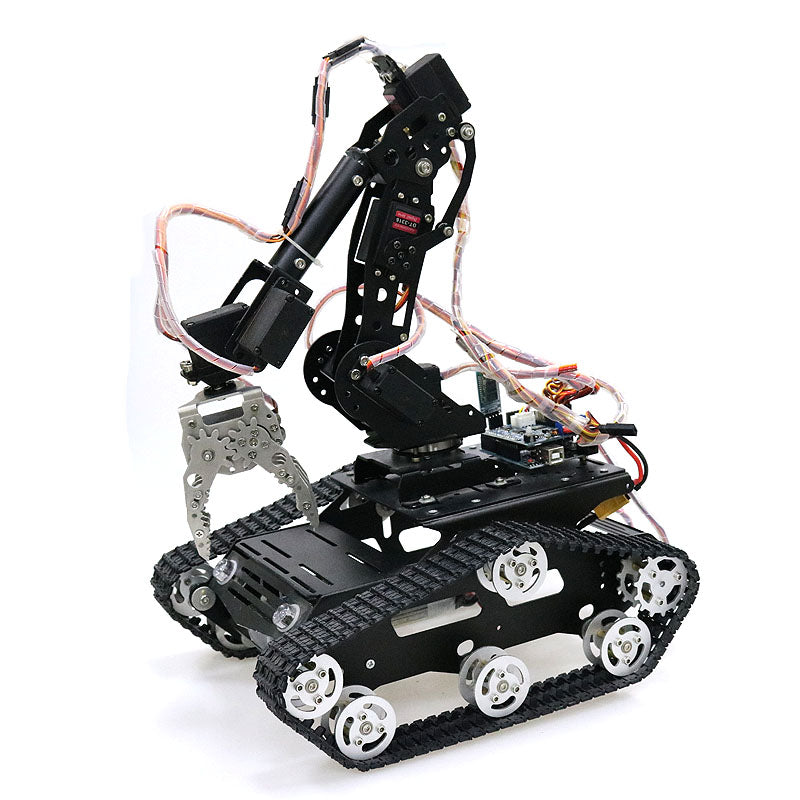

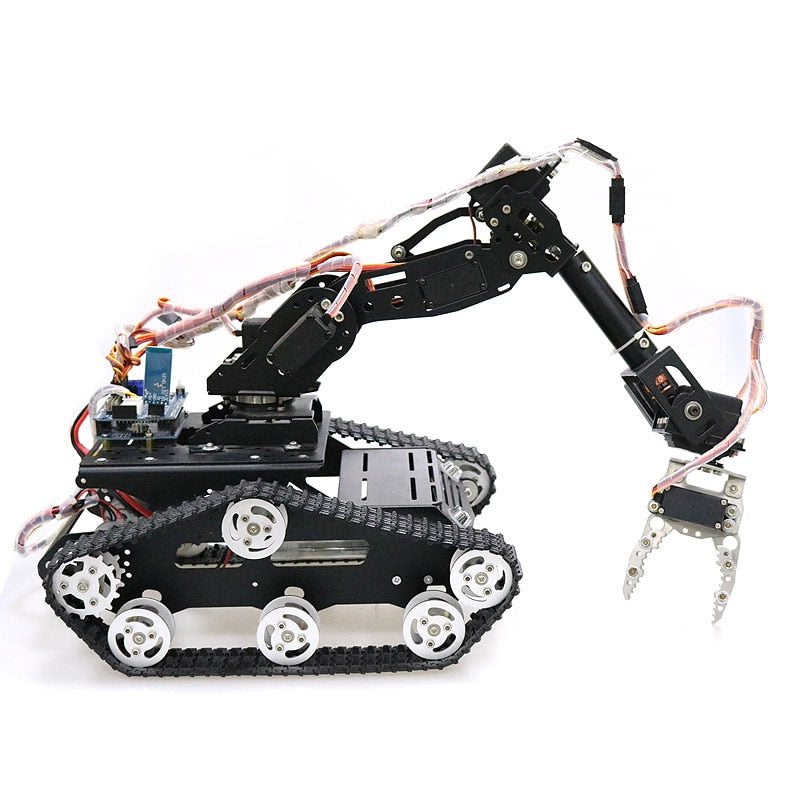

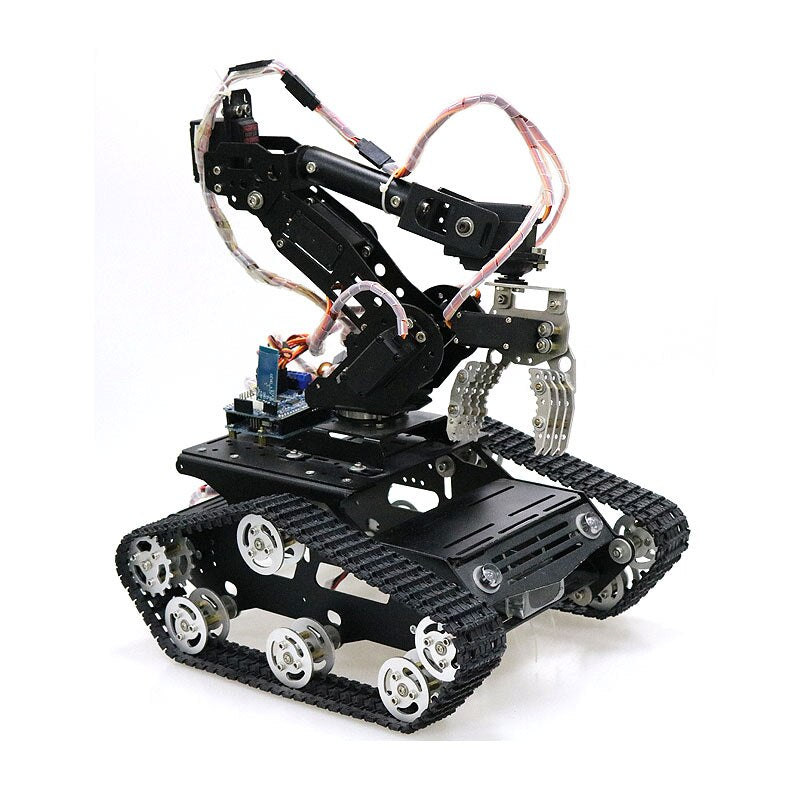

Images:

Shipping List:

• Chassis: 1 set (9v motor)
• Robot arm: 1 set(8pcs MG996r servo)
• Wifi/Bluetooth/Handle Control Kit: 1 set (optional)

Note:

• We send the tank chassis color randomly. If you need the specify color, pls leave a message when you order.
• The tank chassis is unassembled. Pls see the manual link: wiki.doit.am or contact us to get the manual.
• Not included the battery.
