WiFi/Bluetooth/PS2 Control RC 4wd Robot Tank Chassis Kit with UNO R3 Board+ Motor Driver Board for Arduino DIY

Option introduction: B-WiFi Control means that the color of tank chassis is black, the control kit is wifi control kit. S-WiFi Control means that the color of tank chassis is silver, the control kit is wifi control kit.

Chassis parameters:

• Size: 37.5*24*10.5cm (length * width * height)
• Net weight: 1.43kg
• Material: aluminum alloy
• Track: engineering plastic (4.1cm wide, freely removable)
• Control method: This shop has wifi, Bluetooth, handle control, need to purchase separately

Manual link: https://github.com/SmartArduino/SZDOITWiKi/wiki/2-4ch-DC-motor-%26amp%3B-16ch-servo-shield---motor-and-servo-shield

Control kit:

Motor Introduction:(Click the motor picture to read more parameters.)

12V 350rpm motor

Delivery list: (The tank chassis is unassembled, provide assembly instructions)

• Panel: 1 set
• Motor: 4
• Shock-absorbing driving wheel: 4pcs
• Non-damping bearing wheel: 8pcs
• Shock-absorbing track: 2 pcs(freely removable)
• Screw: 1 set
• Gift: 18650 battery box, hex wrench

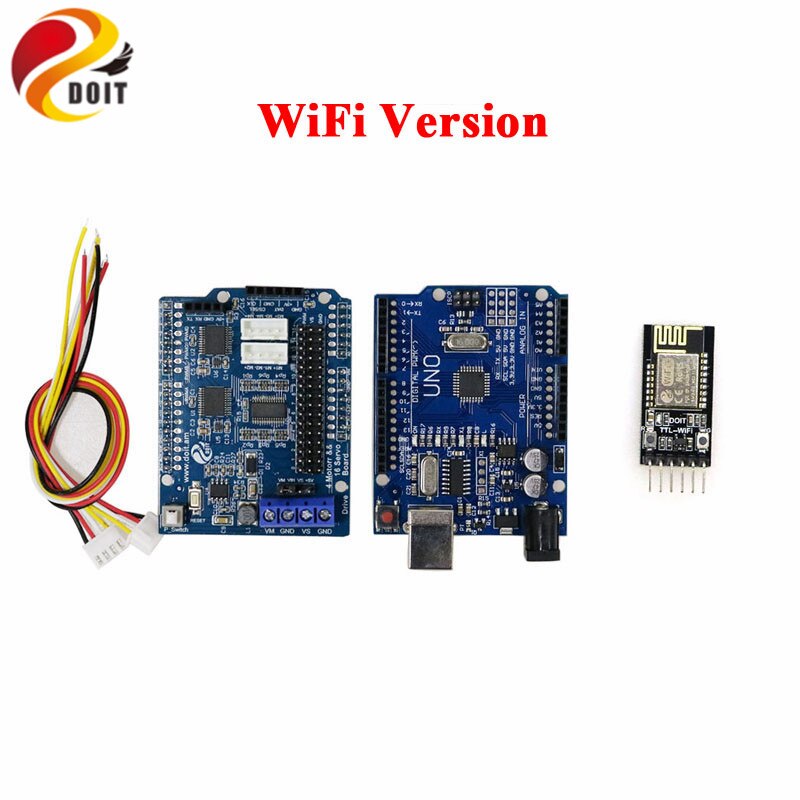

• WiFi Control kit: 1set(Optional)

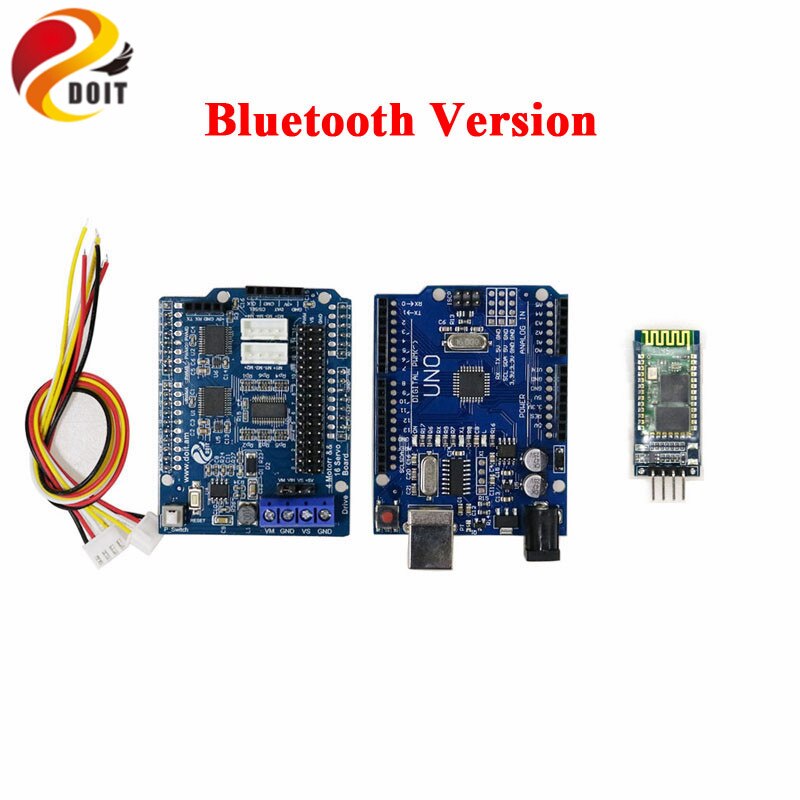

• Bluetooth Control kit: 1 set(Optional)

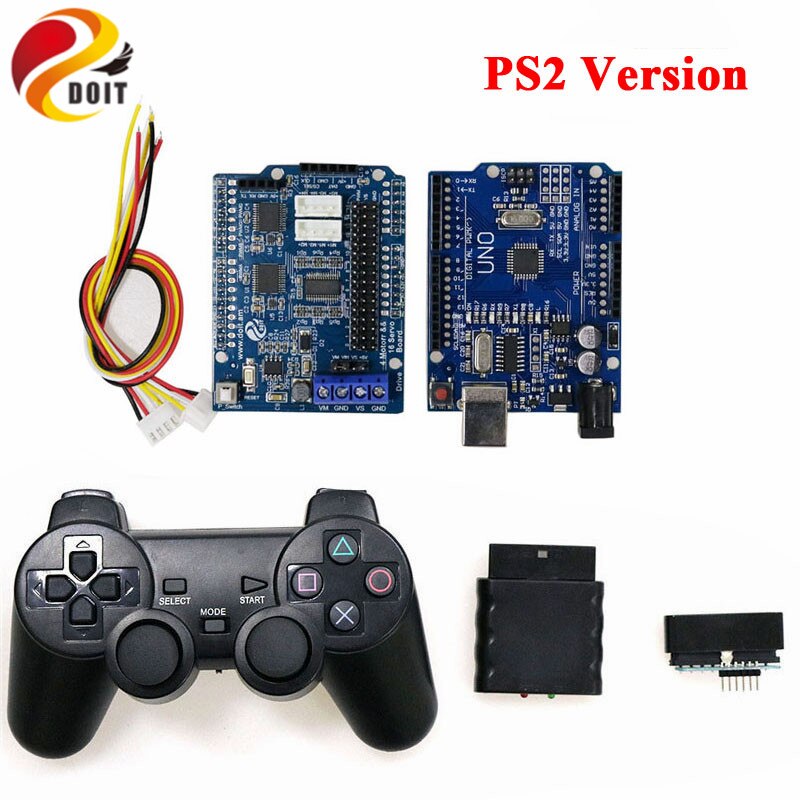

• PS2 control kit: 1 set(Optional)

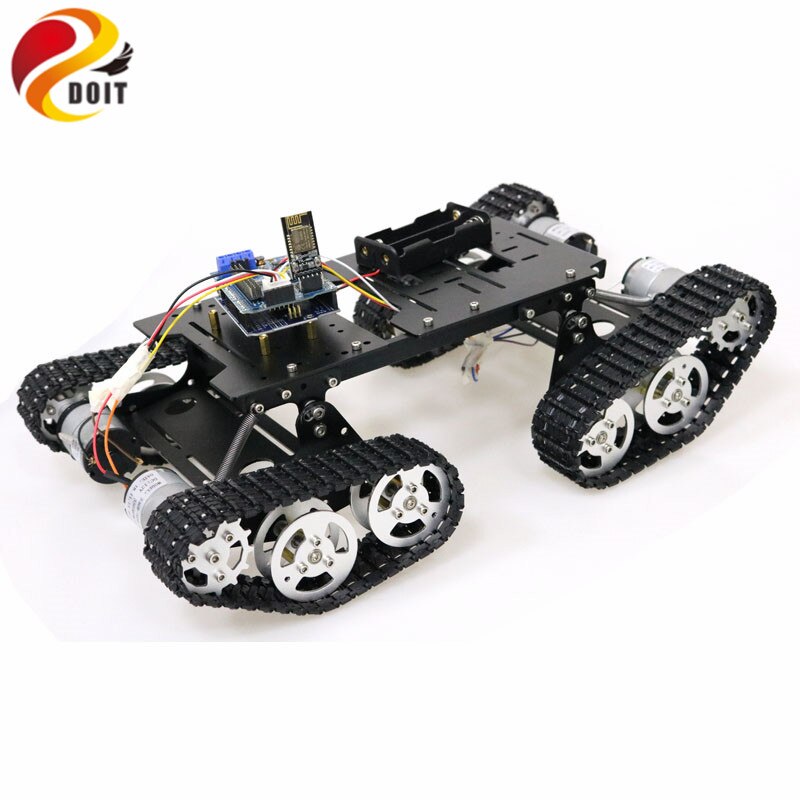

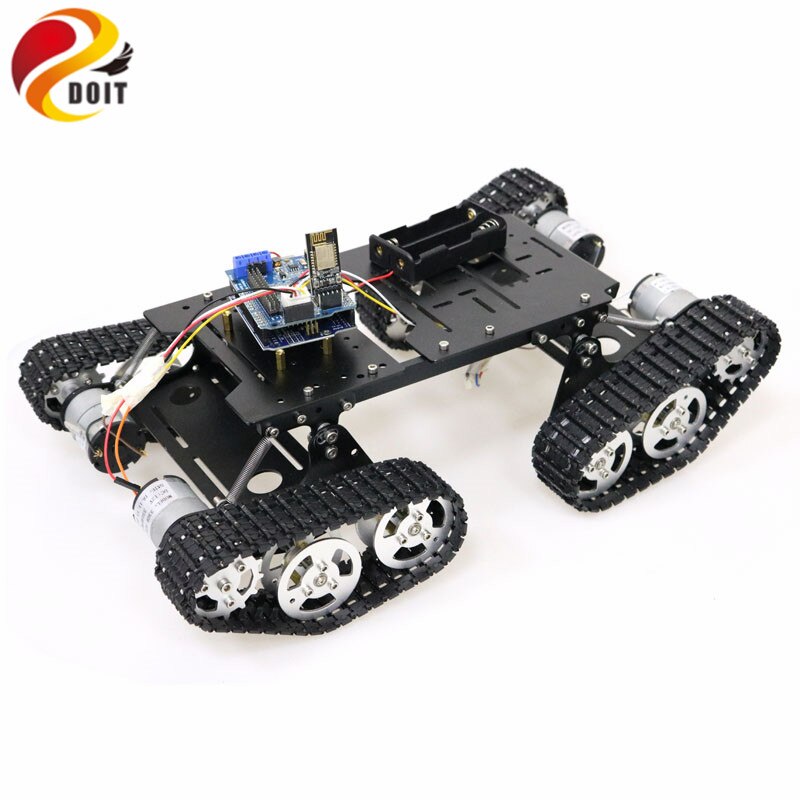

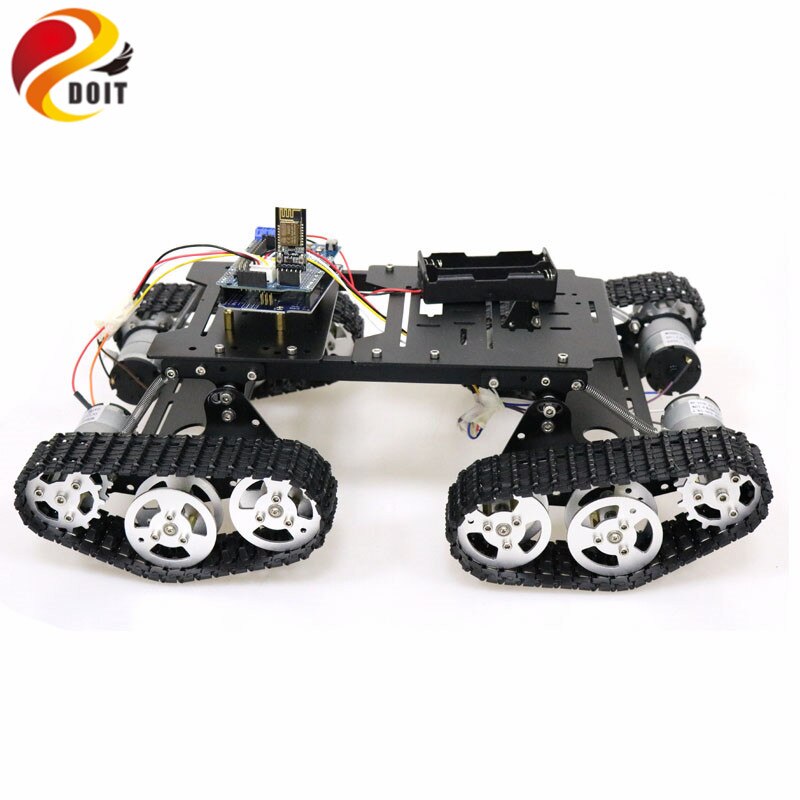

Product Images:
