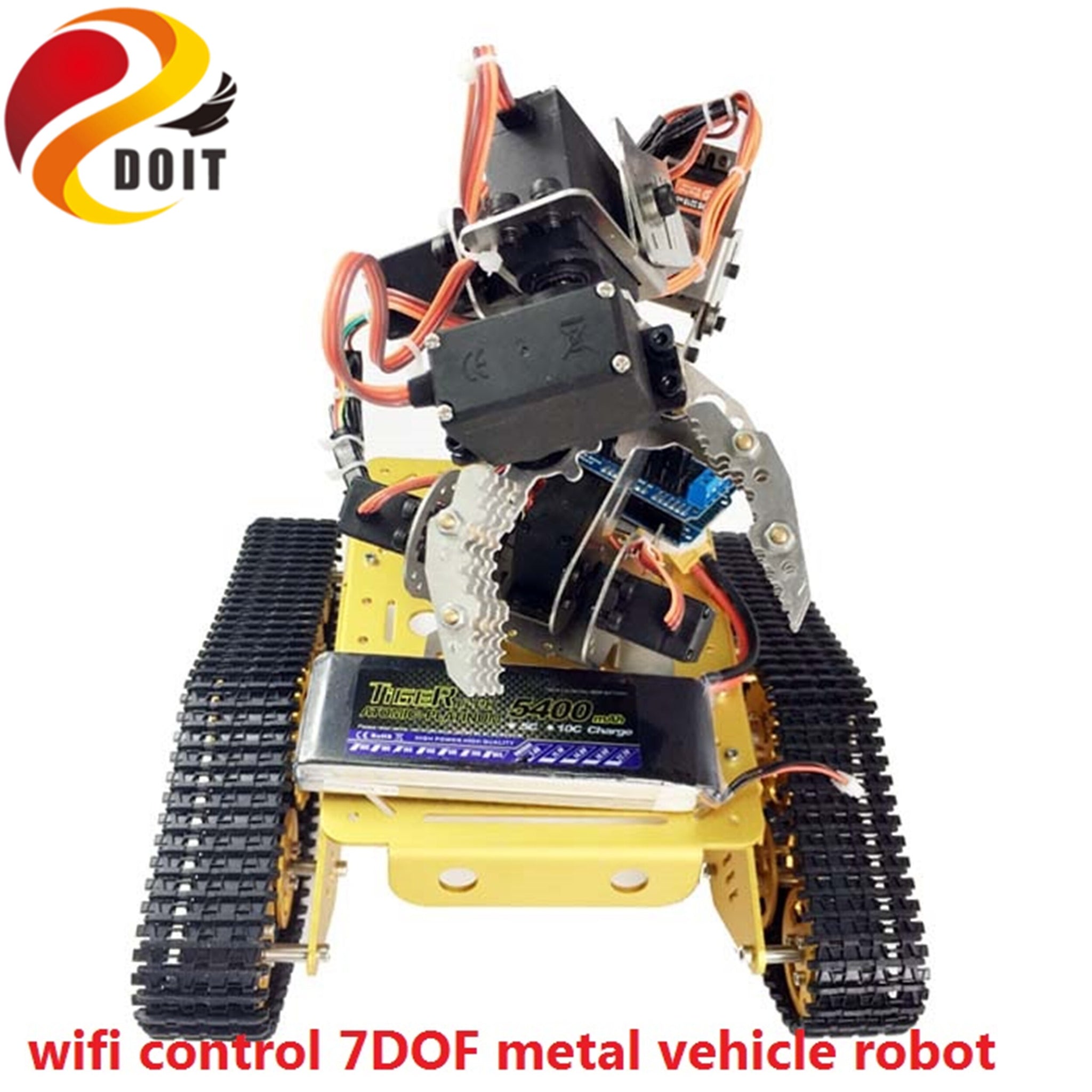

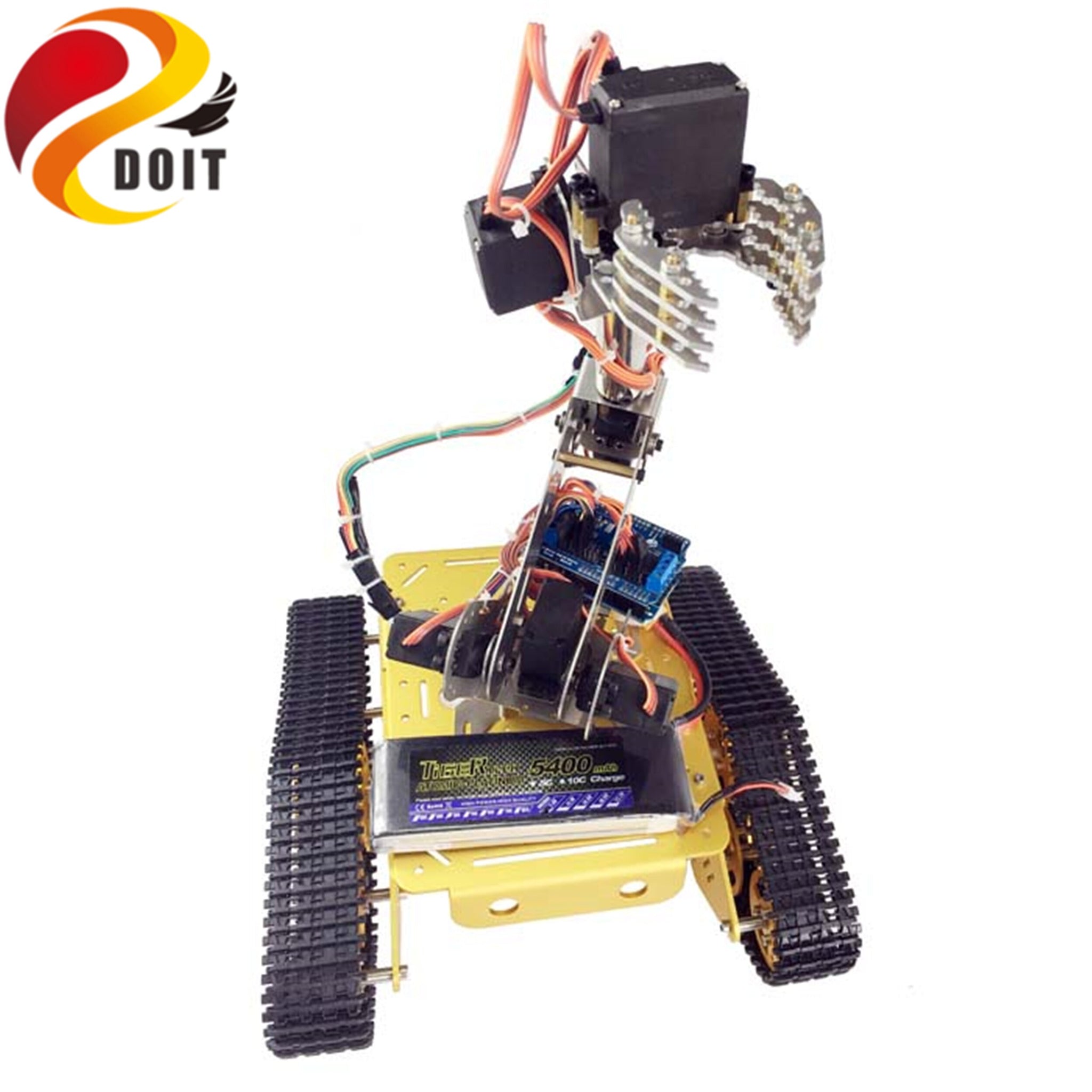

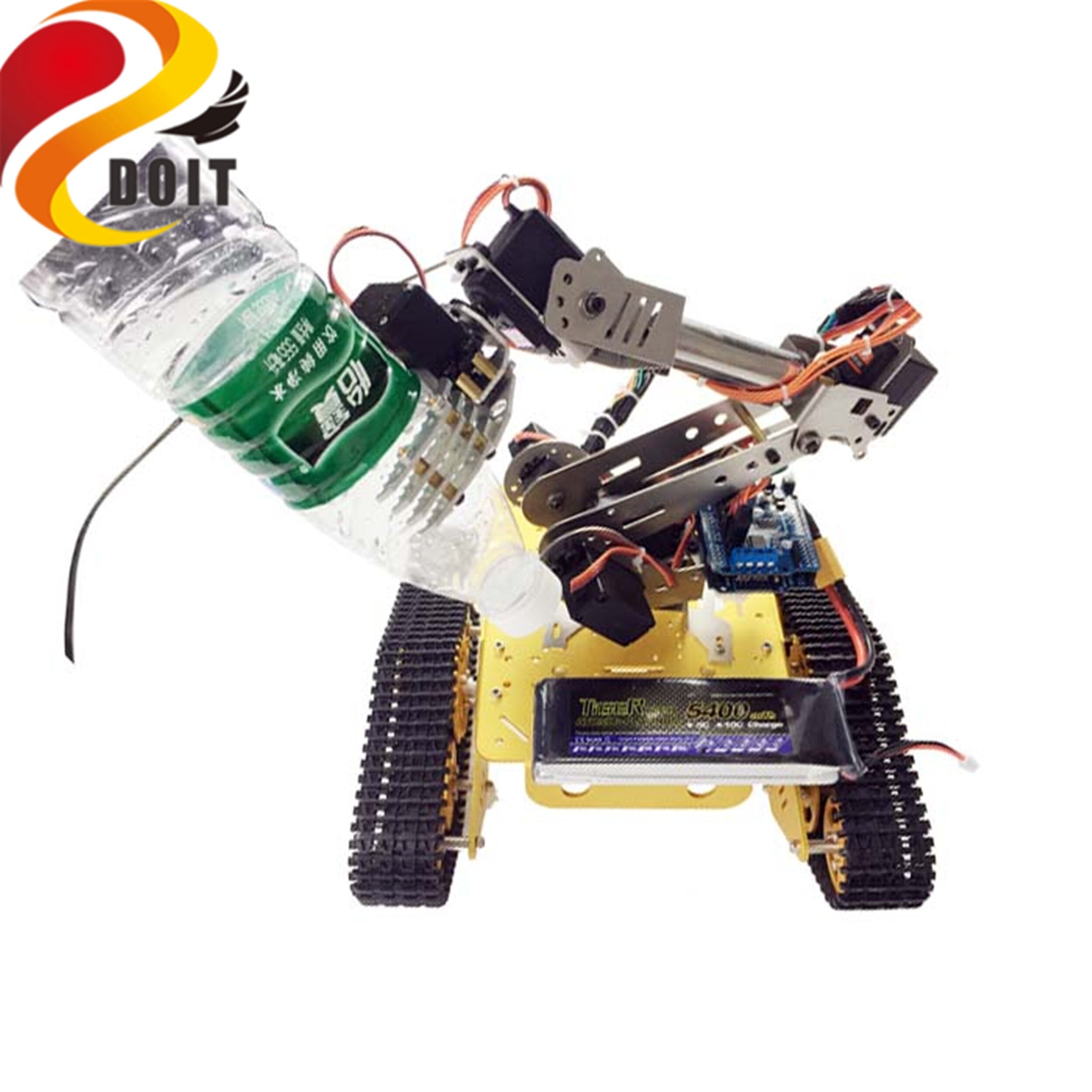

WIFI Control 7DOF Metal Vehicle Robot 7-Axis Robotic Arm with Gripper+T300 Smart Tank Chassis Kit Motors Servos Educational DIY

T300 Tank chassis parameters:

• Name: T300 intelligent tank chassis
• Material: aluminum alloy
• Surface treatment: sandblasting oxidation
• Color: gold or silver
• Track: engineering plastics
• Size: about 290*270*100mm (length * width * height)
• Weight: 1.6kg

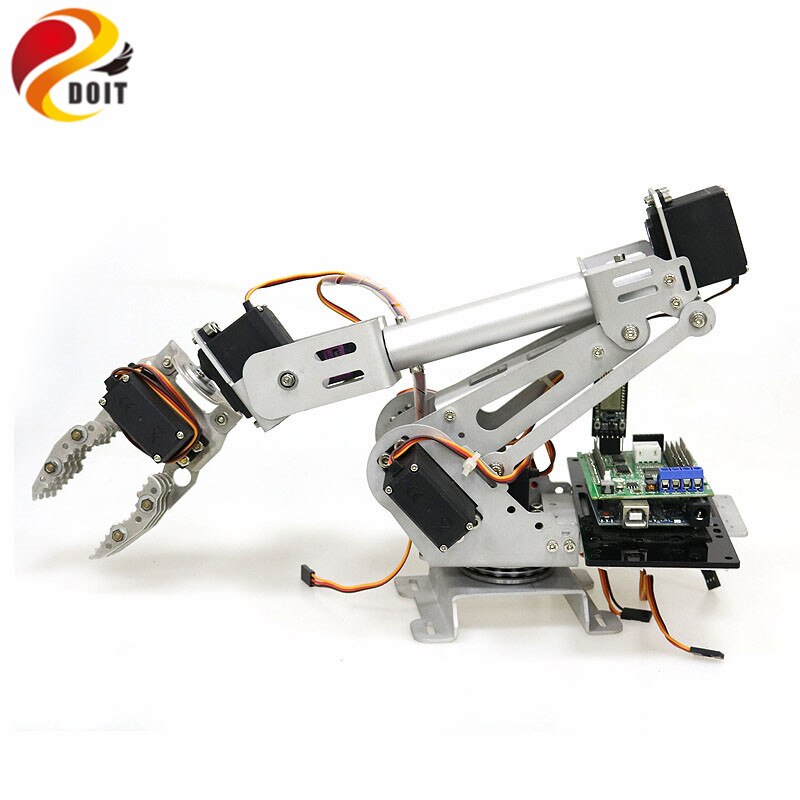

7-axis robot arm:

• The 7DOF robot arm is made of aluminum alloy, and the bottom joints are made of metal gear servo MG996R and DT3316 digital servo. The force is large and the structure is beautiful and practical.
• The robot arm will send the latest version：

Metal gripper parameters:

• Material: hard aluminum alloy
• Weight: about 40g
• Maximum angular separation: 86mm
• Overall length: 83mm (the overall longest length when the paw is closed)
• Overall width ①: 150mm (maximum overall width when the paw is open)
• Overall width ②: 55mm (maximum overall width when the paw is closed)
• Overall thickness: 54mm (maximum overall thickness with servo paws)

Servo parameters:

MG996R servo:

• Name: MG996R
• Net weight: 55 g
• Size: 40.7*19.7*42.9 mm
• Pulling force: 9.4 kg/cm (4.8 V), 11 kg/cm (6 V)
• Reaction rate: 0.17 sec / 60 degree (4.8 V ), 0.14 sec / 60 degree (6 V)
• Working voltage: 4.8-7.2 V
• Working temperature: 0°C-55°C
• Gear form: metal gear
• Working dead zone: 5 us (microseconds)

DT3316 servo:

• Torque (4.8V): 12.0kg/mg
• Torque (6.6V): 15.0kg/mg
• Speed: 0.07 seconds (4.8V) │0.06 seconds (6.0V)
• Working voltage: 4.8v 6.6v DC voltage
• Weight: 55g
• Bearing type: ball bearing × 2
• Motor type: strong magnetic high speed motor
• Gear type: copper and aluminum
• Working temperature: -20 ° C --- +60 ° C
• Working frequency: 500μs/2500hzQuestion

Control type:

• Control type: wifi control
• You can control the movement of the robotic arm and the car at the same time through the mobile app, we will provide the app.

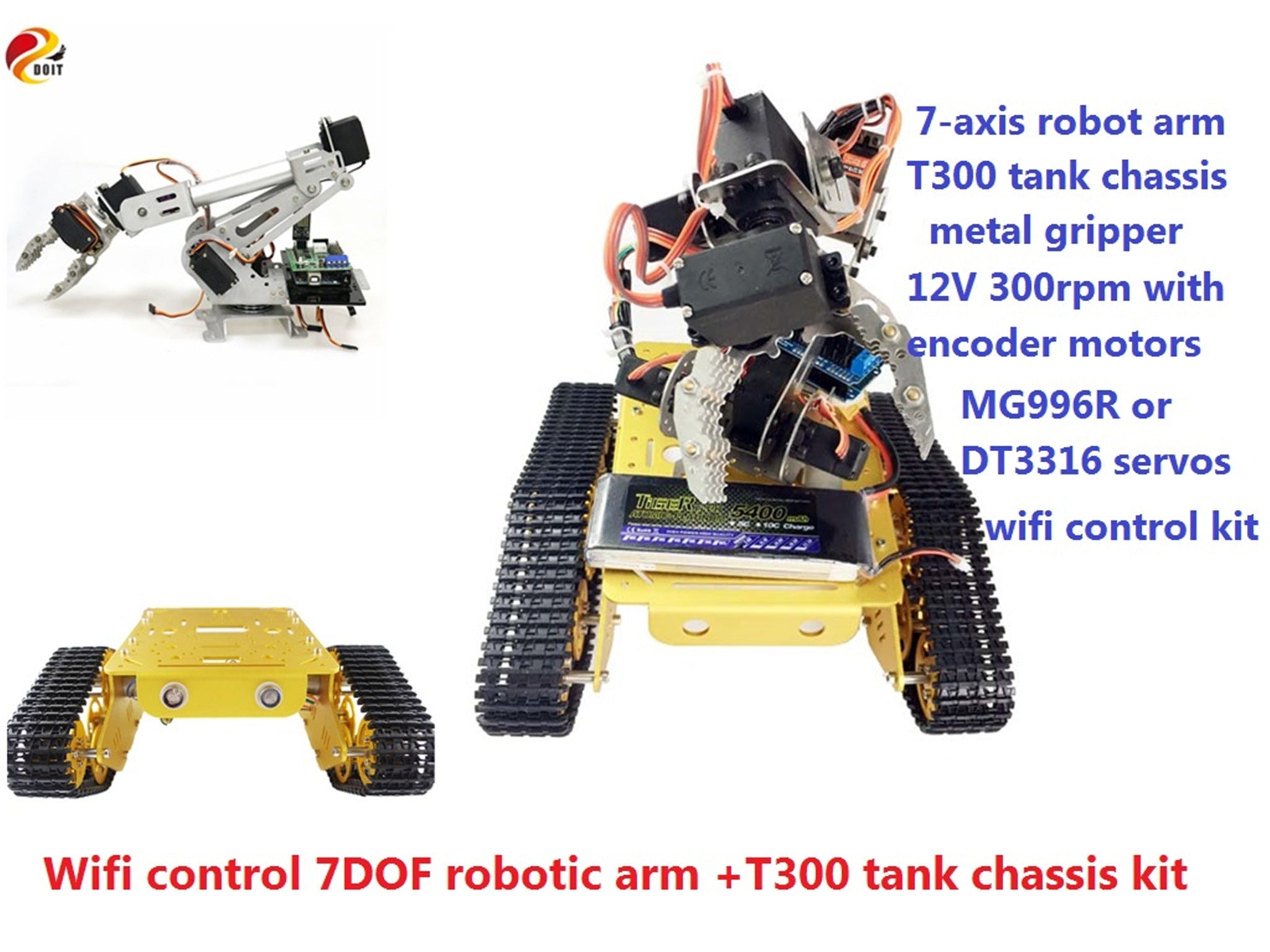

Shipping list:

• 1 × T300 tank chassis (with 12V300rpm with encoder motors)
• 1 × 7-axis robot arm bracket kit
• 1 × wifi control kit
• 1 × Gripper
• 7pcs MG996R servo/7pcs DT3316 servo/no servo (optional)
• Free: LED light, battery box, hex wrench

Note:

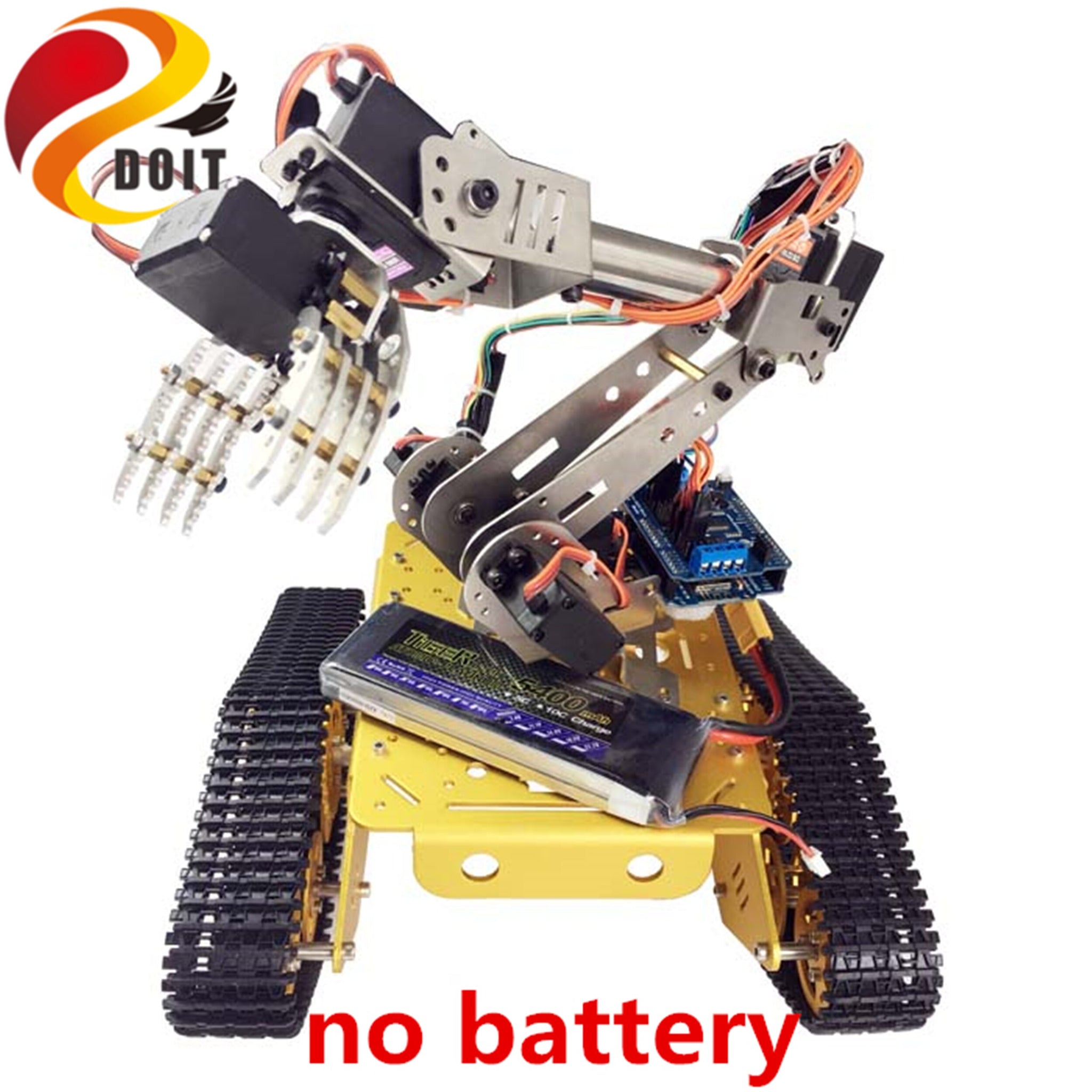

• This product does not include a battery;
• The color of the arm: black/silver; the color of the tank chassis: gold/silver, optional, please specify when placing the order;
• In order to facilitate transportation, the product is not assembled.
• More documents can be downloaded at wiki.doit.am.
