Specification

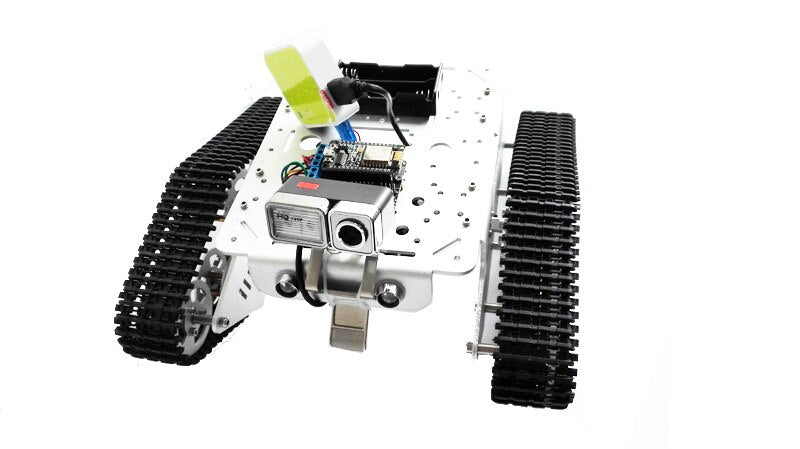

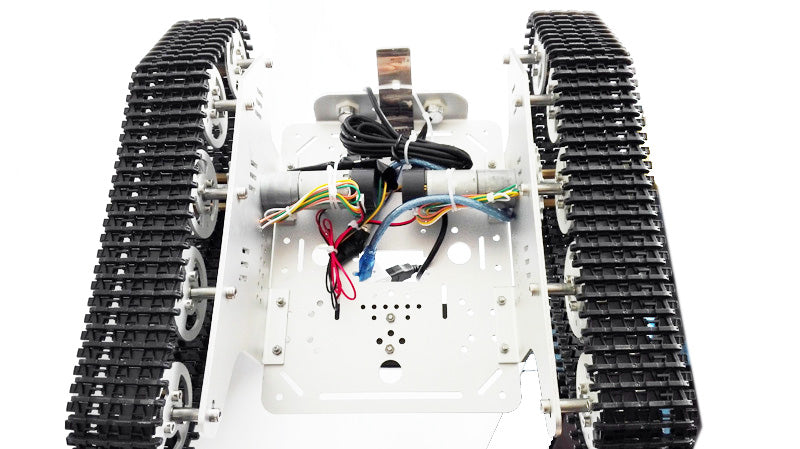

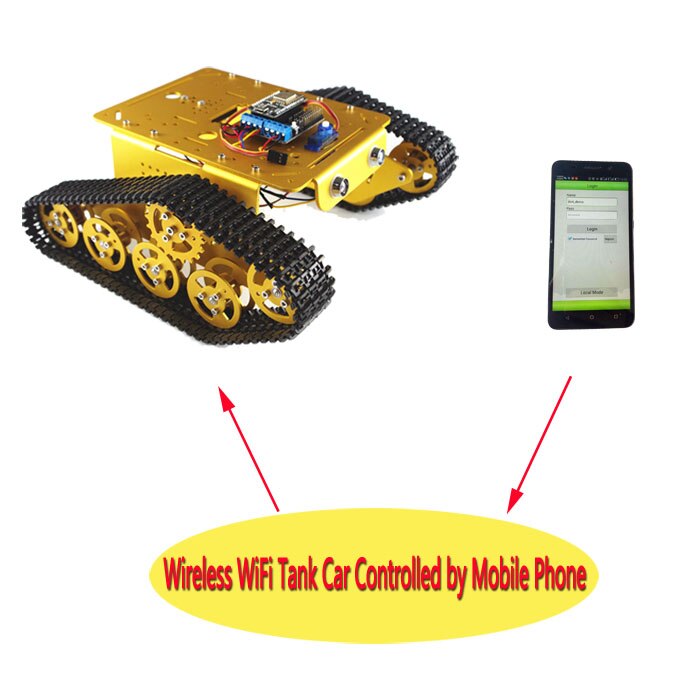

• Name: T300 smart tank chassis

• Material: Aluminum

• Oxidation: Yes

• Color: gold or silver

• Track: Plastic

• Size: about 290 * 270 * 100mm (L * W * H)

Motor Parameters

• Name:25mm gear motor

• Output speed: 150±10%rpm

• No_load current: 200mA (Max)

• Stall current: 4500mA(max)

• Stall torque: 9.5kgNaN

• Rated speed: 100±10%rpm

• Rated torque: 3000gNaN

• Rated current: 1200mA (Max)

• Noise :56dB

• Working voltage: 9V

• Outside Shaft Length: 14.5mm

• Shaft End Play: 0.05-0.50mm

• Screw Size: M3.0

• Dia. Of Shaft phi 4mm, D3.5

• Encoder: 2pulses/circle

• Working voltage for sensor: 3-5V.

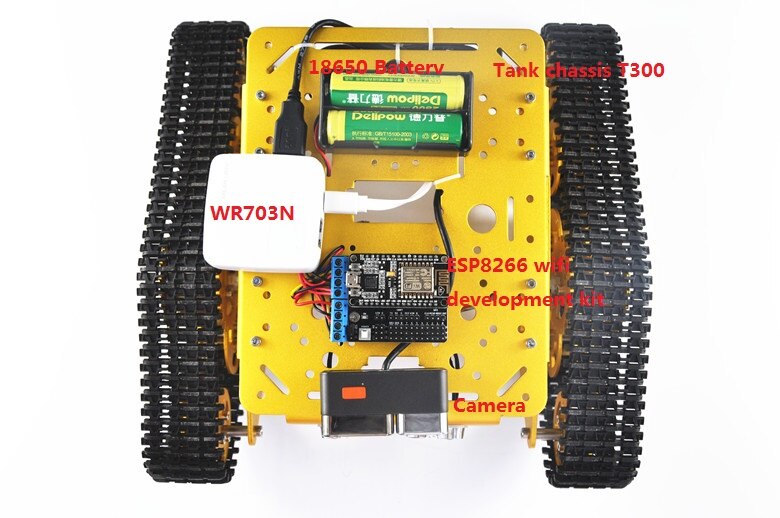

Shipping List

• Tank chassis: 1  PC;

• Wireless router: 1  PC;

• ESP8266 development board kit: 1 set;

• HD camera: 1  PC;



Note

• For the shipping convenience, the tank/car chassis is unassembled.

• Track can be connected by any length with a needle.

• The motor paramter can be seen at

Pictures
