Introduction

• This Arduino uno development kit, is designed based on the Arduino uno board, together with 2-channel & 16-channel servo shield board to drive the tank and 2WD car. In addition, There has wireless contoller and receiver, you can control the tank car via wireless control.

• Provide source code, App and user manual.

• More details, please visit: https://github.com/SmartArduino/SZDOITWiKi/wiki to download the source code and the documents.

mini T100 tank chassis:

• Name: mini T100 Tracked Tank Chassis
• Material: Aluminum Alloy
• Surface treatment: sandblasting oxidation
• Color: Golden yellow、silver、black (for optional)
• Track: Engineering plastic
• Size: About 185*200*60mm(Length*width*Height)
• Weight: 0.65kg
• Design load: 5kg


Motor type:

• 33GB-520 Motor,
• 9V&150RPM: has Hall sensor
• 12V&320RPM: No Hall sensor.

Motor parameters(33GB-520 Motor):

• Rated Voltege: DC12V
• No load Current: 100mA
• Voltage: 6-12V
• No load Speed: 170-350r/min
• Weight: 100g

Motor parameters(25mm 9V DC Motor):

• Name: 25mm gear motor
• Output speed: 150±10%rpm
• No_load Current: 200mA (Max)
• Stall current: 4500mA(max)
• Stall torque: 9.5kgNaN
• Rated speed: 100±10%rpm
• Rated torque: 3000gNaN
• Rated Current: 1200mA (Max)
• Noise: 56dB
• Working voltage: 9V
• Outside Shaft Length: 14.5mm
• Shaft End Play: 0.05-0.50mm
• Screw Size: M3.0
• Dia. Of Shaft phi4mm, D3.5
• encoder: 2 pulses/circle

Motor parameters(12V DC Motor)

• Voltage: 12V DC
• RPM: 320RPM
• Current: 0.55A
• Diameter: 25mm
• Height (excl. shaft): 68mm
• Shaft length: 9.5mm
• Shaft diameter: 4mm
• Weight: 180g
• Brand new and unused
• Torque: 13kg.cm
• max effective point: load 4.0kg.cm/235rpm/2.5W/0.58A
• Max power: load 7kg.cm/215rpm/3.1w/0.65A
• Stall current: 4.8A

Images

Wireless Controller kit

Package Included

Description of option:

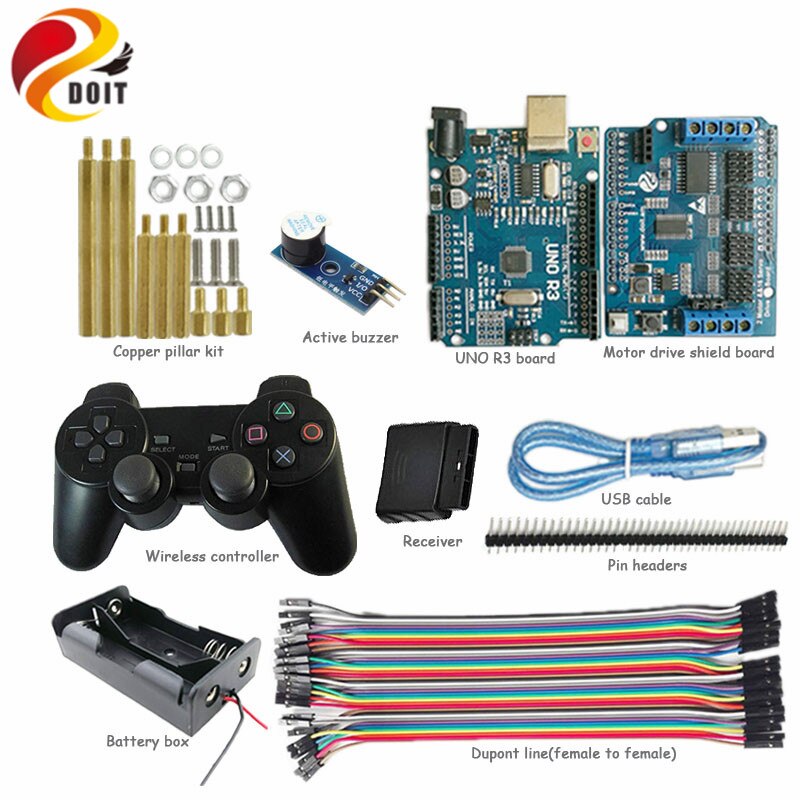

Only controller kit:

• 2-channel motor&16-channel servo shield board: 1pcs
• UNO board: 1pcs
• USB Cable: 1pcs
• Wireless controller: 1pcs
• Receiver: 1pcs
• Active buzzer: 1pcs
• Copper pillar kit: 1set
• Battery box: 1pcs
• Dupont line: 1pcs


Silver with 33 motor:

• silver mini T100 tank chassis: 1set(33 motor)
• controller kit: 1set

Silver with 12V motor:

• silver mini T100 tank chassis: 1set(12V motor)
• controller kit: 1set

Silver with 9V motor:

• silver mini T100 tank chassis: 1set(9V motor)
• controller kit: 1set

Golden with 33 motor:

• golden mini T100 tank chassis: 1set(33 motor)
• controller kit: 1set

Golden with 12V motor:

• golden mini T100 tank chassis: 1set(12V motor)
• controller kit: 1set

Golden with 9V motor:

• golden mini T100 tank chassis: 1set(9V motor)
• controller kit: 1set

Black with 33 motor:

• black mini T100 tank chassis: 1set(33 motor)
• controller kit: 1set

Black with 12V motor:

• black mini T100 tank chassis: 1set(12V motor)
• controller kit: 1set

Black with 9V motor:

• black mini T100 tank chassis: 1set(9V motor)
• controller kit: 1set
