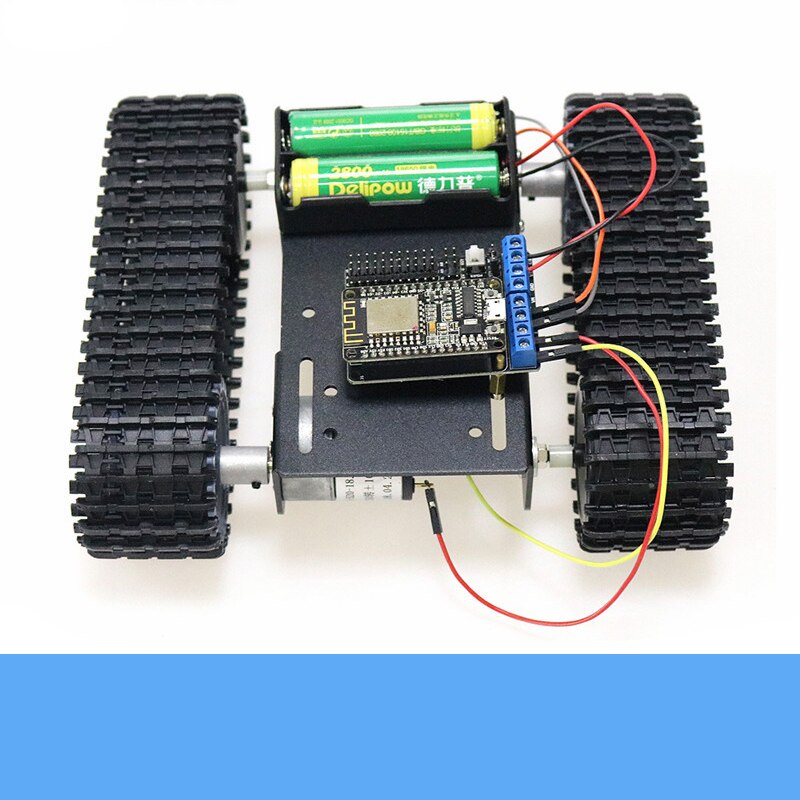

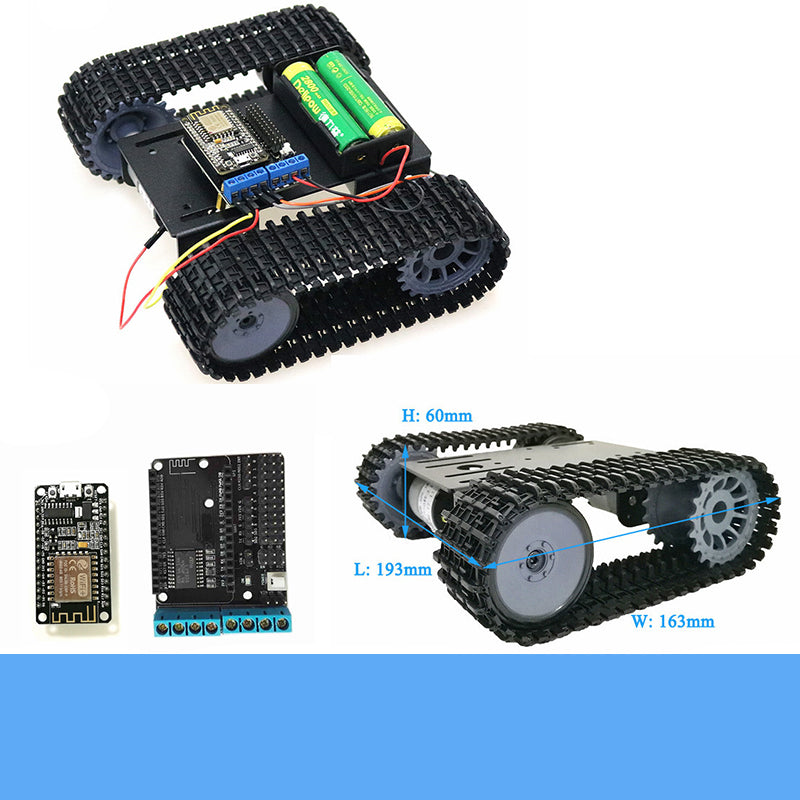

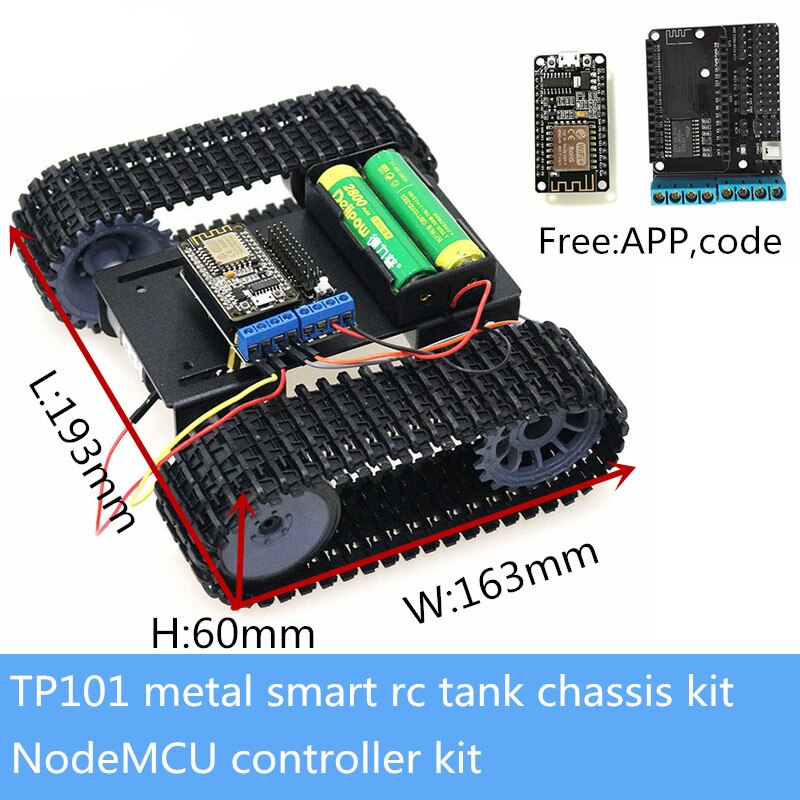

Wireless Wifi Controlled Smart RC Tank Chassis TP101 Metal Robotic + NodeMCU Controller Kit 12V DC Motor Toy DIY For Arduino

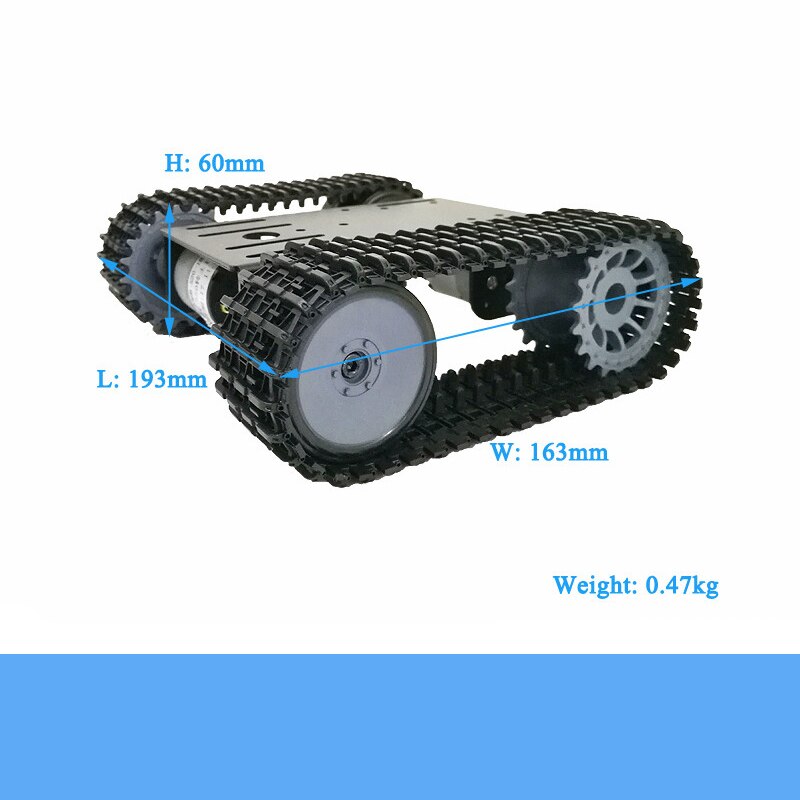

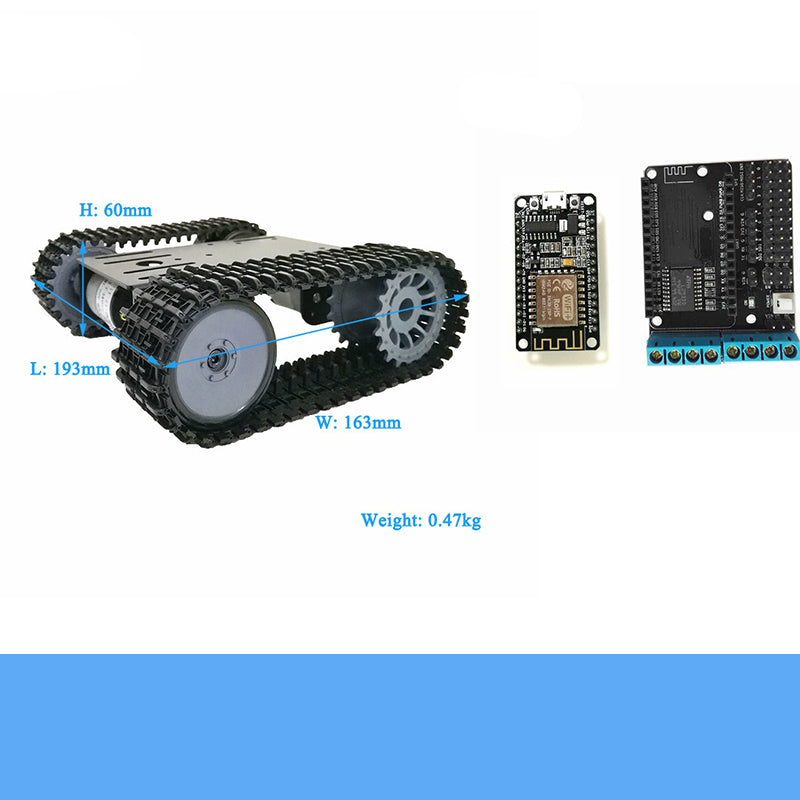

TP101 tank chassis parameters:

• Product model: TP101
• Product size: 193 * 163 * 60mm (length * width * height)
• Product net weight: 0.47kg
• Panel material: 2mm aluminum alloy
• Surface treatment: sandblasted oxidation
• Track: Engineering Plastics
• Wheel: Plastic
• Motor: 33GB-520

33GB-520 motor:

• Voltage range: 6V-12V
• No-load speed: 170-350RPM
• Rated voltage: DC12V
• No-load current: 100mA
• Weight: 100g

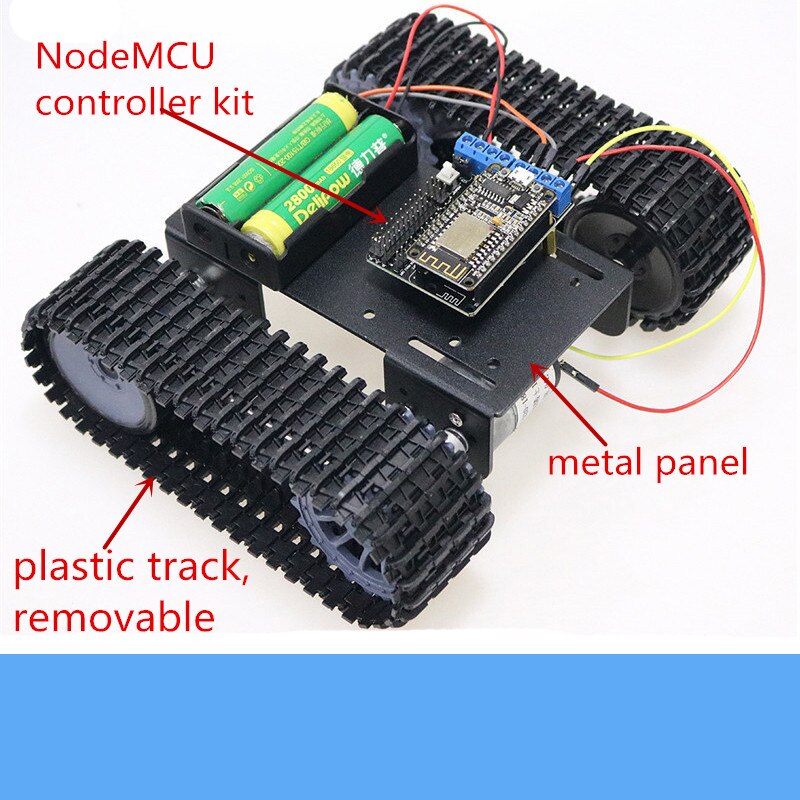

Nodemcu controller kit:

• Adopt new original CH341 chip
• Make the USB interface more secure;
• Complete documentation;
• each shipment board is rigorously tested (testing a board for 6-10 minutes), strictly control quality;

1. ESP12 DEV KIT development board expansion module;
2. Leads all function pins of ESP12 DEV KIT: SPI, UART, GPIO, AI and 3.3V power interface;
3. Expand two-way motor drive to directly drive two motors;
4. Onboard power switch;
5. Motor power supply range: 4.5V~36V;
6. Control power supply range: 4.5V~9V;
7. Motor power supply and control power supply are separated. In the experiment, VIN and VM can be short-circuited by short-circuit block combination, and the motor and control board can be supplied with power.

Shipping list:

• 1 × Black/Blue/Silver TP101 tank chassis kit
• 2 × 33GB-520 DC motor
• 1 × Nodemcu controller kit
• Free: Battery box, wrench, screw

Note:

• This product does not include a battery;
• In order to facilitate transportation, the product is not assembled.
• More documents can be downloaded at wiki.doit.am.
• If you need to install the manual, please leave your email after placing the order.
