ZMR250 250 Carbon Fiber F3 Acro Flight Controller RS2205 2300KV Motor 12A / 20A BLHeli-s / LittleBee 30A ESC for QAV250 RC Plane
Drone Spark
Regular price
$884.99
$2,064.99

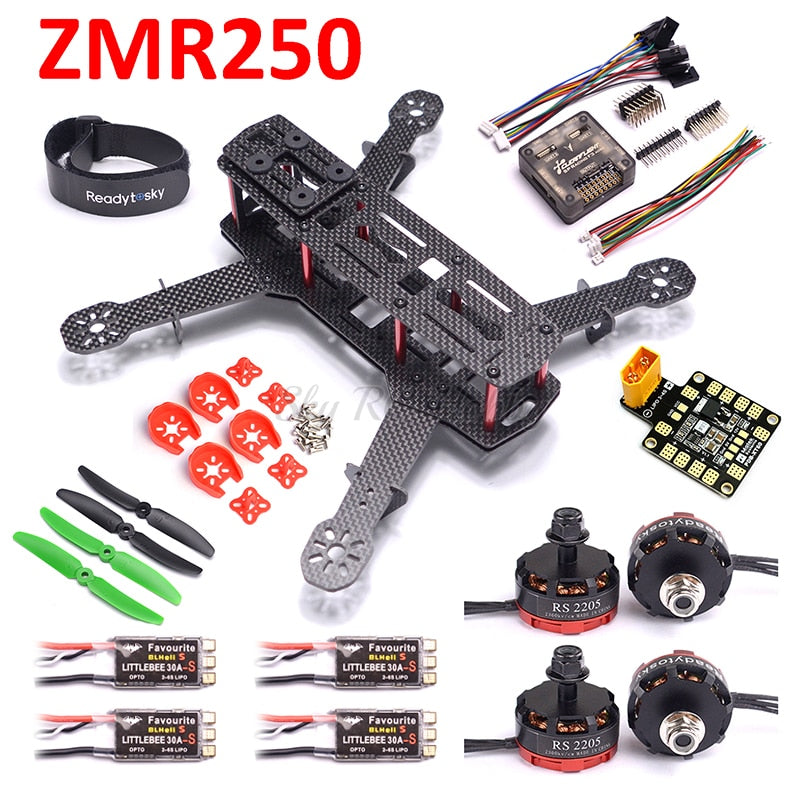

Package Included :
1 x ZMR250 Carbon fiber Frame kit
4 x RS2205 2300kv Motor
4 x Red Motor cover
4 x ESC ( Send it as your choice)
1 x F3 Acro Flight Controller
1 x Power Ditriibution Board
8 x 5030 propeller
1 x Battery Strap

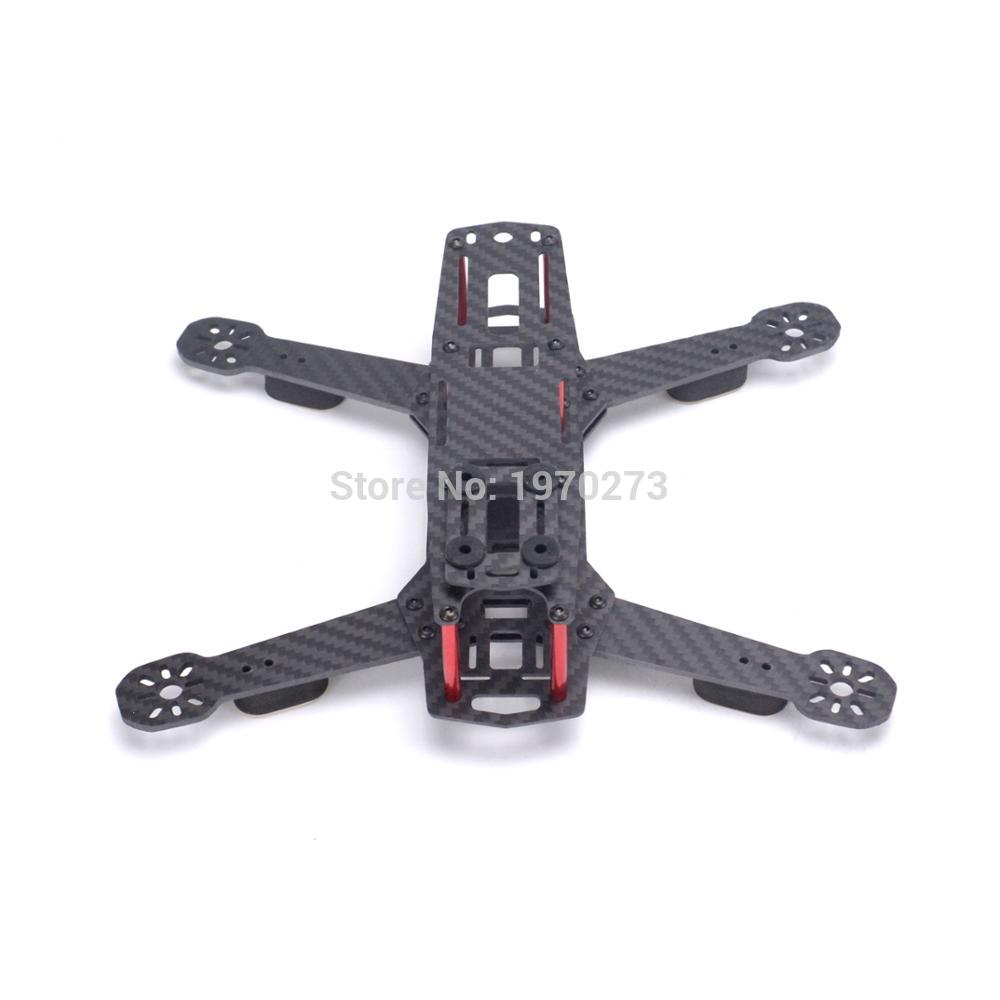

250mm Carbon Fiber Description:
1.5mm carbon fiber fuselage
Machine arm 3.0mm
Aluminum Jin Zhuzai
AV shockproof ball
FPV installed by edition
Screw
Specifications:
- Main material: Full carbon fiber
- With rubber damper to decrease vibration during flight
- Aluminum alloy spacer, light weight, reliable
- Wheelbase: 250mm
- Weight: 136g±2
Because of different production batch, the 2 kinds of design 250mm frame will be send at random.

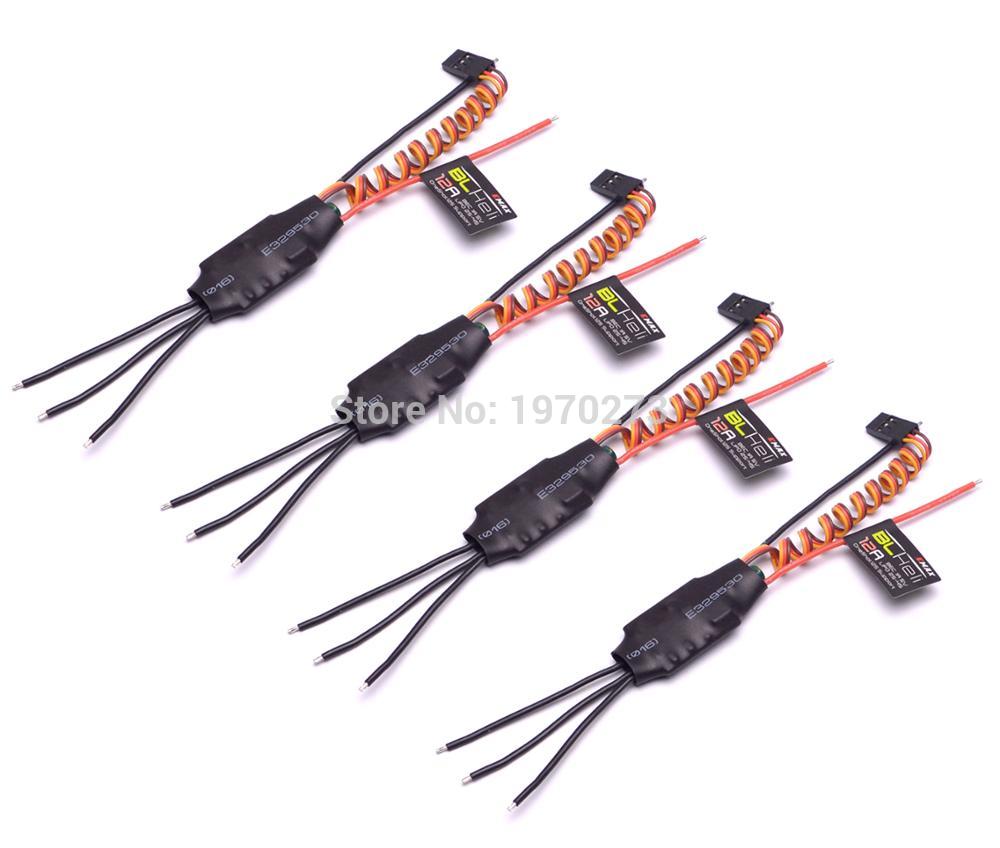

Emax BLHeli Series 12A ESC
Features:
- Rotation direction of the motor is programmable: normal, reverse or bidirectional
- All parameters can be programmed via using a program card or a transmitter, including default settings
- Multiple protection features including low voltage cut-off protection/over-heat protection/throttlesignal loss protection
- Alarm to help you find the devices: keep the throttle on FULL ON position for a while, the ESC will help
- Throttle range can be configured and is fully compatible with all receivers, providing smooth, linear and precise throttle response
Specifications:
- Continuous current: 12A
- Burst current: 15A@10S
- Lixx battery: 2-4S
- Dimension: 42*20*8mm
- BEC output: 1A 5V
- Weight: 11g wires included
- Programmable

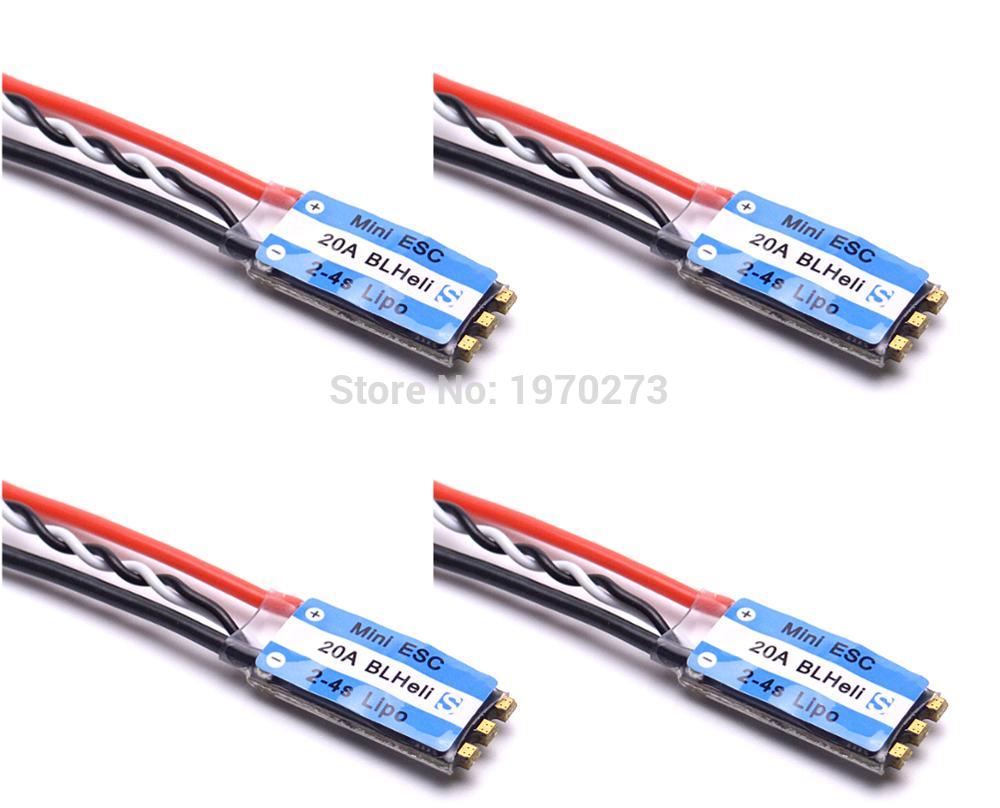

20A BLHeli-s ESC：
BLHELI-S 20A
Con.Current:20A
Peak Current(10s):25A
BEC:NO
Lipo:2-4s
Programming :YES
Weight:7.9g
Size(PCB):27*12mm

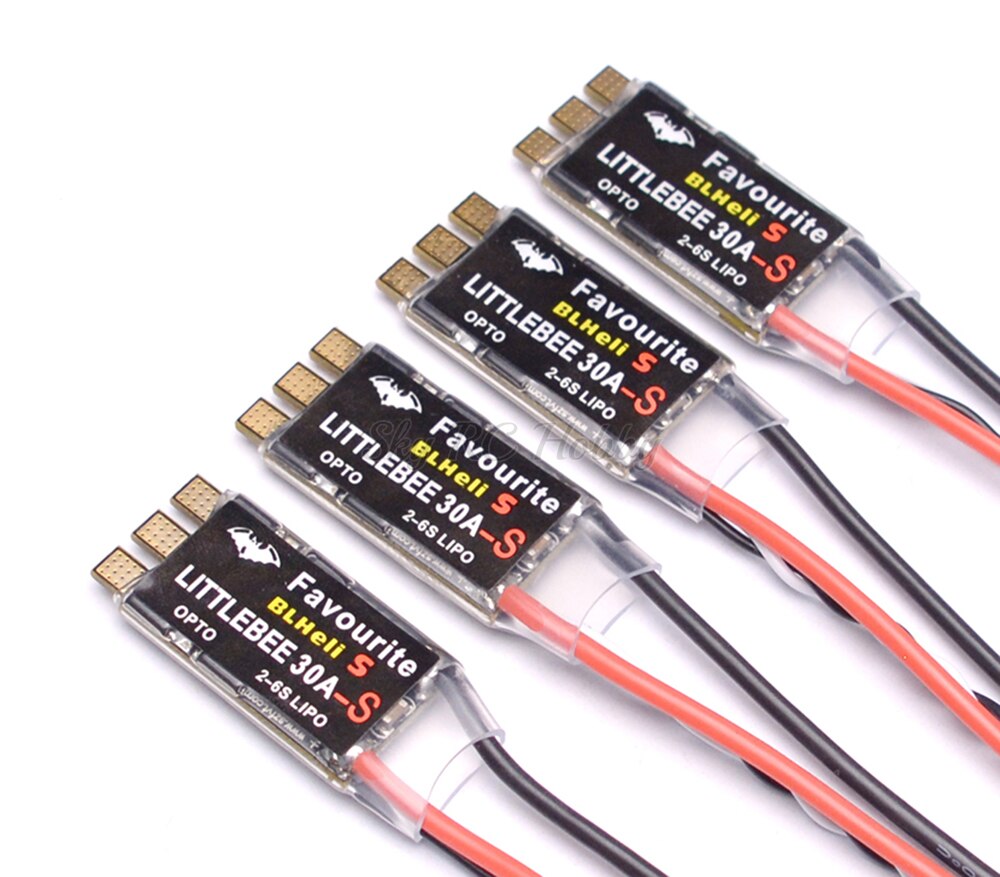

LittleBee 30A BLHeli_S OPTO ESC:
Item name: FVT LittleBee 30A-S ESC
Input Voltage: 2-6S Lipo
BEC Output: No
Continue Current: 30A, Burst Current: 35A up to 10S
Size: 35*17mm
Weight: 9g(include Power and signal wire)
Support Damped mode, Oneshot125, Oneshot42 and Multshot
Main IC: SILABS EFM8BB21F16, MCU run 48MHz
MOS: Both low and high side fets are Nfets
Switching speed is very fast, it has dedicated driver chip
BLHeli_S Bootloader & Firmware

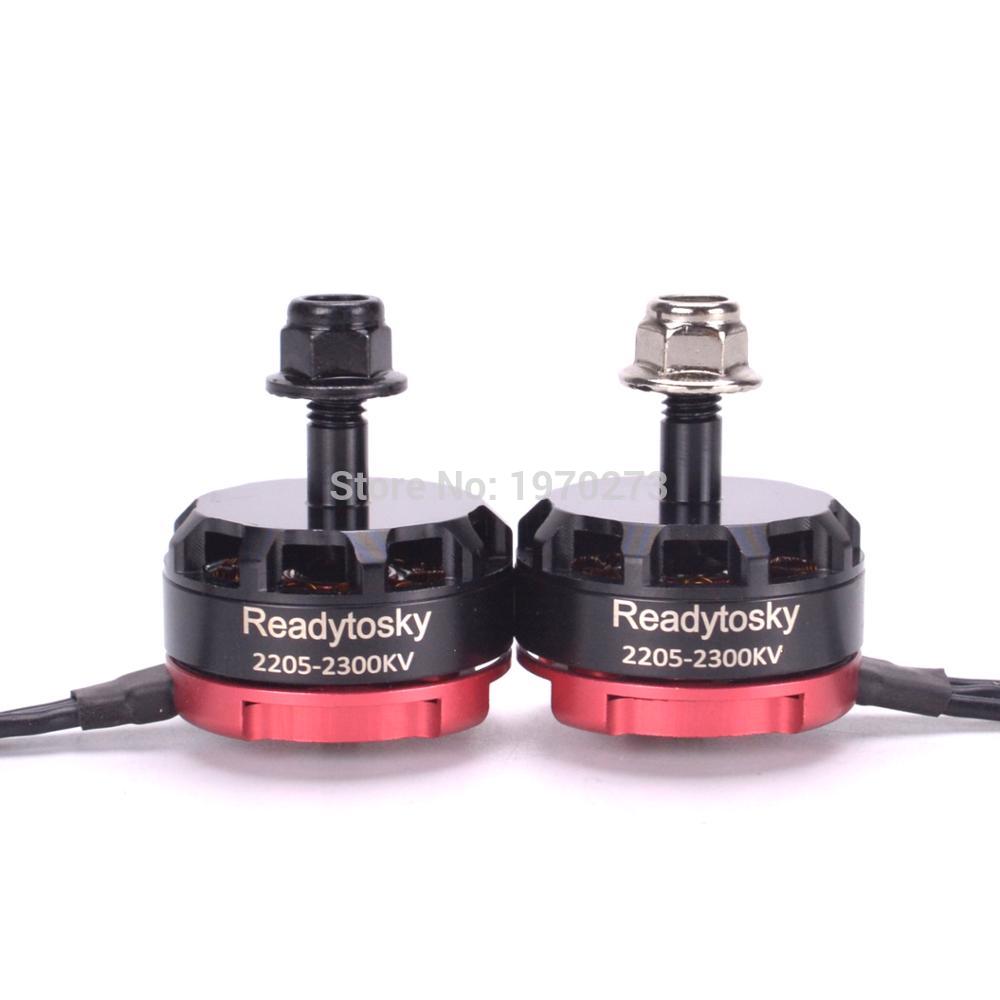

RS2205 2300kv motor :
Brands:Ready to sky
Model: RS2205-2300
Framework: 12N14P
No. of Cells: 3 - 4S
Color: Red
Length: 31.7mm
Shaft: M5
KV: 2300
Max Thrust: 1024g
Diameter: 27.9mm
Propeller Suggested: HQ 5045 BN
Weight: 30g
Features:
1. Race Spec Performances
2. High Strength N52 Neodyum Magnets
3. Active Cooling Fins Greatly Reduce Motor Temeratures
4. Low CG, Light Weight Design
5. Japanese Bearing For Performances
6. Enchance Anti Off U Ring For Safety & Stablility
7. Dual Lock CW / CCW Locknuts
Note : Due to different production batch, there are two kinds of motor design, we will send the motor at random.
